Buy Conrad Components 616726 Relay card Assembly kit 12 V DC

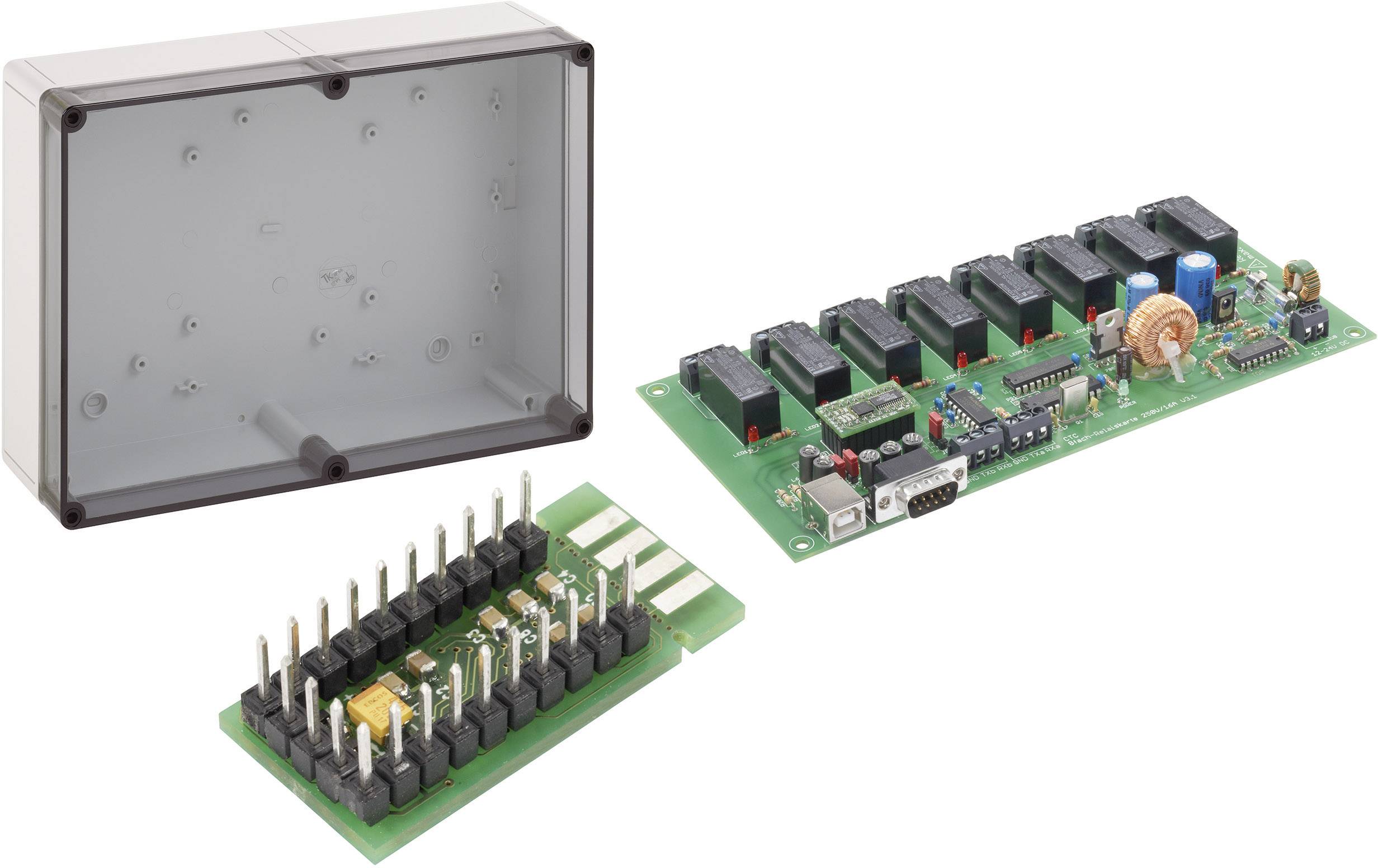

Electronics case opened, revealing a circuit board with resistors, capacitors, and chips. On the left, an empty case shell.

Conrad Components 616726 Relay card Assembly kit 12 V DC-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Set 8-fold relay card 230 V/AC 16 A + USB to RS232 adapter board + TK plastic housing

Cascading of up to 255 cards
Adapter board converts RS232-/TTL level to USB
Housing made of impact polystirene

Technical specifications

Current consumption: max. 300 mA

Output rating: Contact load carrying capacity 16 A / 230 V/AC

Version: Assembly kit

Inputs / outputs: 8 relay outputs

No. of relay outputs: 8

Features: Incl. adapter card

Relay current: 16 A

Operating voltage: 12 V DC

Product type: Relay card

Documents & Downloads

Datasheet

Datasheet 616726 Conrad Components 616726 Relay card Assembly kit 12 V DC

User & Safety Instructions

User & Safety Instructions 616726 Conrad Components 616726 Relay card Assembly kit 12 V DC

Information

Information 616726 Conrad Components 616726 Relay card Assembly kit 12 V DC

Circuit diagramm

Circuit diagramm 616726 Conrad Components 616726 Relay card Assembly kit 12 V DC

Conformity certificate

Conformity certificate 616726 Conrad Components 616726 Relay card Assembly kit 12 V DC

Download

Download 616726 Conrad Components 616726 Relay card Assembly kit 12 V DC

Description

This text is machine translated.

Relay card for switching loads via RS232 or with the USB-connection of a computer. For extending the relay switching outputs up to 255 relay cards can be operated at only one interface.

This product serves to connect a device with an RS232/UART interface to a USB port (USB1.1 or USB2.0). The converter can convert interfaces with RS232 level, TTL level (5 V) and 3.3 Volt level to USB. The circuit board of the converter is soldered in directly or via a socket strip.

The TK Series - HP has the high degree of protection IP 66, sealable, and comes standard with either smooth sides or refer to metric knockouts. No subsequent drilling or milling - simply eject knockouts with a screw driver and install the screws For individual holes with smooth sidewalls can easily edit the material. The cases are resistant to scratches. They are characterized by high flexibility, eg through the mounting of accessories as well as the many opportunities in Kasteninneren, the adjusted standard rails and mounting plates. The covers are optionally available in Gray or Transparent. The wall mounting options in the box below the ground and cover screws round out the variety of possible applications.
