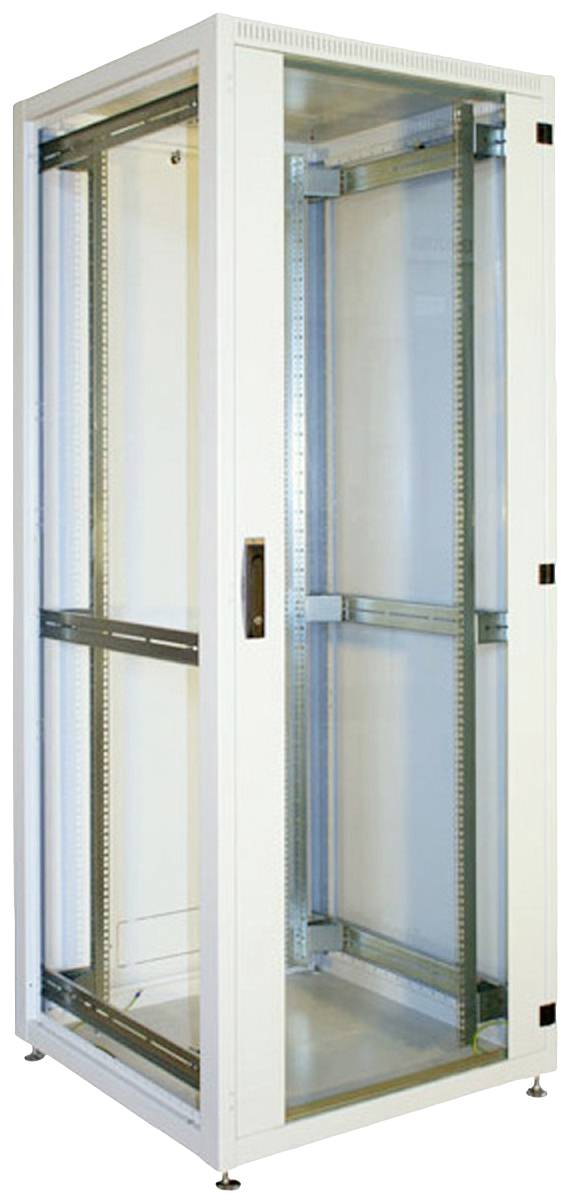

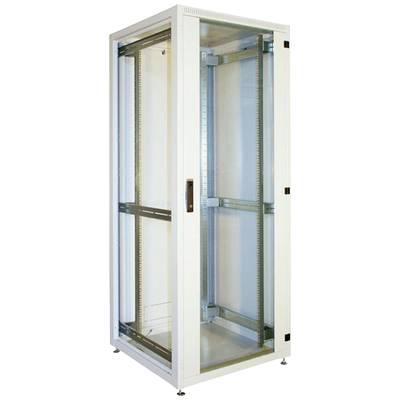

Conteg 19" server rack cabinet (W x H x D) 800 x 1044 x 800 mm 21 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Technical specifications
- Product type
19" server rack cabinet
- Rack unit
21 U
- Width
800 mm
- Height
1044 mm
- Depth
800 mm
- Material
Steel plate
- Dim
(W x H x D) 800 x 1044 x 800 mm
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131101 Conteg 19" server rack cabinet (W x H x D) 800 x 1044 x 800 mm 21 U Grey-white (RAL 7035)
Description
The ISEVEN is designed to provide the user with a balance between price, benefit, value and quality.
This product is the ideal choice for installers and users who do not want to spend time with the complex selection of model types and endless options. After careful consideration and based on the experience of our customers, a portfolio was created with the most common types and types.
The ISEVEN was developed for use in network environments, telecommunications and EDP distribution rooms, where no special requirements are made for e.g. high load bearing loads and/or special door variants. The number of options is balanced with price and availability.
Height 21 HE / Width 600 mm / Depth 600 mm
Carry load: 300 kg
IP protection class IP30
Colour RAL 7035
Configuration standard:
2 pair of 19" rails (front/back)
Safety glass door (according to EN 12150-1) with pivot lever and lock
Rear wall with cable feeder and lock
Side walls with lock
Stable, adjustable pedestal
All cabinet parts grounded + central grounding connection in the cabinet floor
28-way mounting screw set
This text is machine translated.
This product is the ideal choice for installers and users who do not want to spend time with the complex selection of model types and endless options. After careful consideration and based on the experience of our customers, a portfolio was created with the most common types and types.
The ISEVEN was developed for use in network environments, telecommunications and EDP distribution rooms, where no special requirements are made for e.g. high load bearing loads and/or special door variants. The number of options is balanced with price and availability.
Height 21 HE / Width 600 mm / Depth 600 mm
Carry load: 300 kg
IP protection class IP30
Colour RAL 7035
Configuration standard:
2 pair of 19" rails (front/back)
Safety glass door (according to EN 12150-1) with pivot lever and lock
Rear wall with cable feeder and lock
Side walls with lock
Stable, adjustable pedestal
All cabinet parts grounded + central grounding connection in the cabinet floor
28-way mounting screw set
This text is machine translated.
