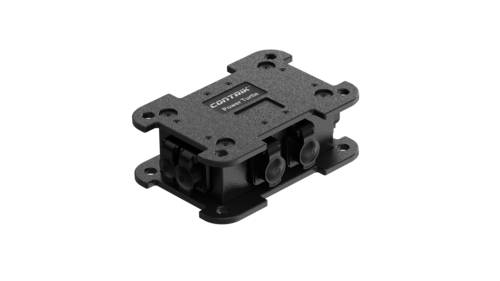

Contrik 1027451 1-piece Socket splitter Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Power throttle extreme outdoor IP65
- IN:1x PowerCon True1
- OUT: 7x Powercon True1
Technical specifications
- Breakdown voltage: 0.5 kV/mm
- Number of electrical contacts 2 + PE
- Phases: Single phase
- Conductor cross-section: 2.5 mm²
- Attachment options: Cross-beam clamp, fixing holes for unplugging or hanging
- Stackable design
- Casing: Easylen
- Standards compatibility UL94-V2
- Temperature range -25°C to +70°C.
- Product type
Socket splitter
- Nominal voltage (details)
250 V AC
- Nominal current (details)
16 A
IP65
Protection class II
- Factory colour
Black
- Weight
1.18 kg
- Dim
(L x W x H) 150 x 220 x 85 mm
- Length
150 mm
- Width
220 mm
- Height
85 mm
Documents & Downloads
Datasheet
Datasheet 3190069 Contrik 1027451 1-piece Socket splitter Black
User & Safety Instructions
User & Safety Instructions 3190069 Contrik 1027451 1-piece Socket splitter Black
Description
Power turtle Xtreme outdoor (XO) is a compact distribution solution for mobile outdoor applications. The robust EASYLEN® housing is Ideal suitable for outdoor use and demanding applications under harsh conditions.
This text is machine translated.
This text is machine translated.
Features
- Extremely robust EASYLEN® casing (high IK) with leather grain texture
- Highly reliable Neutrik® powerCON® TRUE1® TOP connectors for in, out and daisy chaining
- Flame resistant (UL94-V2) and non-conductive casing material
- High outdoor protection (IP65)
- Additional connector protection by positioning Neutrik® powerCON® TRUE1® TOP and protruding housing plates
- Low weight, compact and stackable housing design
- Versatile mounting options
