Contrik 1028847 1-piece Socket splitter Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 402.52 / piece)
€ 402.52
plus VAT.
14-day return policy included
Highlights & Details

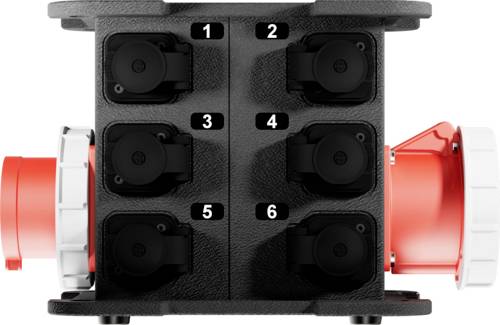

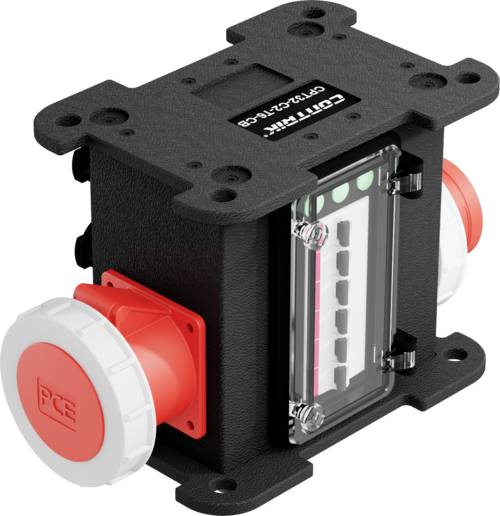

Power distribution turtle
- IN:1X CEE 32A
- OUT: 6x Powercon True1
- 6x fuses
Technical specifications
- Input 1x CEE32A red
- Daisy-chaining: 1x CEE32A red with self-closing caps
- Output: 6x powerCON® TRUE1® TOP with self-closing caps

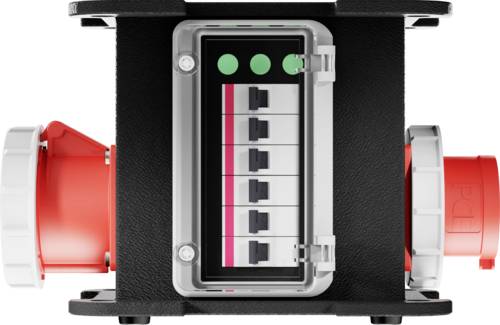

- Circuit protection 6x MCB (1-pin)
- Phase control display L1, L2, L3, green
- Breakdown voltage: 0.5 kV/mm
- Number of electrical contacts 4 + PE
- Phases: Three-phase
- Wire cross-section OUT: 2.08mm²
- Concatenation: 6mm²
- Attachment options: Cross-beam clamp (M10), fixing holes for unplugging or hanging
- Stackable design
- Casing: Easylen
- Flammability according to UL 94 V-2
- Temperature range -25°C to +40°C.
- Product type
Socket splitter
- Nominal voltage (details)
415 V AC
- Nominal current (details)
16 A
Protection class II
- Factory colour
Black
- Weight
3.3 kg
- Dim
(L x W x H) 155 x 225 x 188 mm
- Length
155 mm
- Width
225 mm
- Height
188 mm
Documents & Downloads
Datasheet
Datasheet 3190064 Contrik 1028847 1-piece Socket splitter Black
User & Safety Instructions
User & Safety Instructions 3190064 Contrik 1028847 1-piece Socket splitter Black
Description
Power Turtle Active is a robust, compact distribution box with separate overload protection (MCB) for each output and the popular CEE32A port for input and daisy-chain. It is Ideal suitable for outdoor use and demanding mobile applications. 1x CEE32A In - 6x powerCON® TRUE1® TOP Out, 6x MCB time relays.
This text is machine translated.
This text is machine translated.
Features
- High performance capacity thanks to the CEE32A plug
- Circuit protection against overload for each of the 6x outs with separate MCB
- High resistance & protection: Robust Easylen® housing with Hohem IK, high IP with CEE plug in the plugged state, self-closing caps, flame retardant & non-conductive housing material
- Easy transport and handling: Stackable with other Power turtles, light, fully lockable
- Versatile mounting options: Peg, suspension, traverse clamp
