Contrik 1028858 1-piece Socket splitter Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
14-day return policy included
Highlights & Details
Power distribution turtle
- IN: 1x Socapex 419
- OUT: 6x Powercon True1
Technical specifications

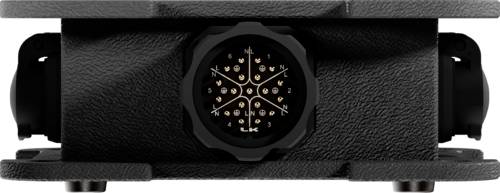

- Input: 1x Socapex 419 compatible (6 channels)

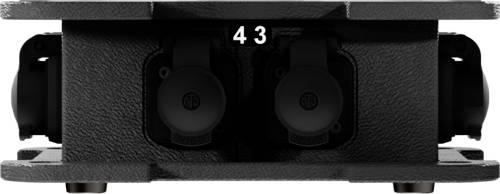

- Output: 6x powerCON® TRUE1® TOP with self-closing caps
- Daisy-Chaining: PowerCON® TRUE1® TOP with self-closing caps
- Breakdown voltage: 0.5 kV/mm
- Number of electrical contacts 2 + PE
- Phases: Single phase
- Wire cross-section: 2.08mm²
- Attachment options: Cross-beam clamp (M10), fixing holes for unplugging or hanging
- Stackable design
- Casing: Easylen
- Flammability according to UL 94 V-2
- Temperature range -25°C to +40°C.
- Product type
Socket splitter
- Nominal voltage (details)
250 V AC
- Nominal current (details)
16 A
IP65
Protection class II
- Factory colour
Black
- Weight
1.4 kg
- Dim
(L x W x H) 166 x 225 x 87 mm
- Length
166 mm
- Width
225 mm
- Height
87 mm
Documents & Downloads
Datasheet
Datasheet 3190065 Contrik 1028858 1-piece Socket splitter Black
User & Safety Instructions
User & Safety Instructions 3190065 Contrik 1028858 1-piece Socket splitter Black
Description

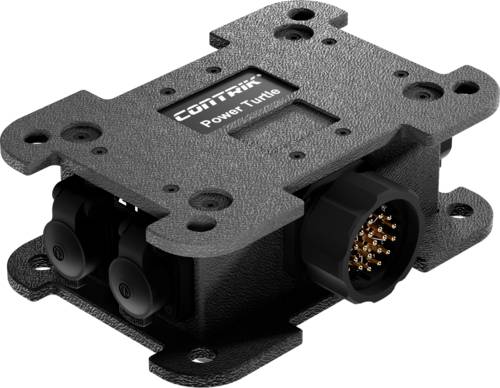

Power Turtle Multicore are extremely robust, compact distribution boxes, which enable a significant reduction of the cable volume, the effort and the costs through the multi-core input. They are Ideal suitable for outdoor use and demanding mobile applications.
This text is machine translated.
This text is machine translated.
Features
- Reduction of the cable expenditure by Socapex 419 compatible multi-pin plug
- High durability and protection: Robust Easylen® housing with Hohem IK, IP65 with Socapex 419 plugged in state, self-closing caps, side plug arrangement, flame resistant & non-conductive housing material
- Very compact Design: Flat built, lateral plug arrangement, applications with limited space
- Simple transport & handling: Stackable with other Power turtles, light, fully lockable
- Various fixing options: Herrings, suspension, traverse clamps
