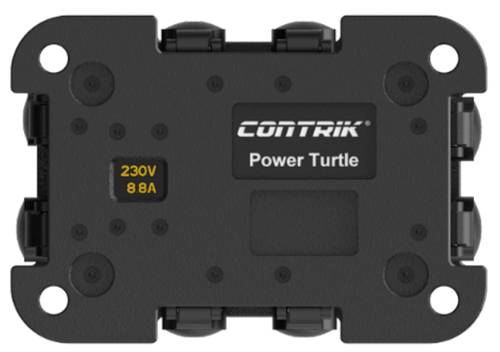

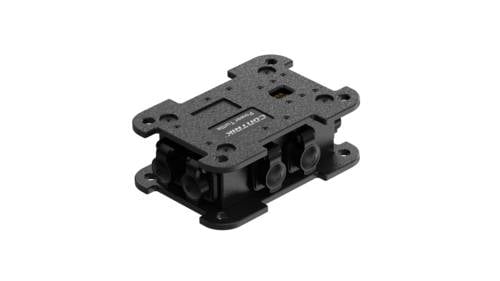

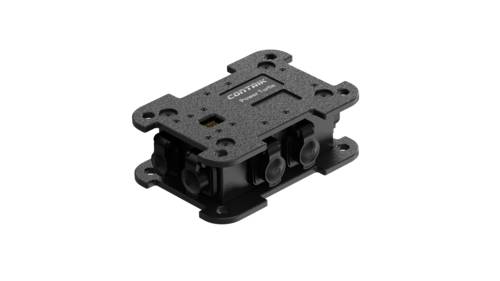

Contrik 1029197 1-piece Socket splitter Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
14-day return policy included
Highlights & Details
Power throttle extreme outdoor IP65
- IN:1x PowerCon True1
- OUT: 7x Powercon True1
Technical specifications
- Input device: 1x powerCON® TRUE1® TOP with self-closing caps
- Output device: 7x powerCON® TRUE1® TOP with self-closing caps
- Daisy-Chaining: 1x powerCON® TRUE1® TOP with self-closing caps
- Di-electric strength: > 0.5 kV/mm
- Number of electrical contacts 2 + PE
- Phases: Single phase
- Conductor cross-section: 2.5 mm²
- Attachment options: Cross-beam clamp, fixing holes for unplugging or hanging
- Type of construction: Stackable
- Casing: Easylen
- Compatibility with standards UL94-V2
- Temperature range: -25 °C to +50 °C
- Product type
Socket splitter
- Nominal voltage (details)
250 V AC
- Nominal current (details)
16 A
IP65
Protection class II
- Factory colour
Black
- Weight
1.3 kg
- Dim
(L x W x H) 150 x 220 x 85 mm
- Length
150 mm
- Width
220 mm
- Height
85 mm
Documents & Downloads
Datasheet
Datasheet 3190073 Contrik 1029197 1-piece Socket splitter Black
User & Safety Instructions
User & Safety Instructions 3190073 Contrik 1029197 1-piece Socket splitter Black
Description
Power Turtle Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications where a power meter is required. The robust EASYLEN® housing is Ideal suitable for outdoor use and demanding applications under harsh conditions. 1x powerCON® TRUE1® TOP In and 7x powerCON® TRUE1® TOP Out.
This text is machine translated.
This text is machine translated.
Features
- Extremely robust EASYLEN® casing (high IK) with leather grain texture
- Highly reliable Neutrik® powerCON® TRUE1® TOP connectors for in, out and daisy chaining
- Flame resistant (UL94-V2) and non-conductive casing material
- High outdoor protection (IP65)
- Additional connector protection by positioning Neutrik® powerCON® TRUE1® TOP and protruding housing plates
- Counter with protected and illuminated voltage and power consumption display
- Low weight, compact and stackable housing design
- Versatile mounting options
