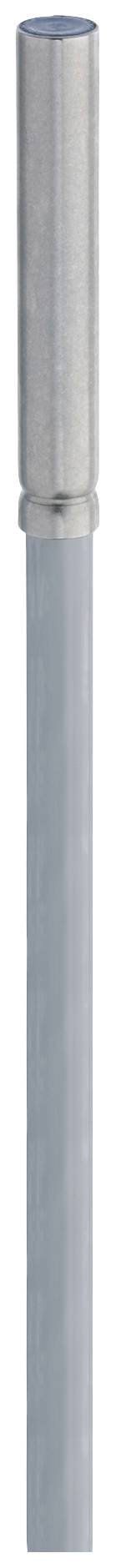

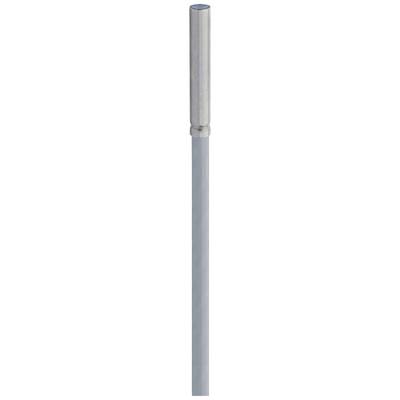

Contrinex Sensor Inductive 4 mm shielded NAMUR DW-AD-605-04
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
9 V
Outputs
NAMUR
Switching distance (max.)
0.8 mm
Model
Inductive
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sensor
- Type
DW-AD-605-04
- Min. operating voltage
7.7 V
- Max. operating voltage
9 V
- Operating voltage
7.7 - 9 V
- Outputs
NAMUR
- Cable length
2 m
- Switching distance (max.)
0.8 mm
- Switching frequency
10000 Hz
- Model
Inductive
- Connector
Cable, open end
- Installation type
shielded
- Size
4 mm
- Enclosure material
Stainless steel V2A
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Height
25 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2875327 Contrinex Sensor Inductive 4 mm shielded NAMUR DW-AD-605-04
Datasheet 2875327 Contrinex Sensor Inductive 4 mm shielded NAMUR DW-AD-605-04
Datasheet 2875327 Contrinex Sensor Inductive 4 mm shielded NAMUR DW-AD-605-04
User & Safety Instructions
User & Safety Instructions 2875327 Contrinex Sensor Inductive 4 mm shielded NAMUR DW-AD-605-04
Description
Inductive sensor DW-AD-605-04
