Coolant tester testo 560i
EAN:
Part number:
Item no:
Number
Total (€ 289.92 / piece)
€ 289.92
plus VAT.
Only 4 Piece(s) available
Highlights & Details

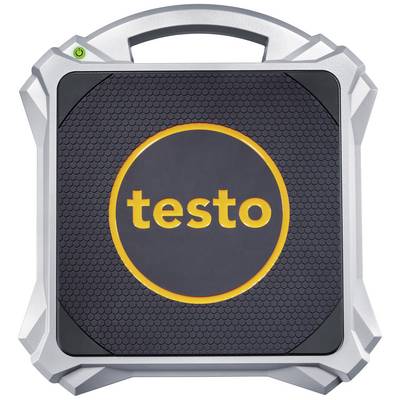

Testo 560i - Digital refrigerant scales with Bluetooth
- Wireless digital refrigerant scales Testo 560i for easy measurement of the refrigerant weightOperation with Testo manifold and Testo Smart APP via BluetoothAutomatic and precise refrigerant filling according to target value with intelligent valve (sold separately)High precision measurementsCompact housing with splash-water and dust protection, low weight and convenient carrying handle
Technical specifications
- Accuracy: ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg)Accuracy: ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)Resolution 0.01 kgOperating temperature -10 to +50 °C.
- Product type
Coolant tester
- Reading range
1000 g (max)
- Weight
4.36 kg
- Reading range (max.)
1000 g
- Width
287 mm
- Height
58 mm
- Length
310 mm
IP44
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2576369 Coolant tester testo 560i
Conformity certificate
Conformity certificate 2576369 Coolant tester testo 560i
Description
The world first of Testo the wireless digital refrigerant scale Testo 560i. The measurement of the refrigerant weight is controlled via Bluetooth by the Testo manifold and the Testo Smart APP for smartphone and tablet. And together with the separately available intelligent valve, filling refrigeration systems and heat pumps is revolutionary. The scale and valve enable the automatic and precise filling according to target value thanks to patented technology. In addition, high measuring accuracy, high and stable Bluetooth range, compact and robust housing with low weight and long battery life make the scales a reliable and practical companion.
This text is machine translated.
This text is machine translated.
Features
- Automatic and precise refrigerant filling after target overheating, undercooling and weight (only in conjunction with intelligent valve sold separately)All measured values at a glance with storage of the measured data in the Testo Smart APPHigh measuring accuracy with resolution 10 g.Maximum load of 100 kg for all common refrigerant containersHigh Bluetooth range of up to 150 m together with a Testo manifoldHigh robustness due to dust and splash-water protection (IP44)Particularly handy thanks to compact housing, low weight, practical carrying handle and stable shoulder bagLong battery life of up to 70 hours thanks to changeable AA batteries and auto power-off functionHigh flexibility in outdoor use at temperatures from -10 to 50° C.
Scope of delivery
- Testo 560i ScaleShoulder bagUser manual
- 4x AA battery
System requirements
- Testo Smart APP requires: Android 6 or higher / iOS 11 or higher
