Coolant tester testo 560i Set
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 432.77 / piece)
€ 432.77
plus VAT.
14-day return policy included
Highlights & Details
Testo 560i Set - Digital refrigerant balance with Bluetooth incl. intelligent valve
- Testo 560i digital refrigerant scales with intelligent valve for automatic filling according to target valueControl via Bluetooth connection to Testo manifold and Testo Smart APPHigh precision measurementsCompact housing with splash-water and dust protection, low weight and convenient carrying handle
Technical specifications
- Accuracy: ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg)Accuracy: ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)Resolution 0.01 kgOperating temperature -10 to +50 °C.
- Product type
Coolant tester
- Reading range
1000 g (max)
- Reading range (max.)
1000 g
- Width
287 mm
- Height
58 mm
- Length
310 mm
IP44
IP54
Documents & Downloads
Datasheet
Datasheet 2576368 Coolant tester testo 560i Set
User & Safety Instructions
User & Safety Instructions 2576368 Coolant tester testo 560i Set
Conformity certificate
Conformity certificate 2576368 Coolant tester testo 560i Set
Description
The automatic filling system consisting of digital refrigerant scale Testo 560i and intelligent valve. This makes filling refrigeration systems and heat pumps revolutionary easy. The scales and intelligent valve enable the automatic and precise filling according to target value thanks to patented technology. And they work in a team with the Testo manifold and the Testo Smart APP for smartphone and tablet. Automatic and precise refrigerant filling after target overheating, undercooling and weight. Wireless connection and operation with Testo manifold and Testo Smart APP via Bluetooth. All measured values for filling history at a glance with storage of the measured data in the Testo Smart APP.
This text is machine translated.
This text is machine translated.
Features
- Refrigerant scales Testo 560iHigh measuring accuracy with resolution 10 g.Maximum load of 100 kg for all common refrigerant containersHigh Bluetooth range of up to 150 m together with a Testo manifoldHigh robustness due to dust and splash-water protection (IP44)3D corners for accurate positioning of the refrigerant container as well as structured rubber surface for stable holdLong battery life of up to 70 hours thanks to changeable AA batteries and auto power-off functionHigh flexibility in outdoor use at temperatures from -10 to 50° C.Refrigerant valveVery practical thanks to sturdy hooksParticularly robust thanks to IP54Long battery life of over 60 hours and changeable 9 V block battery
Scope of delivery

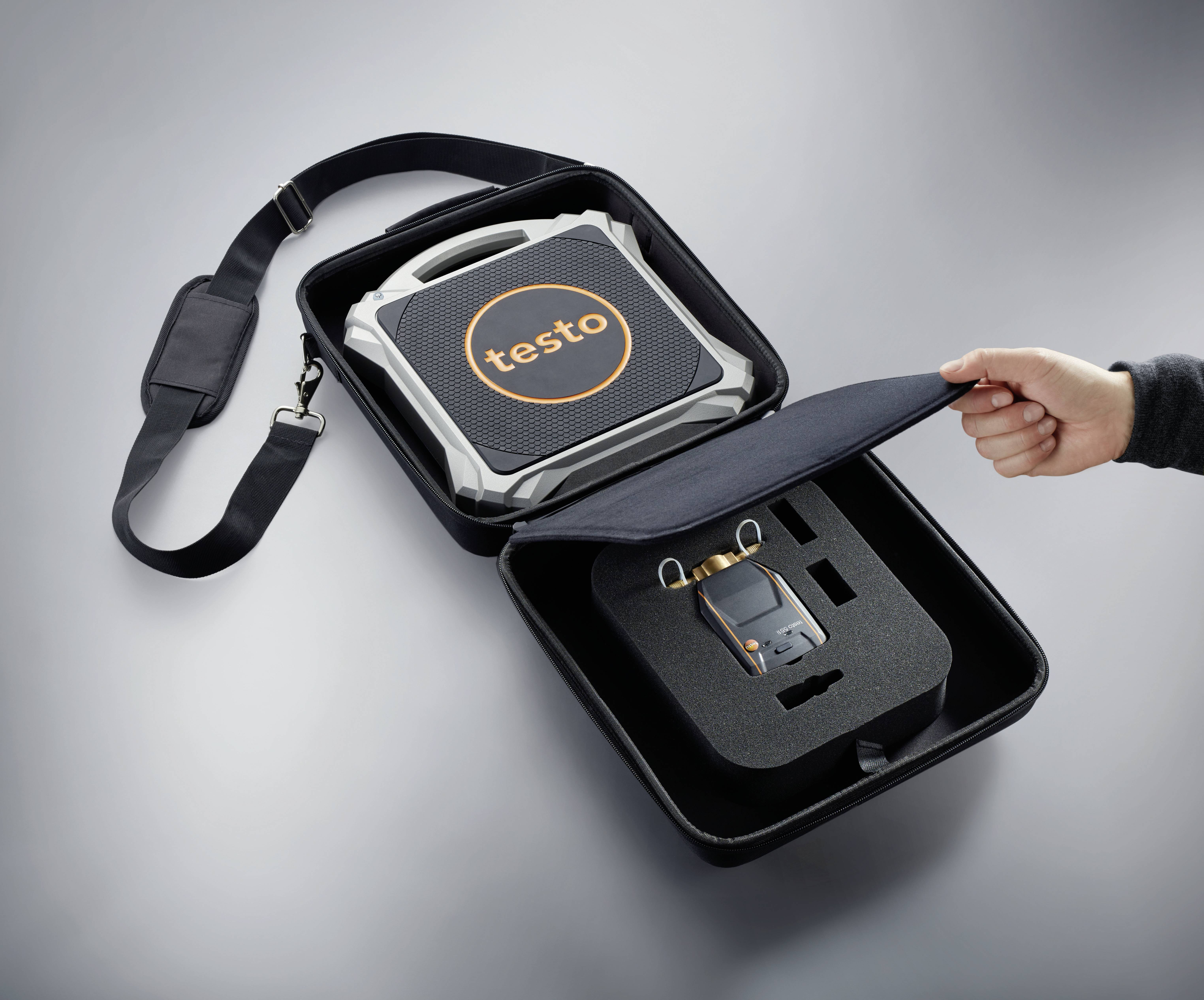

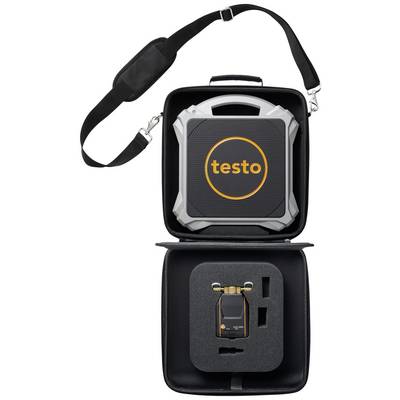

- Testo 560i ScaleIntelligent valveShoulder bagUser manual
- 4x AA battery
- 1x 9 V battery
System requirements
- Testo Smart APP requires: Android 6 or higher / iOS 11 or higher
