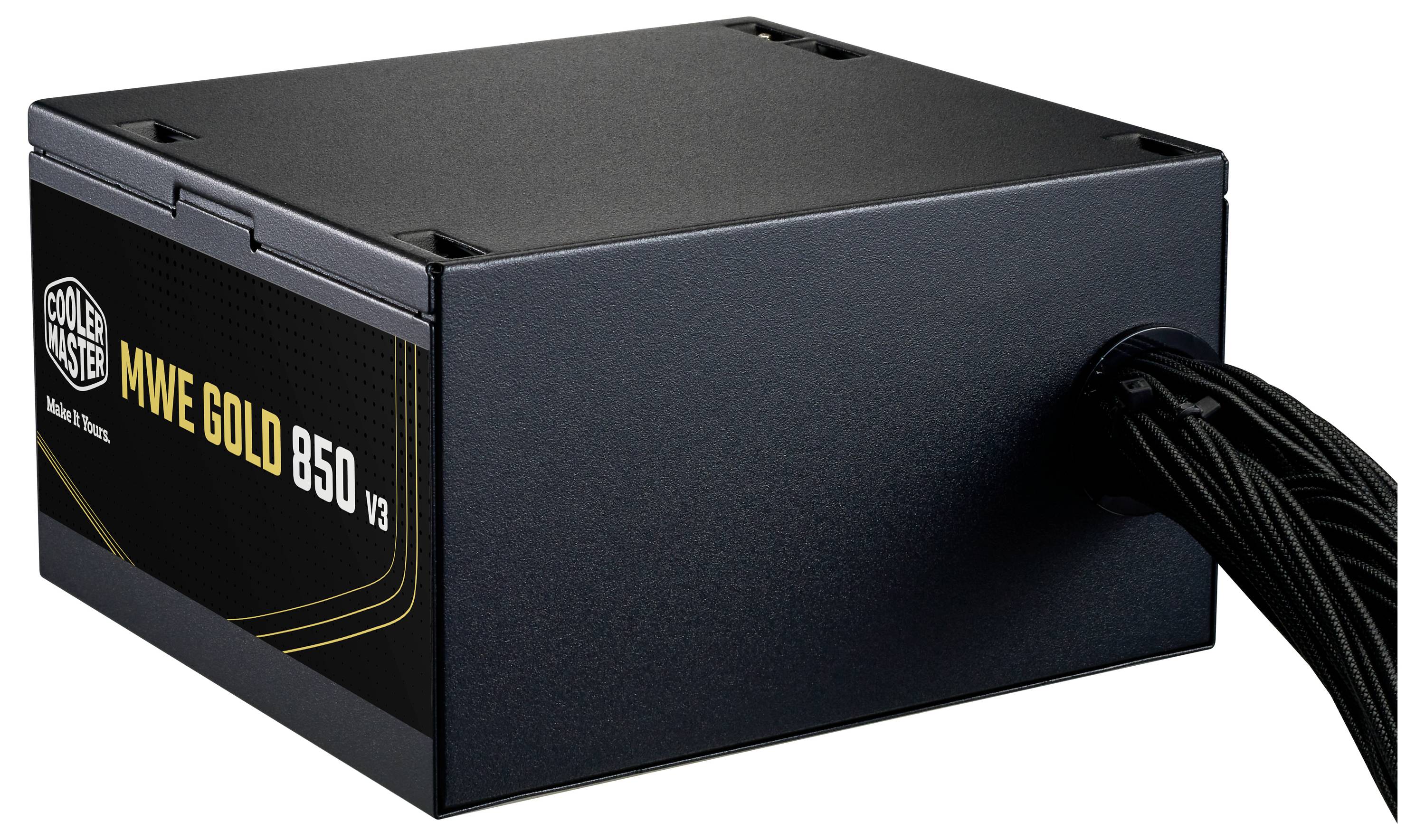

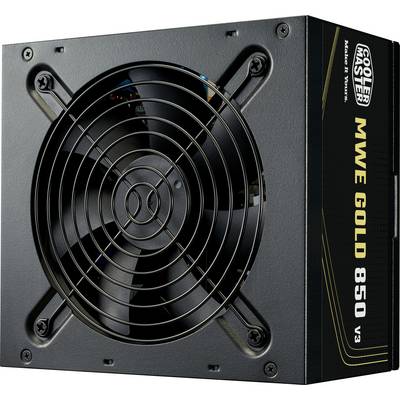

Cooler Master MPE-8506-ACAG-BEU PC power supply unit 850 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W
Modular
No
Certification
80 PLUS Gold
Form factor
ATX
Highlights & Details
Cooler Master MPE-8506-ACAG-BEU PC power supply unit
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 4x
- Cable management No
- 80 PLUS Gold
Technical specifications
- Power good signal Delay range 100 - 150 ms
- 80 Plus Certification 80 PLUS Gold

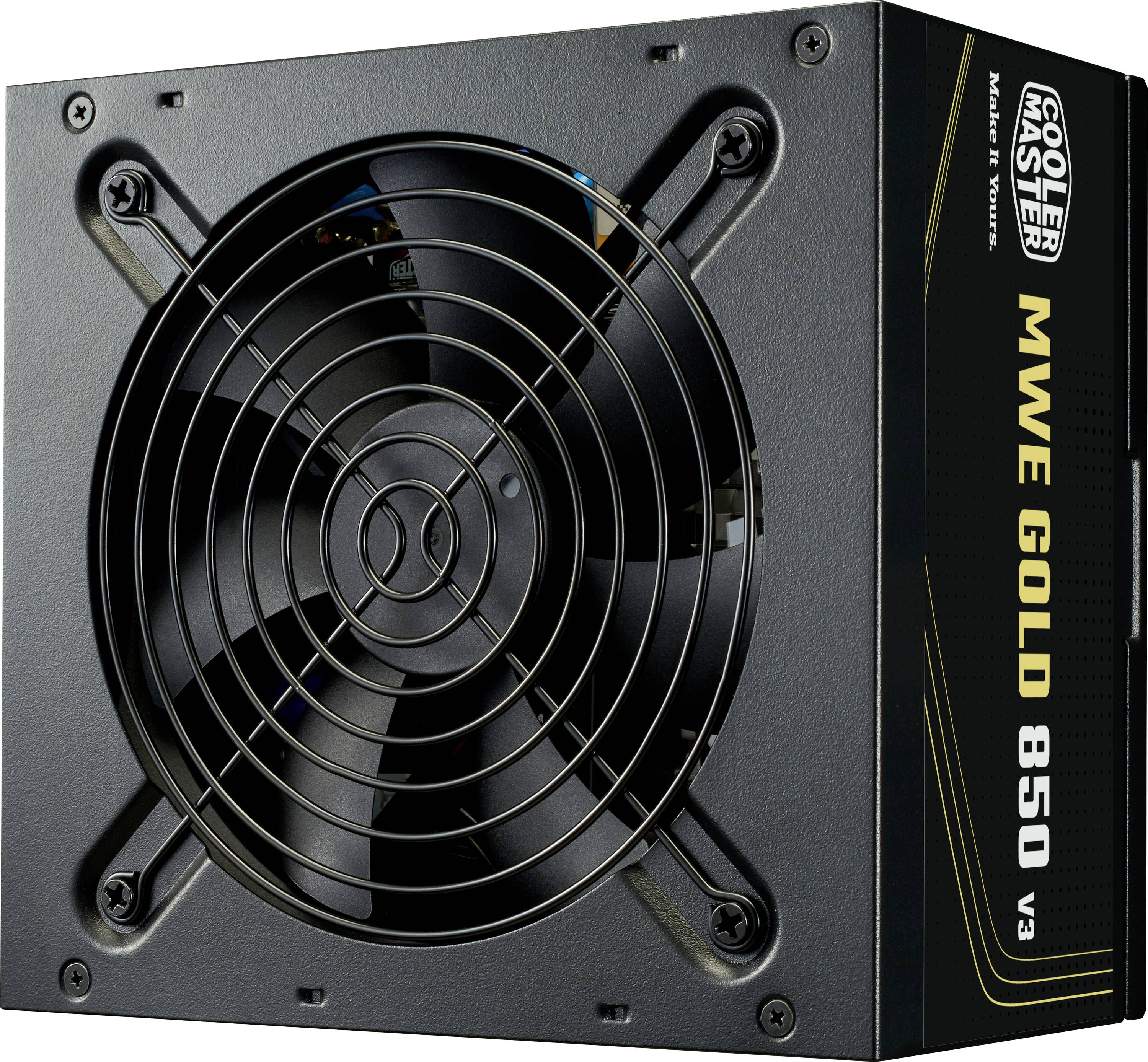

- Fan diameter 12 cm
- Number of fans: 1 fans
- Box/shipping box dimensions (W x D x H) 275 x 215 x 570 mm
- Product type
PC power supply unit
- PSU output power
850 W
- Modular
No
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 140 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
140 mm
- Weight
1.8 kg

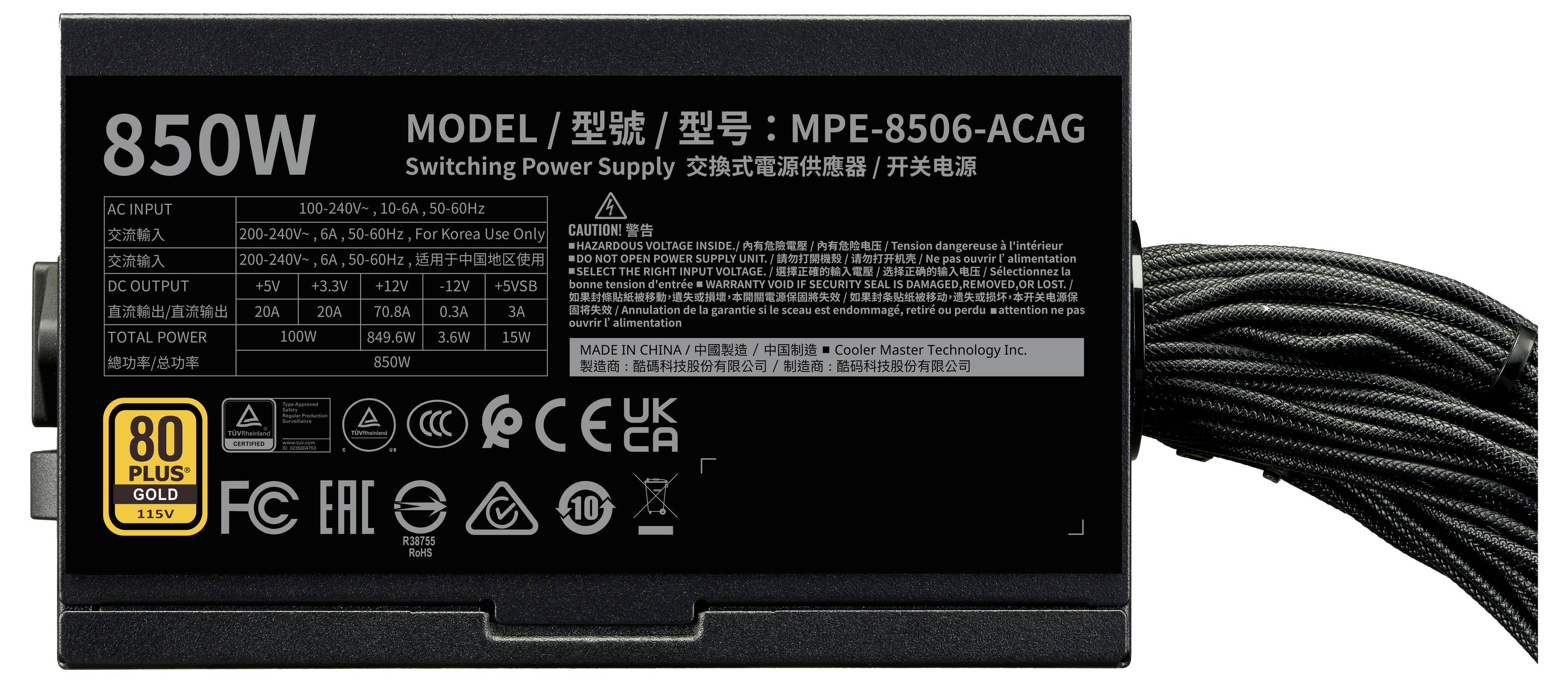

- -12V / DC
0.3 A
- +12 V/DC (1)
70.8 A
- 5 V DC
20 A
- +5V / DC SB
3 A

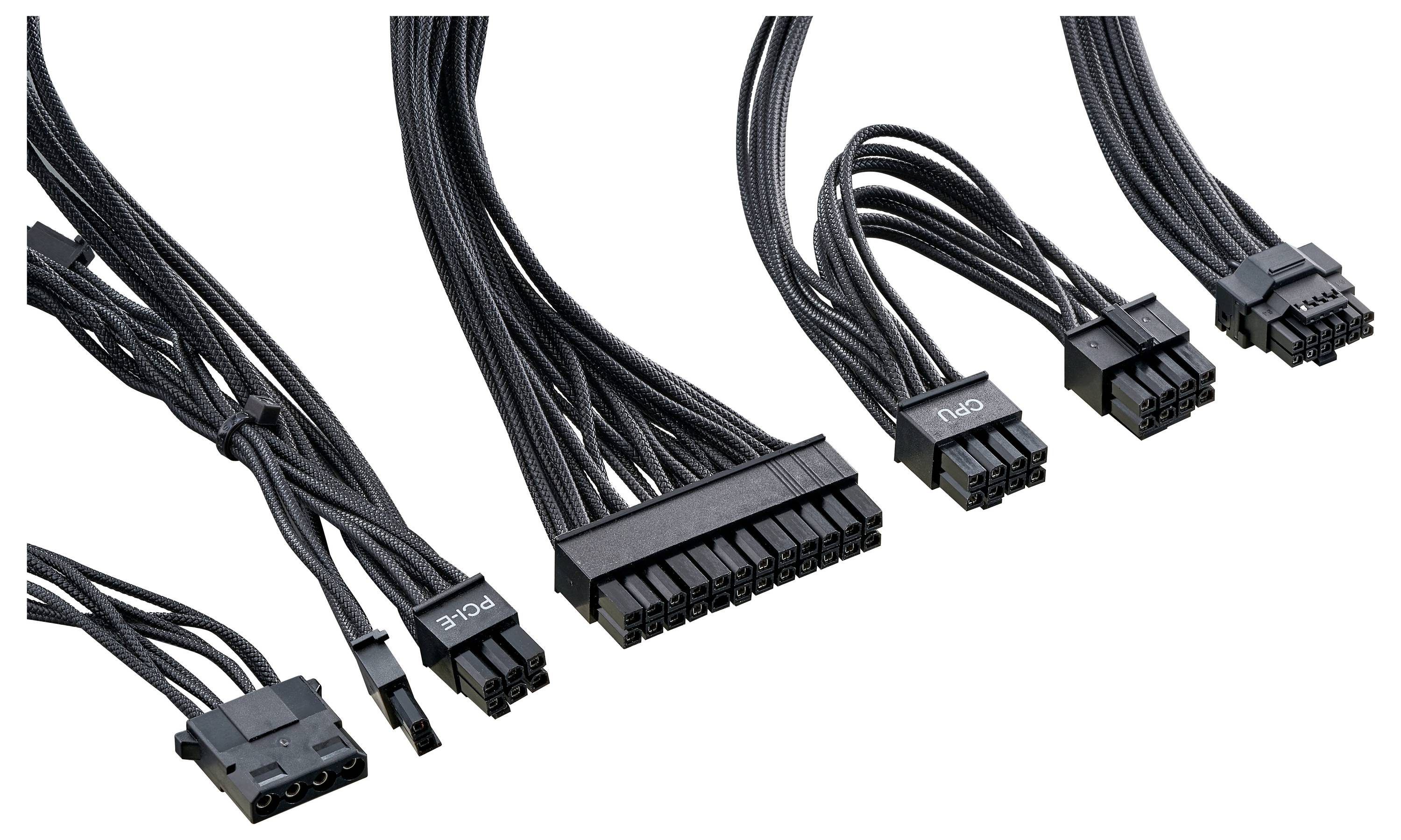

- 4-pin Molex
3
- 6-pin PCIe
4
- 5-pin SATA
6
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Motherboard power cable length
55 cm
- ATX Power connector (24-pin)
yes
- EPS power connector (4+4 pin)
yes
- Number of EPS connectors
2
- Mean time between failures (MTBF)
100000 h
- Efficiency
90 %
- Hold time
16 ms
- On/off switch
yes
- EPS power connector (8-pin)
yes
- Package weight
2.21 kg
- Combined power (+3.3V)
100 W
- Combined power (+12V)
849.6 W
- Combined power (+5V)
100 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
