Cooler Master X Mighty Platinum PC power supply unit 2000 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
2000 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
Highlights & Details

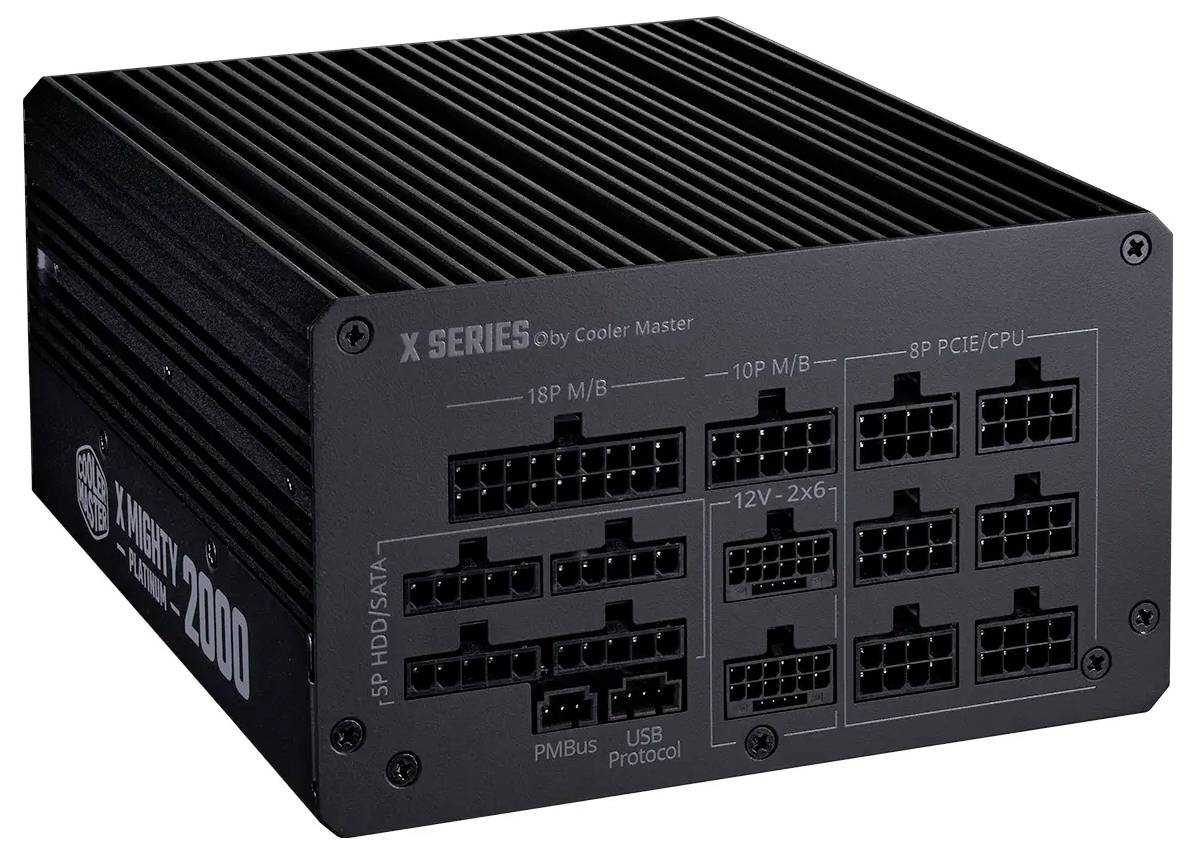

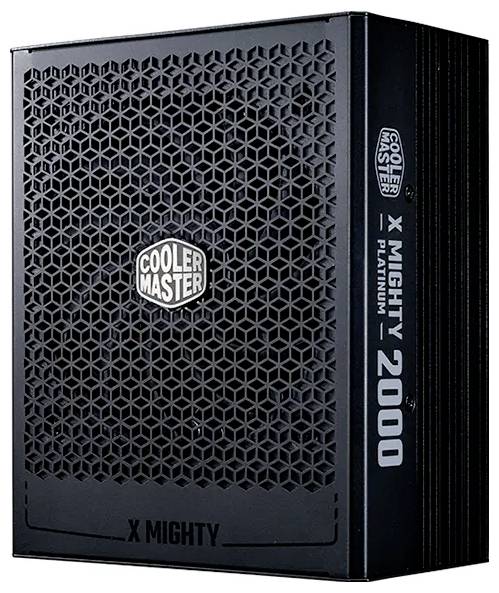

Cooler Master X Mighty Platinum PC power supply unit
- Power supply unit output 2000 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Number of fans: 1 fans
- Product color: Black
- EPS Power Connector (4+4-pin): Yes
- Motherboard connector plug 24-pin ATX
- ATX power plug (24-pin): Yes
- Storage type: FDB
- Cooling: Active
- Fan diameter 12 cm
- On/off switch: Yes
- Efficiency: 94%
- AC input frequency 50/60 Hz
- Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, Overvoltage and overcurrent, undervoltage
- Power factor correction filter (PFC): Active
- Cable type: Fully modular
- SATA-power cable length 500,650,800,950 mm
- Power cable length of motherboard 65 cm
- EPS Power Connector (8-pin): Yes
- Peripheral (Molex) Power cable length 500,620,740,860 mm
- Average time between failures (MTBF): 100000 hours
- Operating temperature: -0 to + 50 °C.
- Combined current (+12V): 1999.2 W
- Combined current (+3.3V) 120 W
- Combined current (+5V): 120 W
- Input current 12 A
- Hold time 16 ms
- Power good signal Delay range 100 - 150 ms
- Combined current (-12V): 3.6 W
- Combined current (+5Vsb): 15 W
- USB 3.2 Gen 1 (3.1 Gen 1) Connections 1
- Fan placement: Top
- Blower speed 0 - 2500 RPM
- PCI Express power connections (12-pin): 1
- Product type
PC power supply unit
- PSU output power
2000 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Multicolour
- Dim
(W x H x D) 150 x 86 x 180 mm
- Depth
180 mm
- Height
86 mm
- Width
150 mm
- Weight
4.1 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
166.6 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
4
- 4+4 pin ATX/EPS 12V
2
- 6-pin PCIe
4
- 5-pin SATA
12
- Features
ATX 3.1
- Output rating > 700 W
2000 W
- Power rating
751 W -
- Fan size
120 mm
- 3.3V DC
20 A
- Operating voltage
200 - 240 V
- UKCA
yes
