Cooler Master X Silent Edge Platinum PC power supply unit 1100 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
1100 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
Highlights & Details

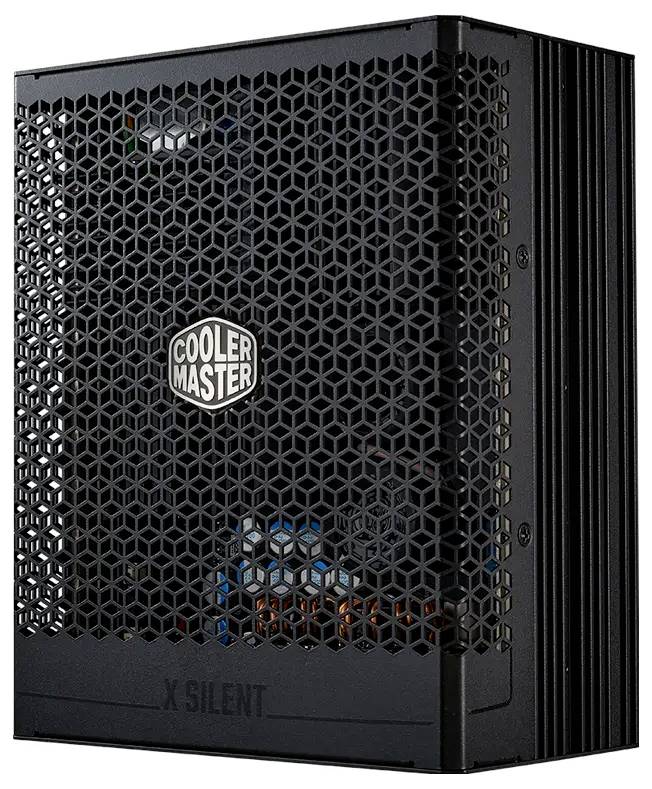

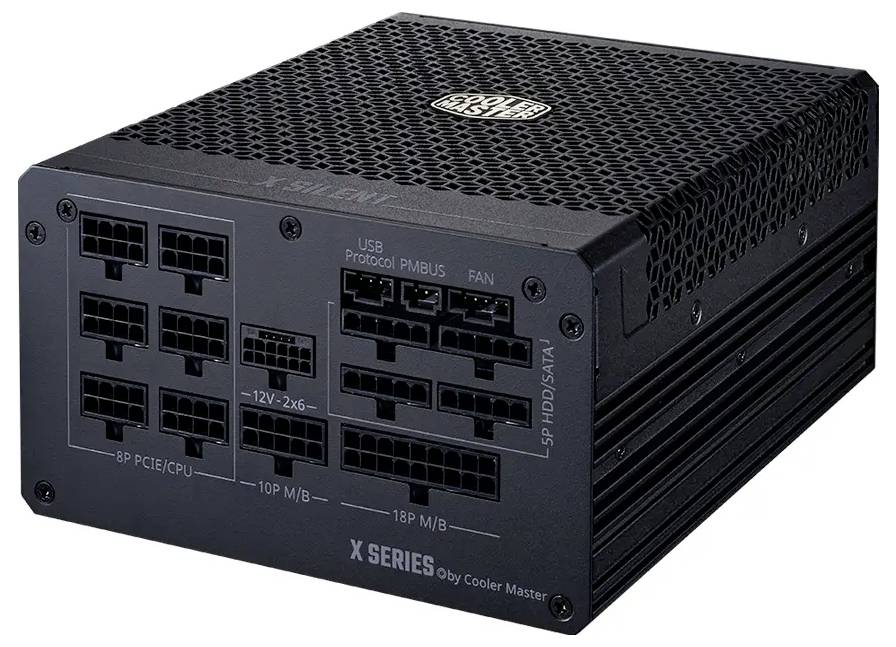

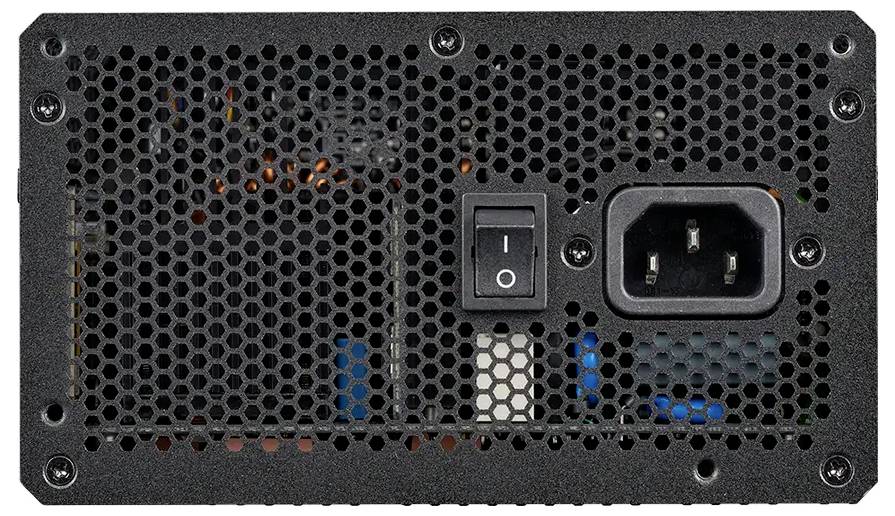

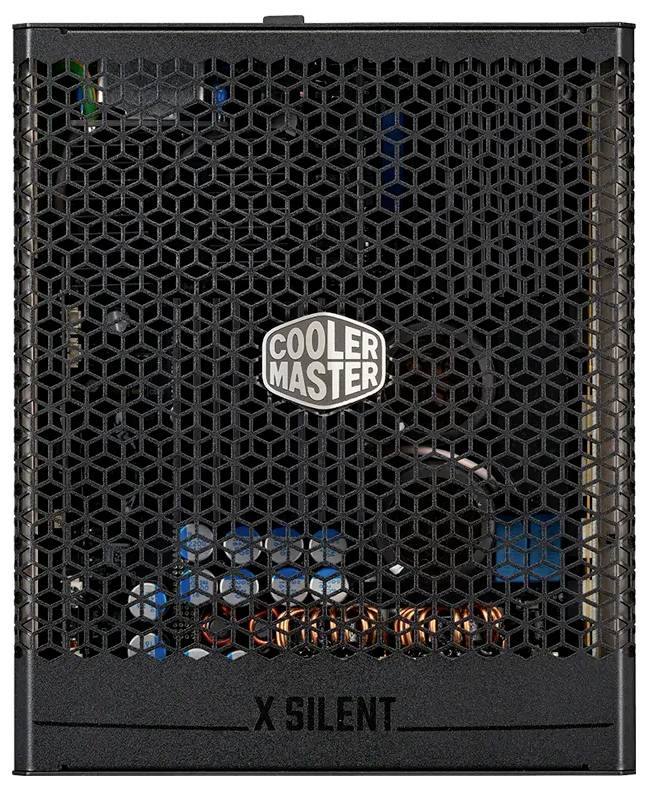

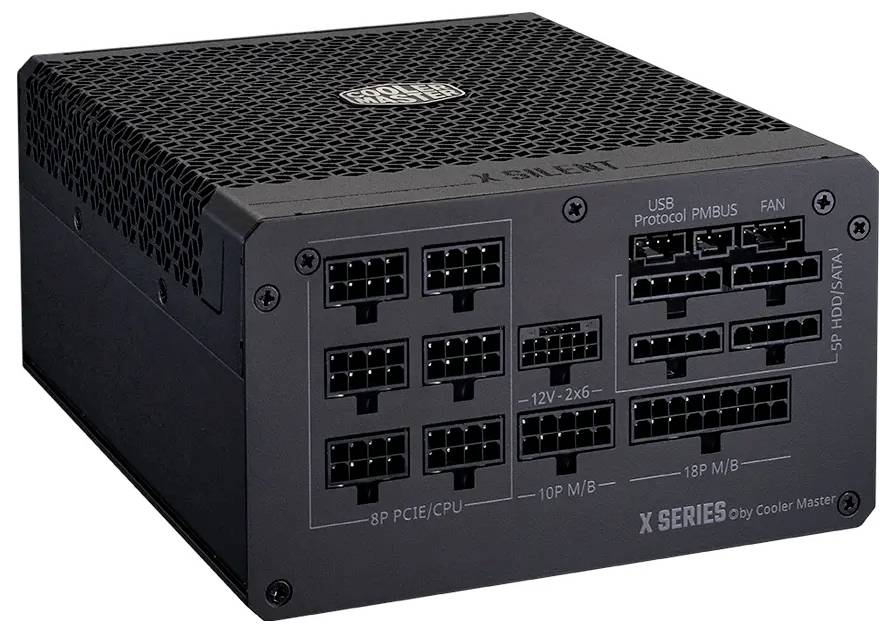

Cooler Master X Silent Edge Platinum PC power supply unit
- Power supply unit output 1100 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Number of fans: 0 fans
- Product color: Black
- EPS Power Connector (4+4-pin): Yes
- Motherboard connector plug 24-pin ATX
- Efficiency: 94%
- AC input frequency 50/60 Hz
- Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, Surge & inrush protection (SIP), undervoltage
- Power factor correction filter (PFC): Active
- Cable type: Fully modular
- PCI Express power connections (12+4-pin) Cable length 650 mm
- SATA-power cable length 500,650,800,950 mm
- Power cable length of motherboard 65 cm
- PCI Express power cable length 55 cm
- EPS Power Connector (8-pin): Yes
- Peripheral (Molex) Power cable length 740,620,500,860 mm
- Average time between failures (MTBF): 100000 hours
- Operating temperature: 0 - 40 °C
- EPS cable length 65 cm
- Combined current (+12V): 1099.2 W
- Combined current (+3.3V) 120 W
- Combined current (+5V): 120 W
- Input current 6.1 A
- Hold time 16 ms
- Power good signal Delay range 100 - 150 ms
- Combined current (-12V): 3.6 W
- Combined current (+5Vsb): 15 W
- PCI Express power connections (12+4-pin) 1
- Product type
PC power supply unit
- PSU output power
1100 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Multicolour
- Dim
(W x H x D) 150 x 86 x 180 mm
- Depth
180 mm
- Height
86 mm
- Width
150 mm
- Weight
4.5 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
91.6 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
4
- 6-pin PCIe
4
- 5-pin SATA
12
- Features
ATX 3.1
- Output rating > 700 W
1100 W
- Power rating
751 W -
- 3.3V DC
20 A
- Operating voltage
200 - 240 V
- UKCA
yes
