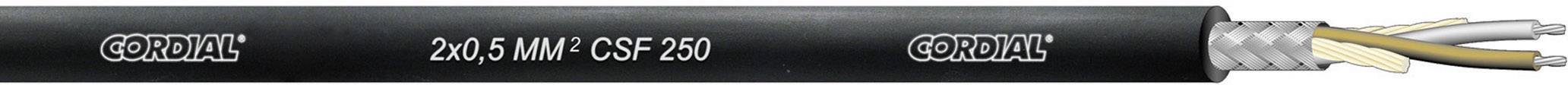

Cordial CSF 250 Microphone cable 2 x 0.5 mm² Black Sold per metre
EAN:
Part number:
Item no:
Product type
Microphone cable
No. of leads
2 x
Cross section (each core)
0.5 mm²
Content
Sold per metre
Cross section
2 x 0.5 mm²
Datasheet (PDF)
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Microphone cable CSF 250
- For professional studio technology
Technical specifications
- Conductor resistance: 40 Ω/km
- Product type
Microphone cable
- No. of leads
2 x
- Cross section (each core)
0.5 mm²
- Cross section
2 x 0.5 mm²
- Cable features
Shielded
Twin shield
- Outside Ø
5.20 mm
- Factory colour
Black
- Content
Sold per metre
- Test voltage
750 V
- Packaged
No
- Sold per metre
Yes
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
CSF 250
- Insulation material
PVC
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
64 x 0.10 mm
- RoHS-compliant
- Type
LifYY
- Max. length sold by the metre
100 m
Documents & Downloads
Datasheet
Datasheet 602026 Cordial CSF 250 Microphone cable 2 x 0.5 mm² Black Sold per metre
User & Safety Instructions
User & Safety Instructions 602026 Cordial CSF 250 Microphone cable 2 x 0.5 mm² Black Sold per metre
Description
This cordial ® microphone cable type covers the technical specifications of the recording studio and radio house construction. Because of the long cable paths are greater cross sections are preferred, phantom power enters almost without loss to the consumer. The finest tin-plated individual wires in braided screen and wire provide good flexibility and easy installation.
