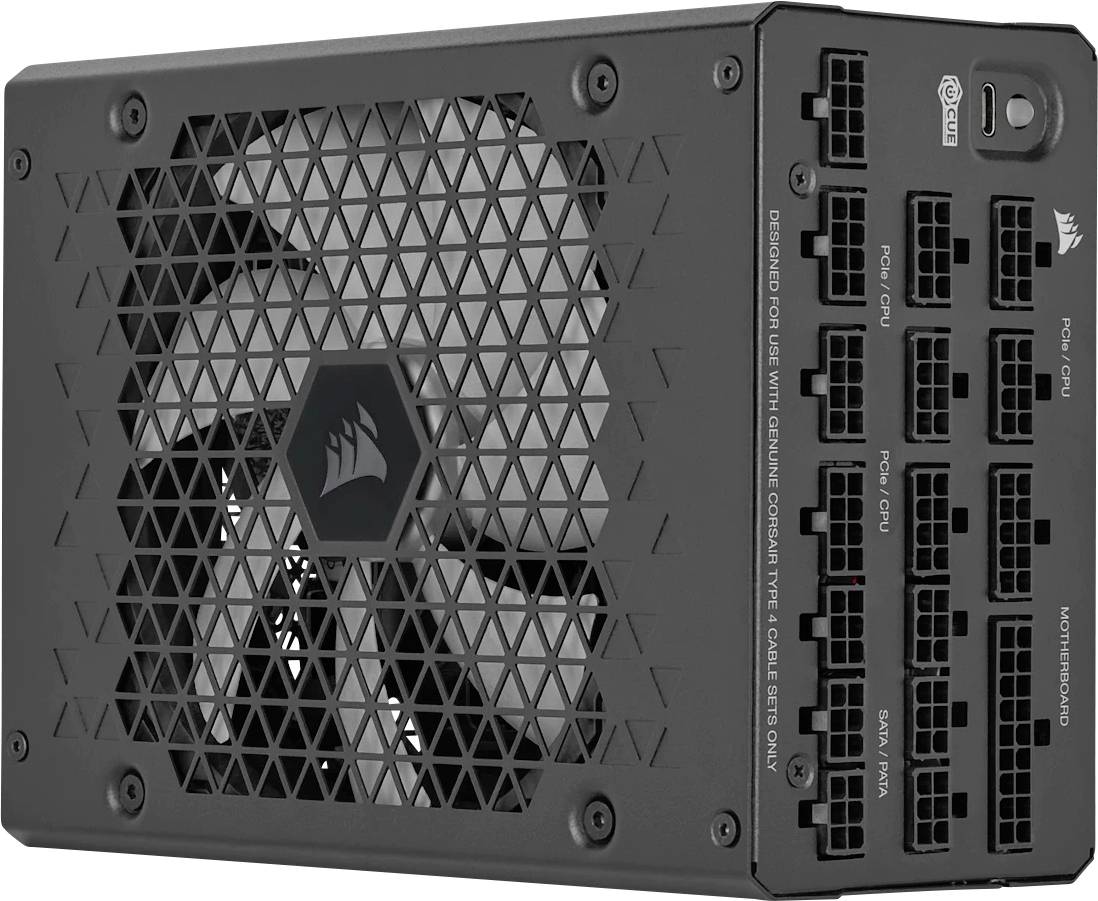

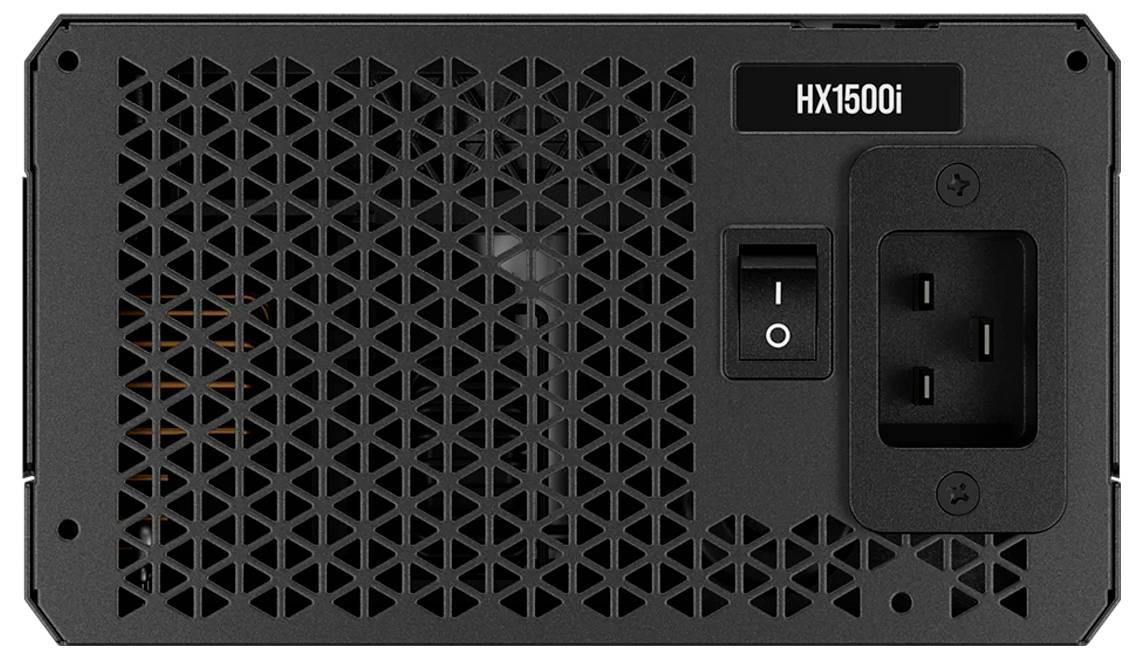

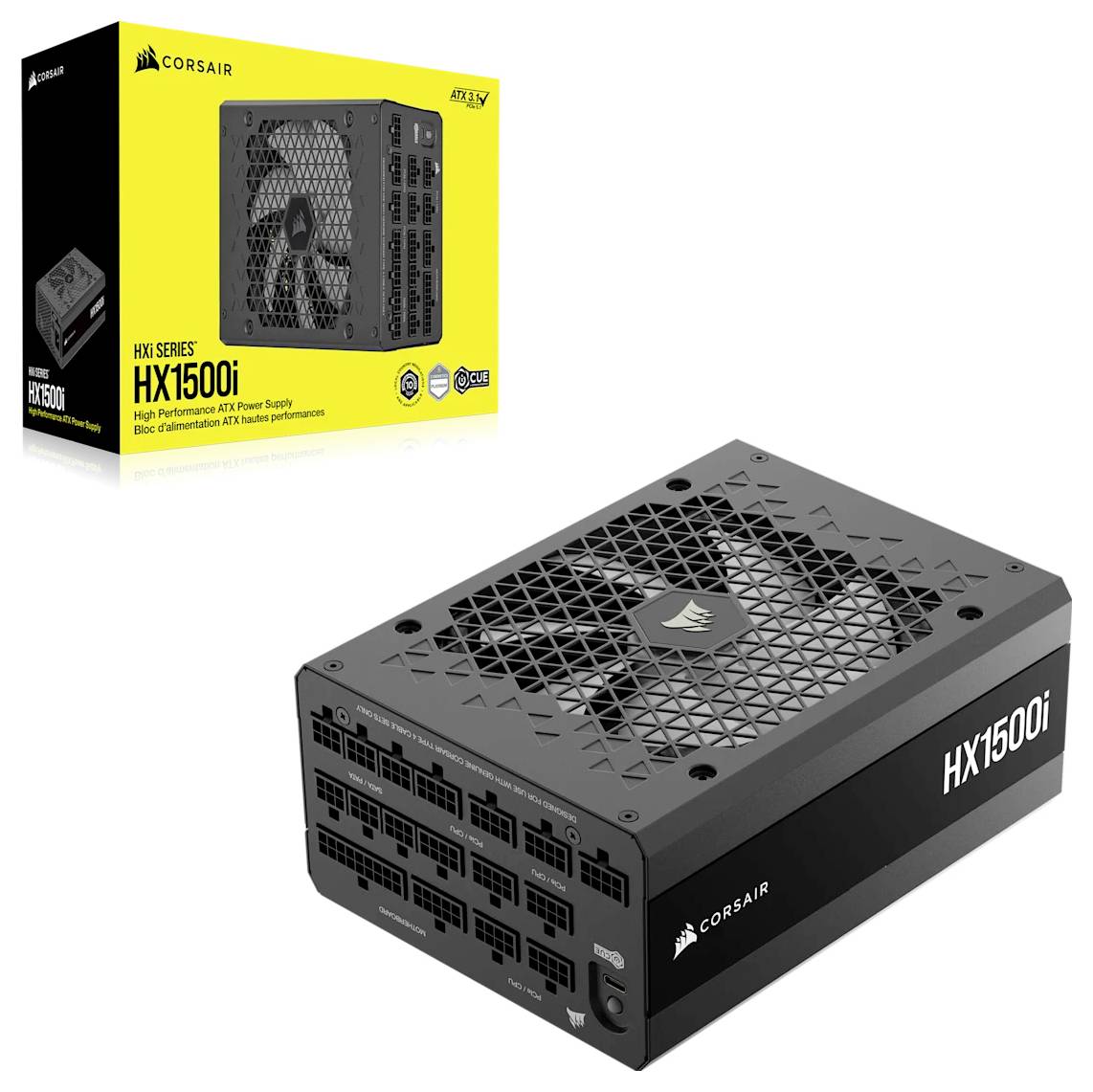

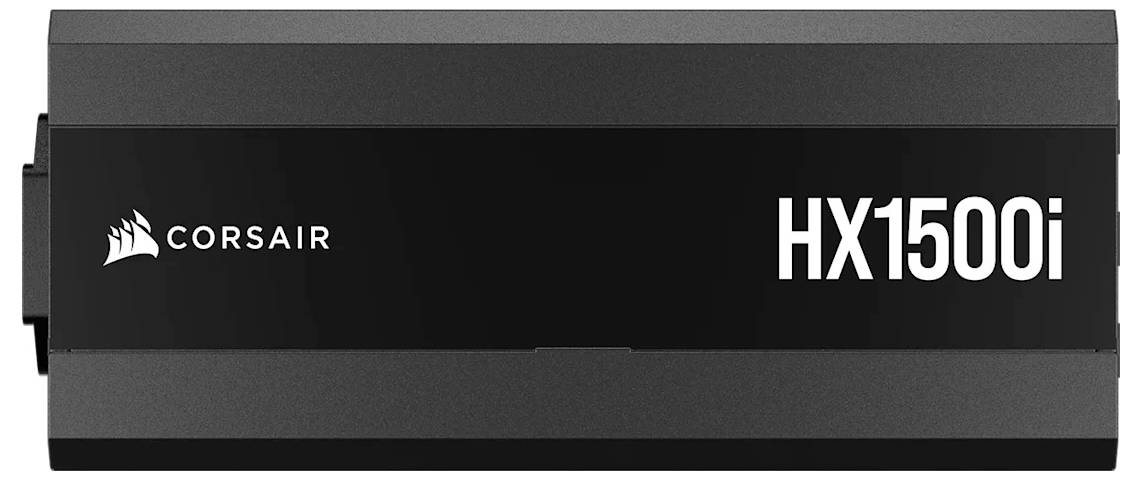

Corsair HX1500i PC power supply unit 1500 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
1500 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
Highlights & Details
Corsair HX1500i PC power supply unit
- Power supply unit output 1500 W
- PCI-Express (6+2-Pin) 5x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Fan diameter 14 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
1500 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Black
- Dim
(L x W x H) 250 cm x 350 mm x 150 mm
- Height
150 mm
- Width
350 mm
- Weight
5.26 kg
- +12 V/DC (1)
125 A
- 5 V DC
25 A
- +5V / DC SB
3.5 A
- 6-pin PCIe
5
- 5-pin SATA
8
- Power rating
751 W -
- Length
250 cm
- Cooling
Active
- 3.3V DC
25 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Motherboard power cable length
61 cm
- Number of EPS connectors
2
- Mean time between failures (MTBF)
100000 h
- Combined power (+3.3V)
150 W
- Combined power (+12V)
1500 W
- Combined power (+5V)
150 W
- Combined power (+5Vsb)
17.5 W
- Number of PATA power connectors
6
