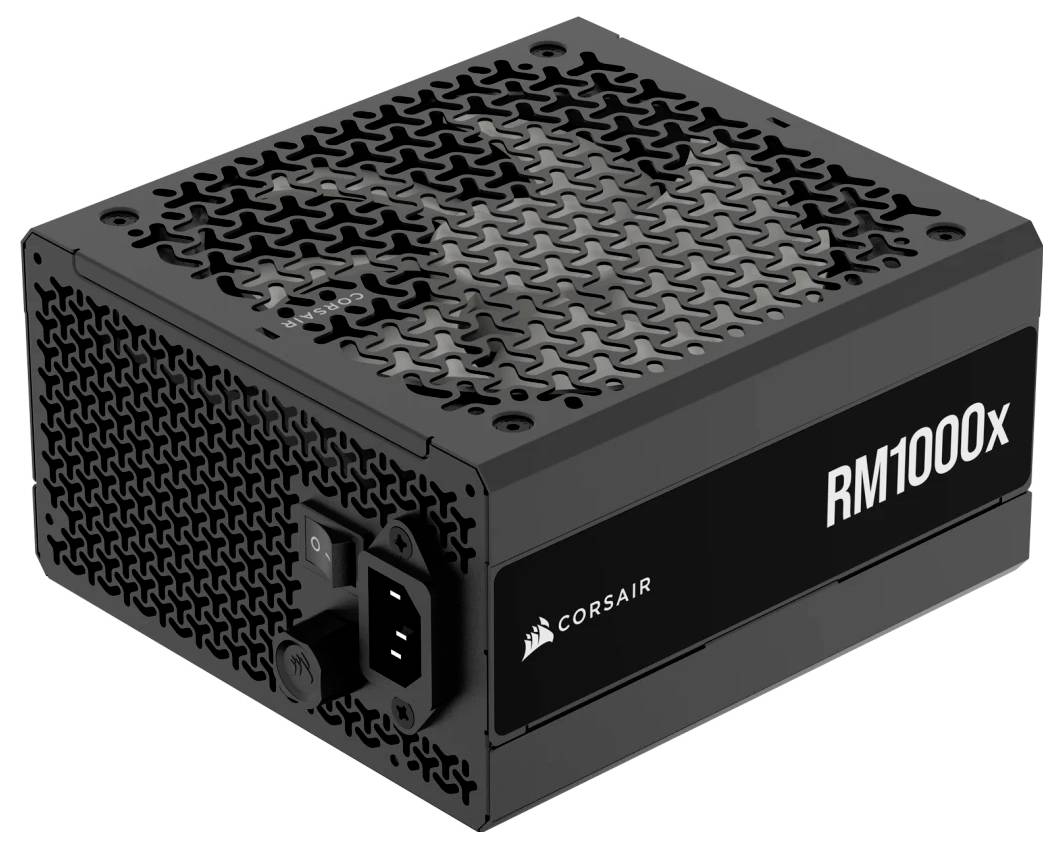

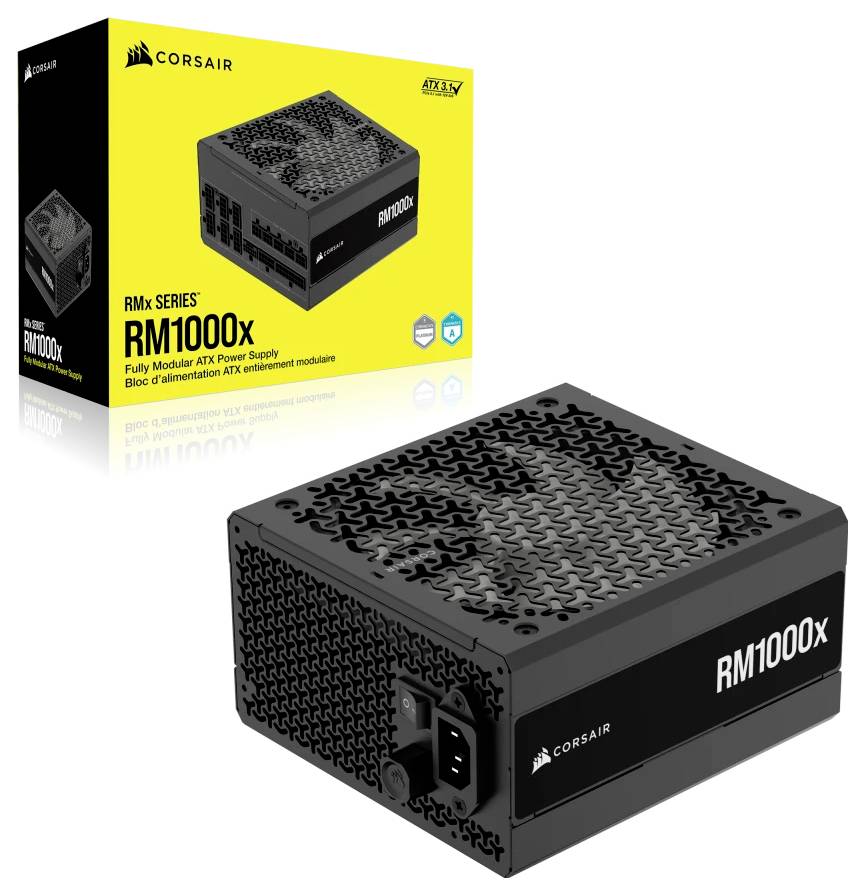

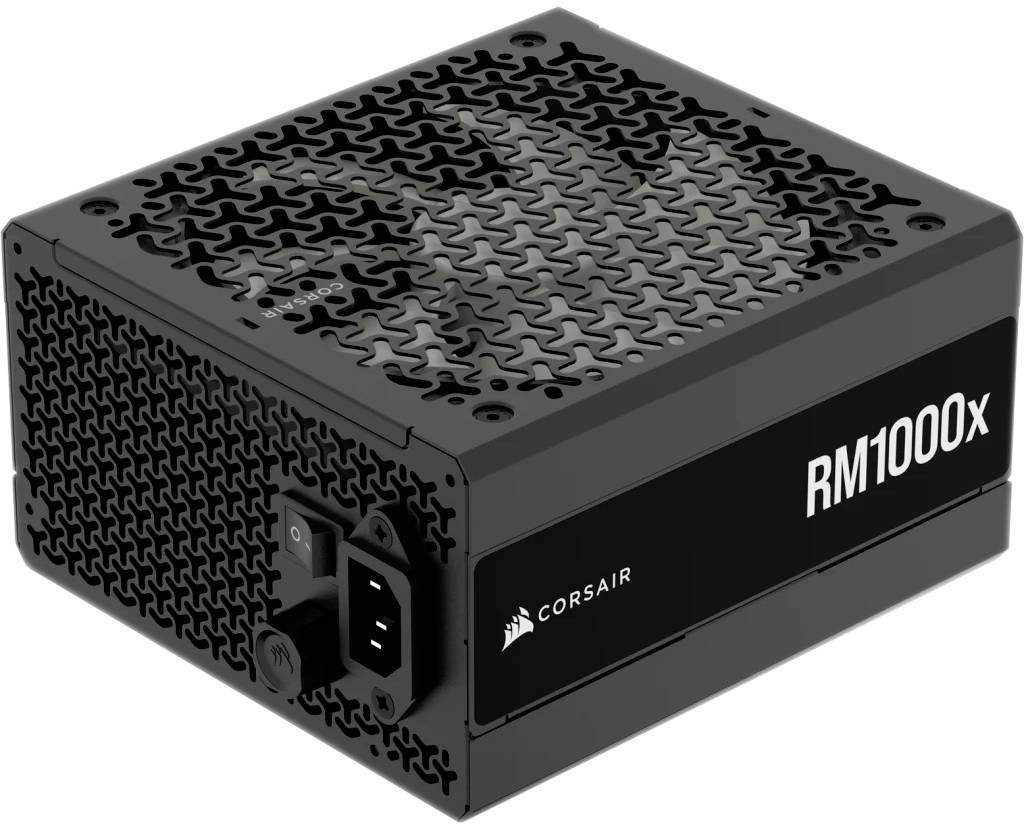

Corsair RM1000x PC power supply unit 1000 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
1000 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Corsair RM1000x PC power supply unit
Highlights & Details
- Power supply unit output 1000 W
- PCI-Express (6+2-Pin) x

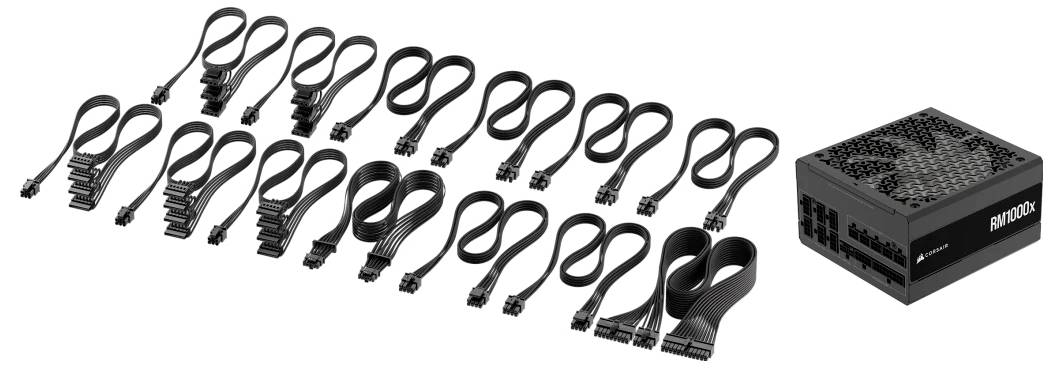

- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 14 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
1000 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 160 mm
- Depth
160 mm
- Height
86 mm
- Width
150 mm
- Weight
3.65 kg
- -12V / DC
0.8 A
- +12 V/DC (1)
83.3 A
- 5 V DC
25 A
- +5V / DC SB
3 A
- 4-pin Molex
12
- 5-pin SATA
11
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
25 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Maximum input current (@110V)
12 A
- Maximum input current (@220V)
5 A
- PCI Express connector
yes
- Mean time between failures (MTBF)
100000 h
- On/off switch
yes
- Floppy drive power connector
1
- EPS power connector (8-pin)
yes
- Combined power (+3.3V)
150 W
- Combined power (+12V)
1000 W
- Combined power (+5V)
150 W
- Combined power (-12V)
9.6 W
- Combined power (+5Vsb)
15 W
