Name: Corsair SF Series SF1000 PC power supply unit 1000 W SFX 80 PLUS Platinum
Brand: Corsair
SKU: 3533512

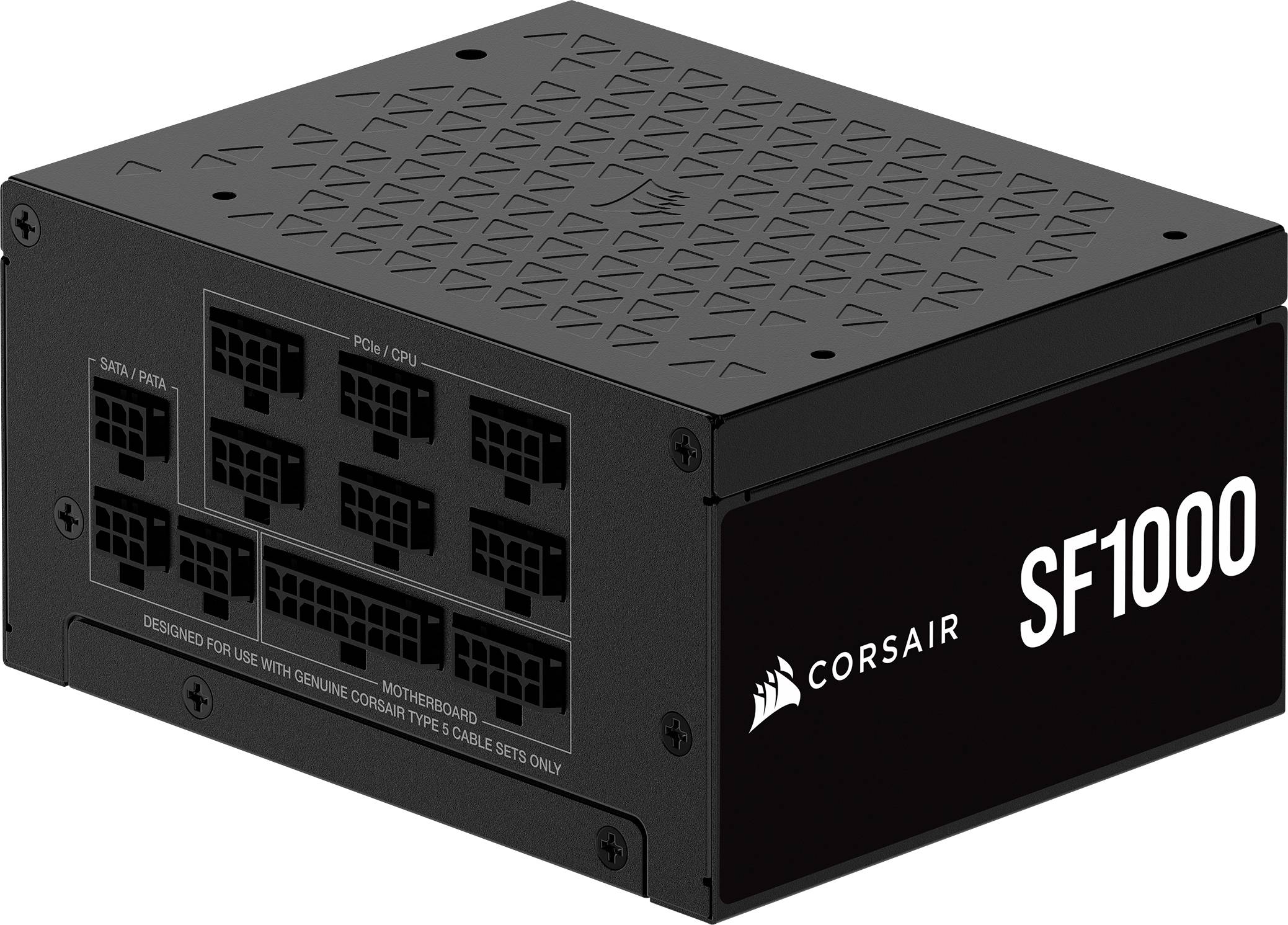

Black Corsair SF1000 power supply unit with multiple ports for SIM/FDD, CPU, and motherboard connections.

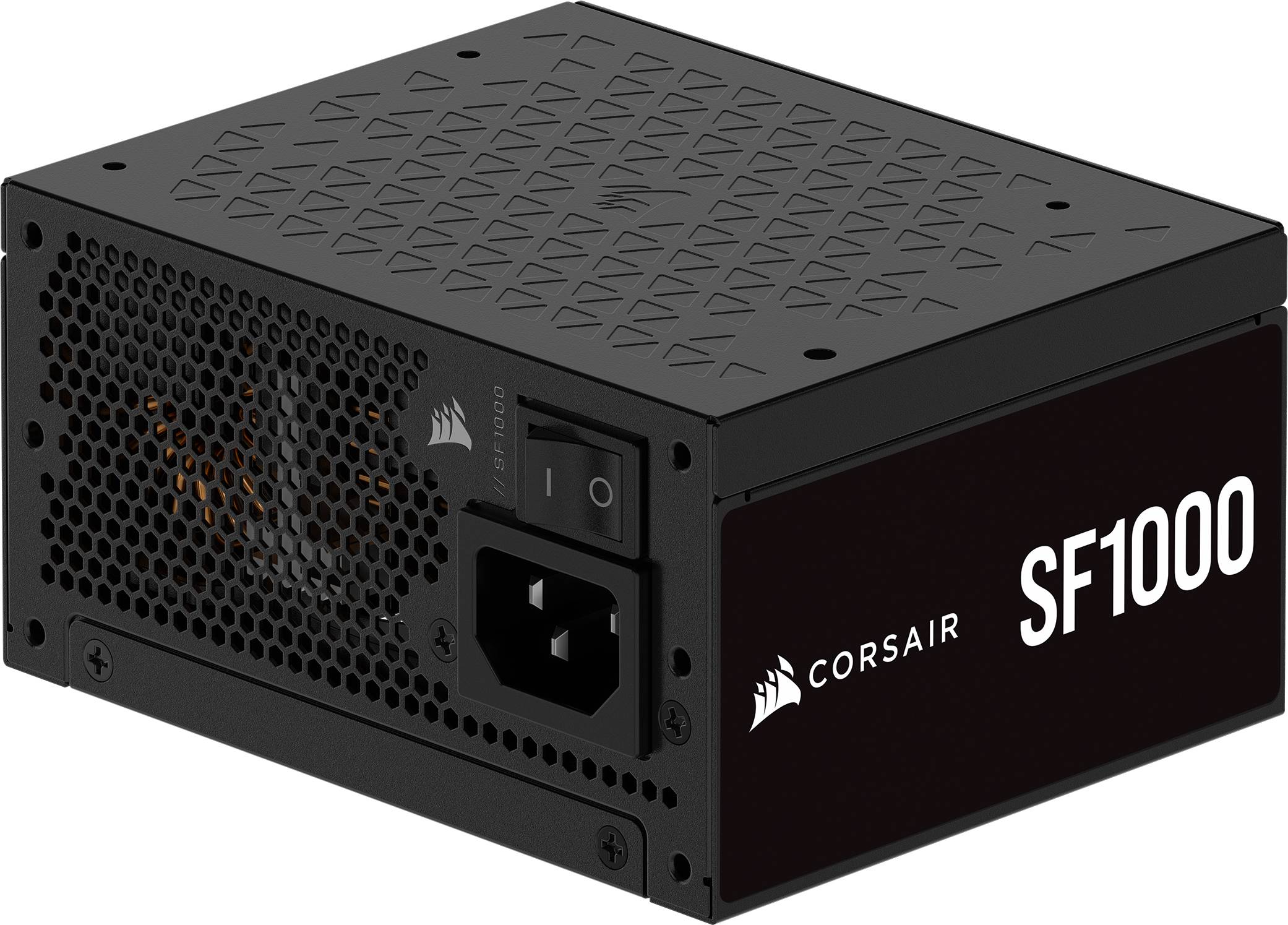

'Corsair SF1000' gaming power supply in a black, compact design with ventilation grille and power switch.

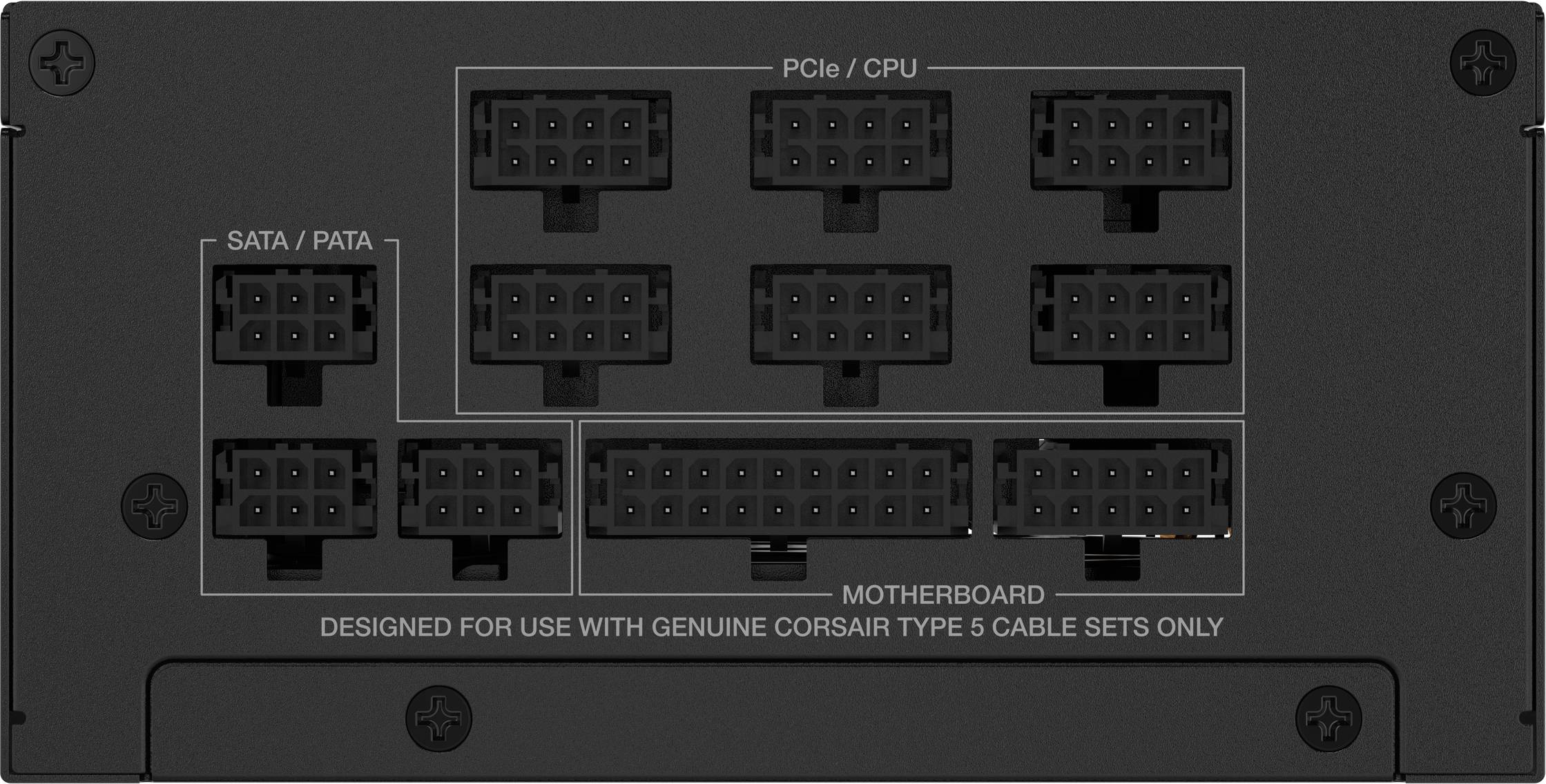

'Power supply unit's back panel showing multiple connector ports labeled for SATA/PATA, PCIe/CPU, and motherboard (Corsair Type 5).'

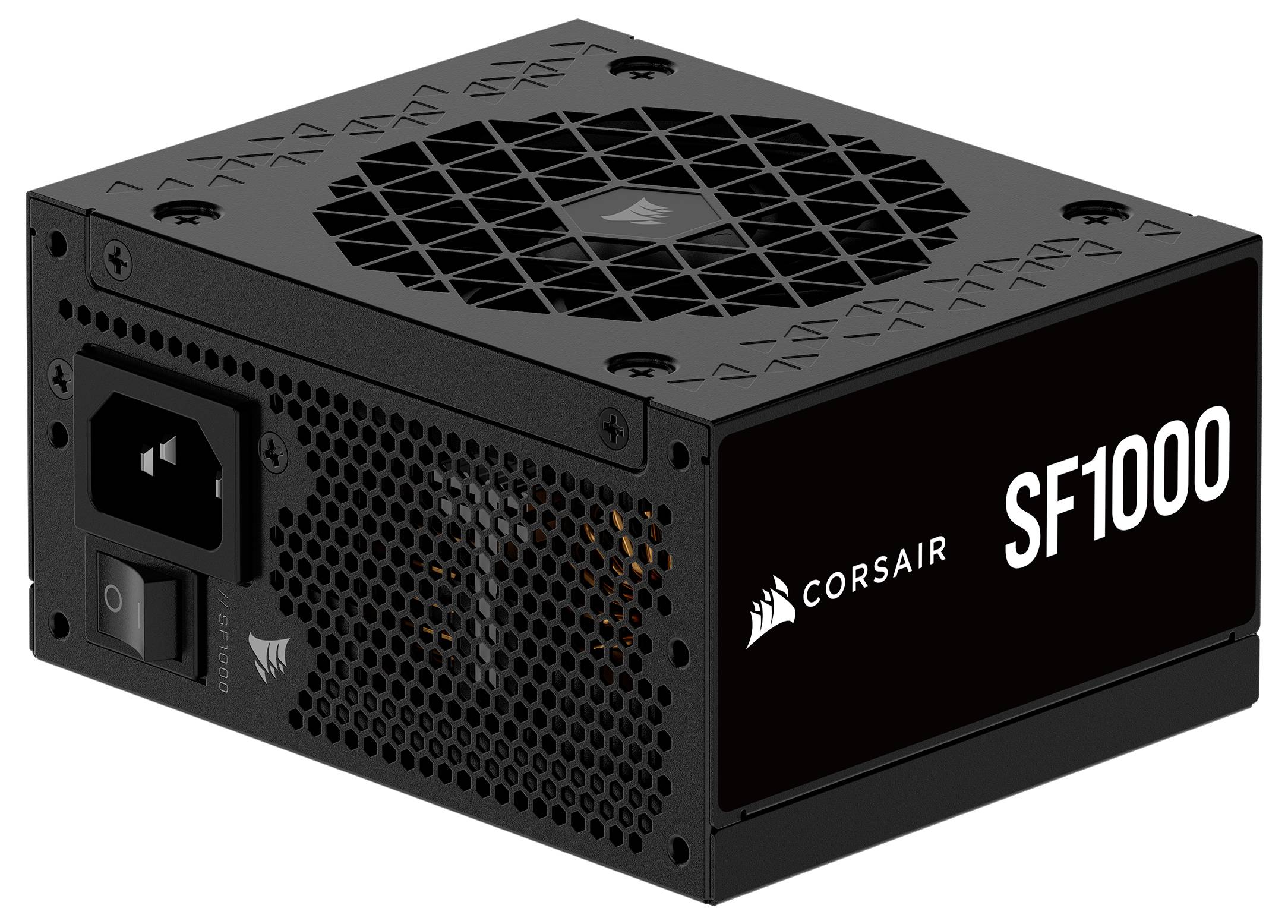

Corsair SF1000 power supply unit, black, with ventilation grill on top and plugs for power cable and switch on the side.

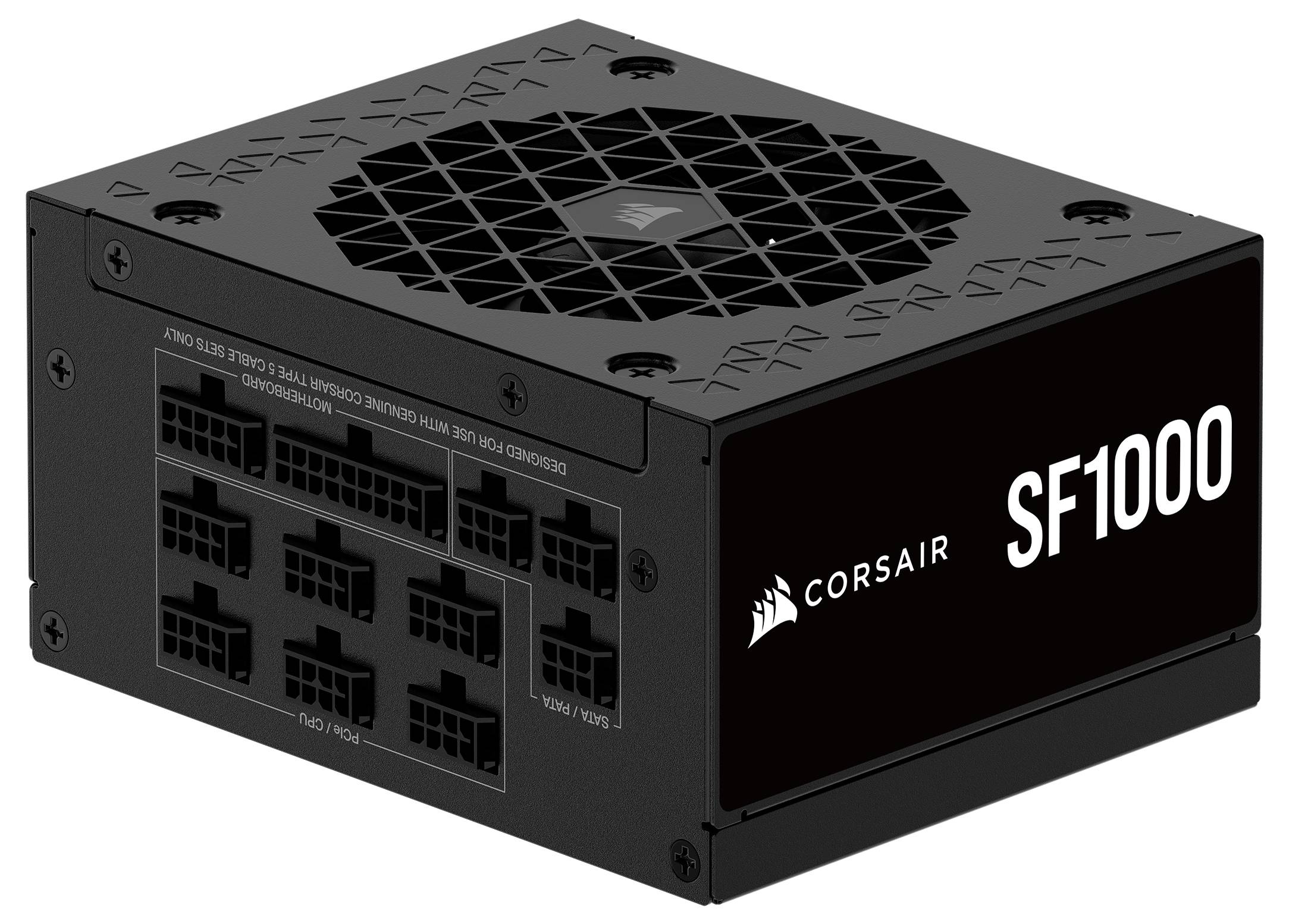

'Corsair SF1000' power supply unit with multiple ports for PC connectivity, featuring a compact design and black exterior.

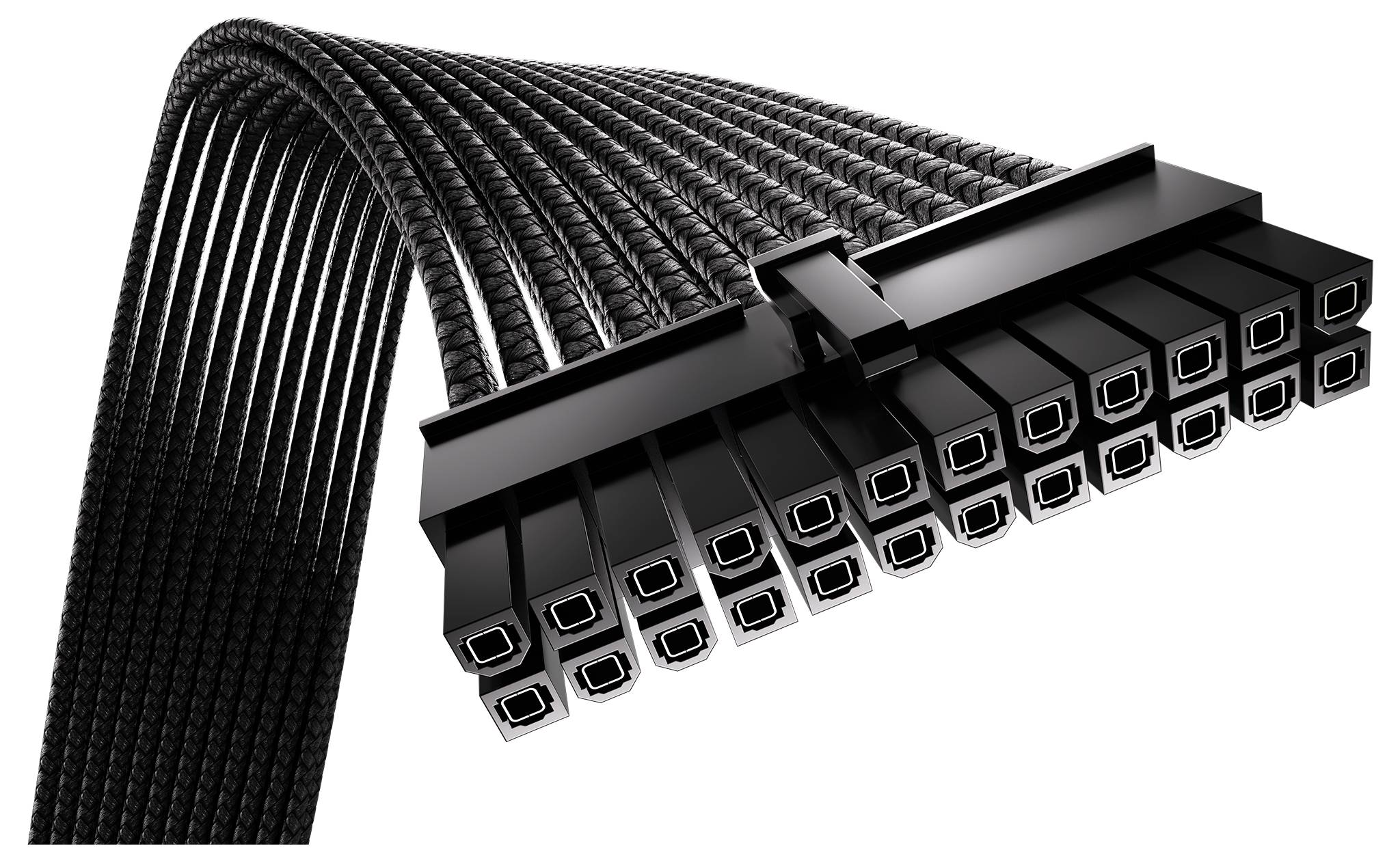

A close-up image of a black, braided computer power cable with multiple connectors, shown in an arching configuration, emphasizing its flexibility.

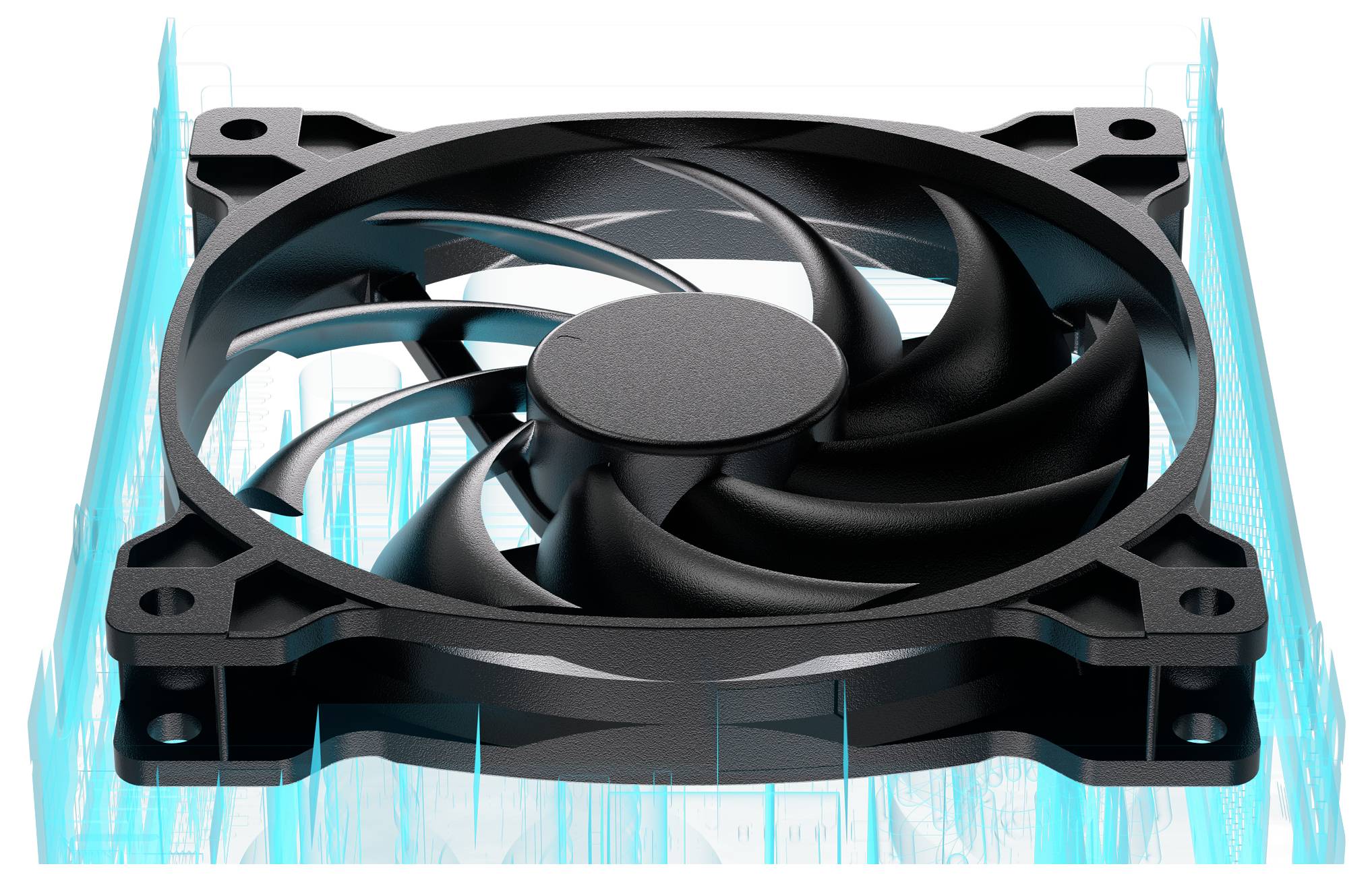

A computer cooling fan with black blades and a square frame is highlighted against a blue data flow background, representing airflow dynamics.

Corsair SF1000 power supply unit, black, with multiple connection ports on one side and honeycomb ventilation on top.

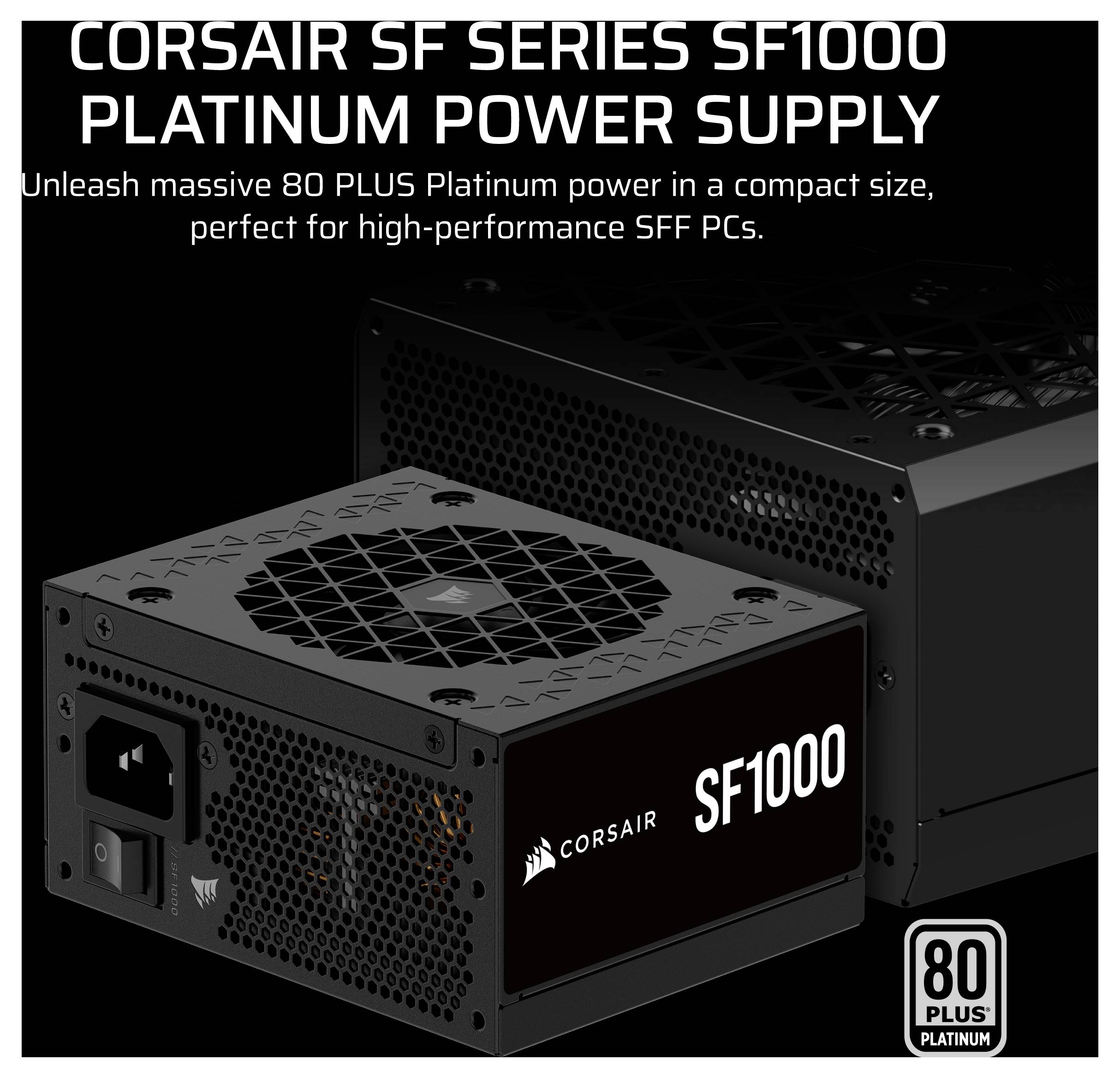

Front view of a computer power supply unit with a fan vent, power switch, and power socket, labeled 'SF1000'.

Corsair SF Series SF1000 PC power supply unit 1000 W SFX 80 PLUS Platinum-13

Corsair SF Series SF1000 PC power supply unit 1000 W SFX 80 PLUS Platinum-14

Corsair SF Series SF1000 PC power supply unit 1000 W SFX 80 PLUS Platinum-15

Corsair SF Series SF1000 PC power supply unit 1000 W SFX 80 PLUS Platinum-16

1/17

Product type

PC power supply unit

PSU output power

1000 W

Modular

Yes

Certification

80 PLUS Platinum

Form factor

SFX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Corsair SF Series SF1000 PC power supply unit

Power supply unit output 1000 W
PCI-Express (6+2-Pin) 4x
Cable management Yes
80 PLUS Platinum

Technical specifications

80 Plus certification: 80 PLUS Platinum
Fan diameter 9.2 cm
Number of fans: 1 fans

Product type: PC power supply unit

PSU output power: 1000 W

Modular: Yes

Certification: 80 PLUS Platinum

Form factor: SFX

Factory colour: Black

Dim: (W x H x D) 1250 x 635 x 100 mm

Depth: 100 mm

Height: 635 mm

Width: 1250 mm

Weight: 2.3 kg

+12 V/DC (1): 83.3 A

5 V DC: 20 A

+5V / DC SB: 3 A

6-pin PCIe: 4

5-pin SATA: 3

Features: ATX 3.1
PCIe Gen 5.1

Power rating: 751 W -

Cooling: Active

3.3V DC: 20 A

Power supply (details): 100 - 240 V

UKCA: yes

Silent mode: yes

Motherboard power cable length: 30 cm

PCI Express power cable length: 40 cm

EPS power connector (4+4 pin): yes

Mean time between failures (MTBF): 100000 h

On/off switch: yes

Combined power (+3.3V): 130 W

Combined power (+12V): 1000 W

Combined power (+5V): 130 W

Combined power (+5Vsb): 15 W

Number of PATA power connectors: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3533512 Corsair SF Series SF1000 PC power supply unit 1000 W SFX 80 PLUS Platinum

Description

SMALL BUT POWERFUL
Don't be fooled by its size - this SFX power supply has a 80 PLUS Platinum certified power and is perfectly suitable for the most powerful PCs with a small form factor.

CONTINUOUS OPERATING TEMPERATURE OF 50 °C.
Guaranteed a reliable power supply for your SFF PC even under high loads.

CAPACITORS DESIGNED AT 105 °C.
Designed for reliable performance and long service life through the exclusive use of Japanese electrolytic capacitors of industrial grade class with 105 degree specification.

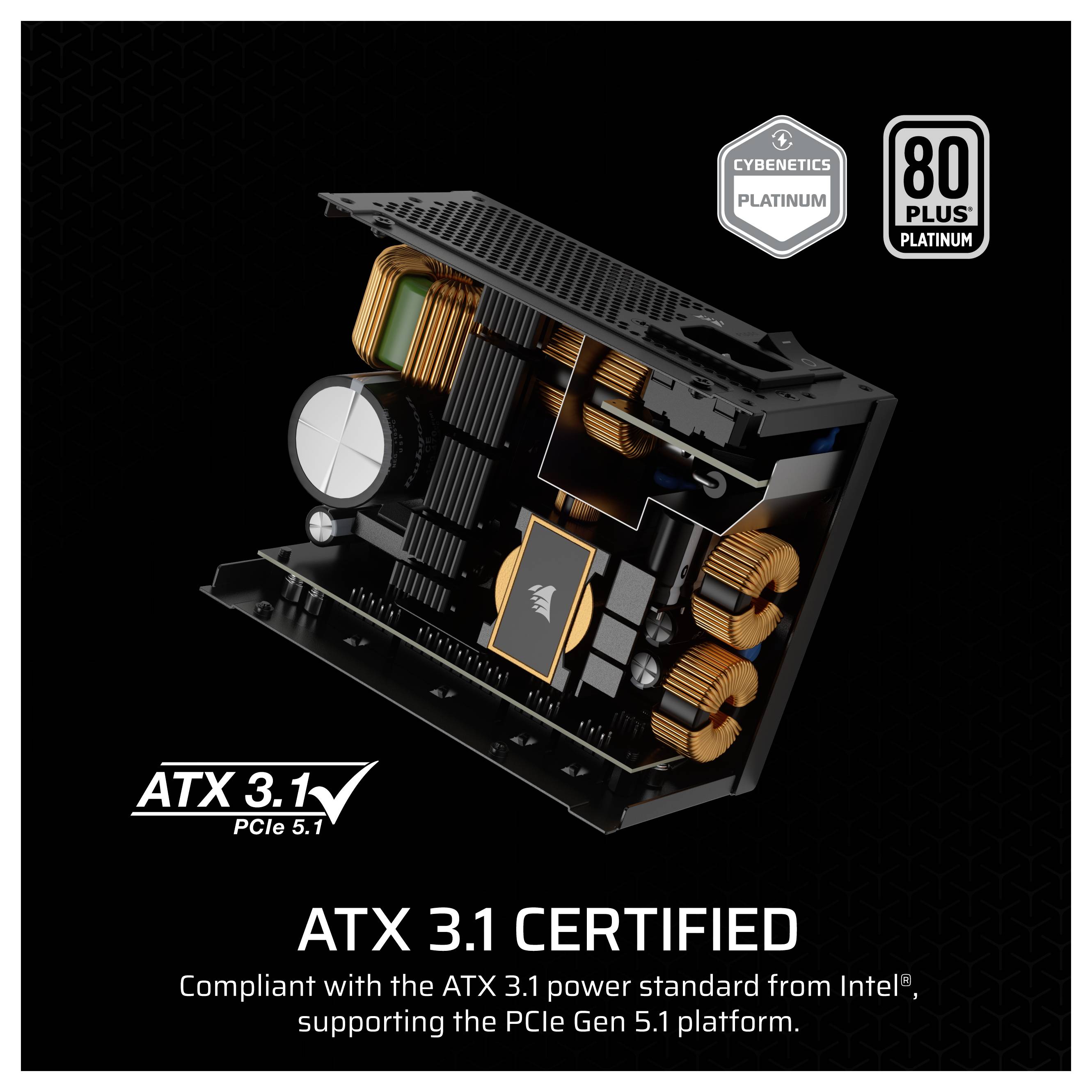

ATX 3.1 CERTIFIED
The ATX 3.1 standard requires a high degree of reliability and performance efficiency. While many power supplies from Corsair meet these requirements, the SF Series power supplies are officially certified to conform to ATX 3.1.

Including PCIe 5.1 12V-2x6 GPU-cable for use with modern graphics cards like the Nvidia GeForce RTX 40 series.

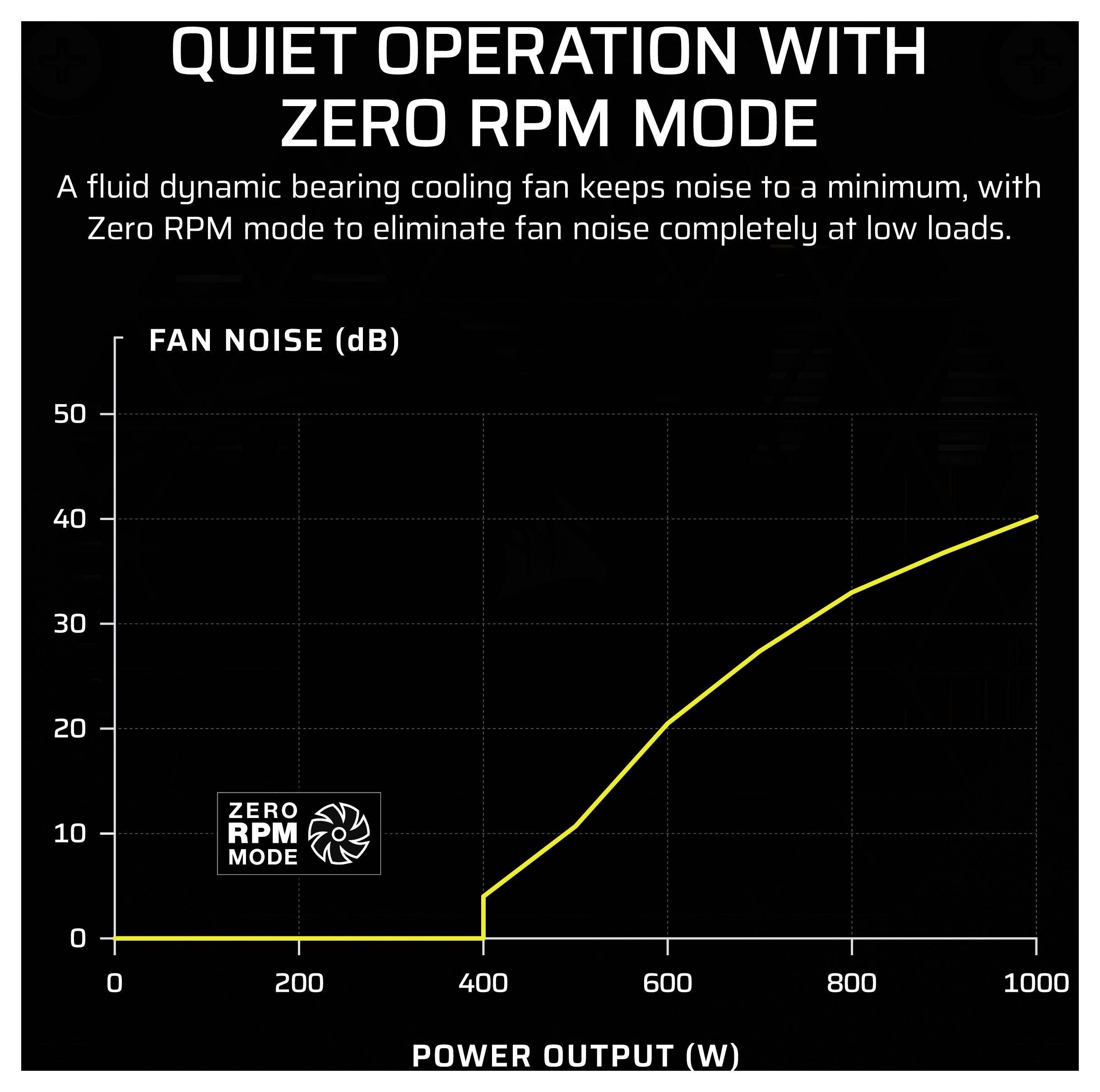

QUIET OPERATION WITH ZERO RPM MODE
A cooling fan with liquid storage reduces noise to a minimum. The Zero RPM mode ensures that no fan noise occurs at low to medium load.

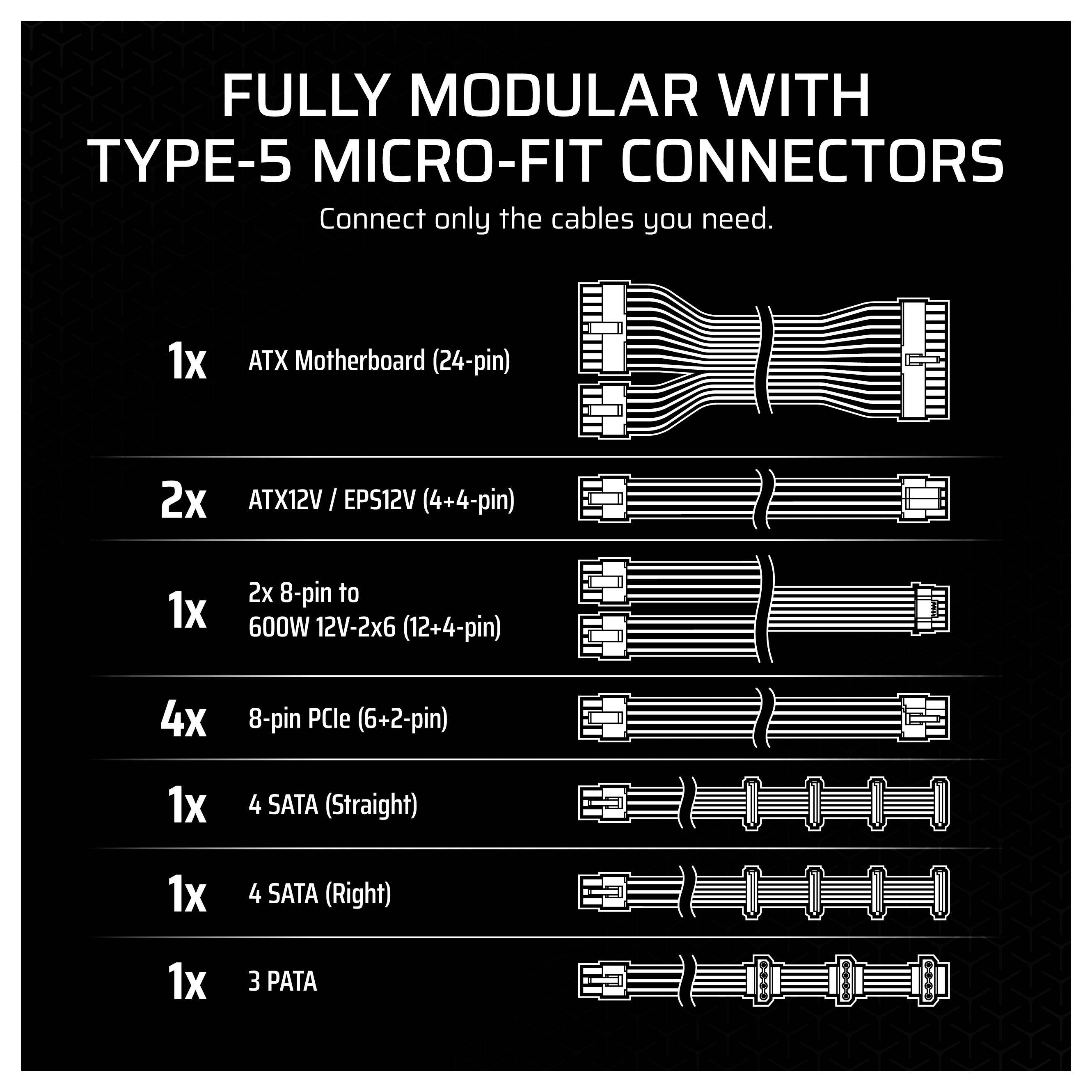

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTOR
Connect only that, WAS you really need, and use the flexible wiring to reduce the space required for a proper cable management in small casings.
