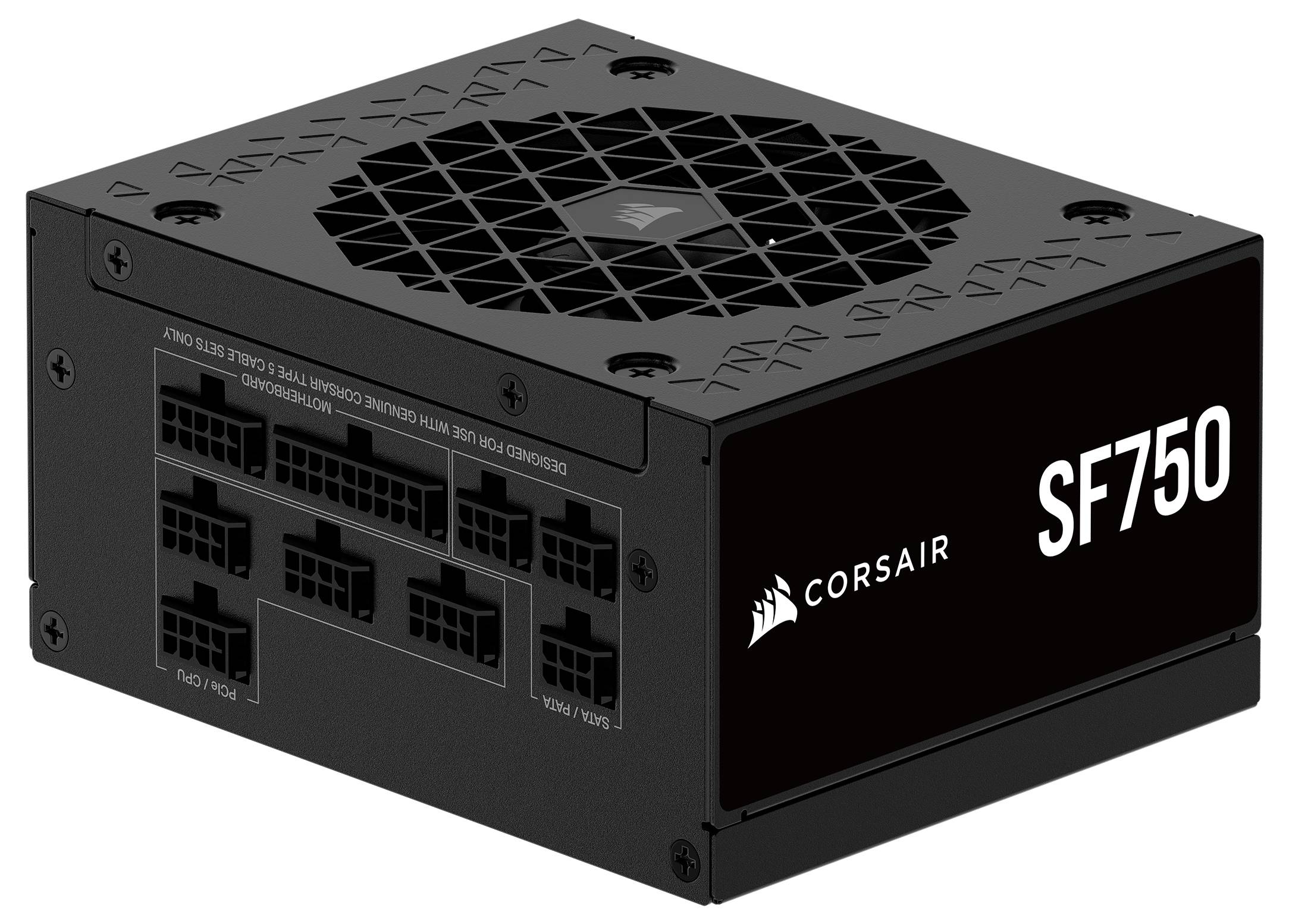

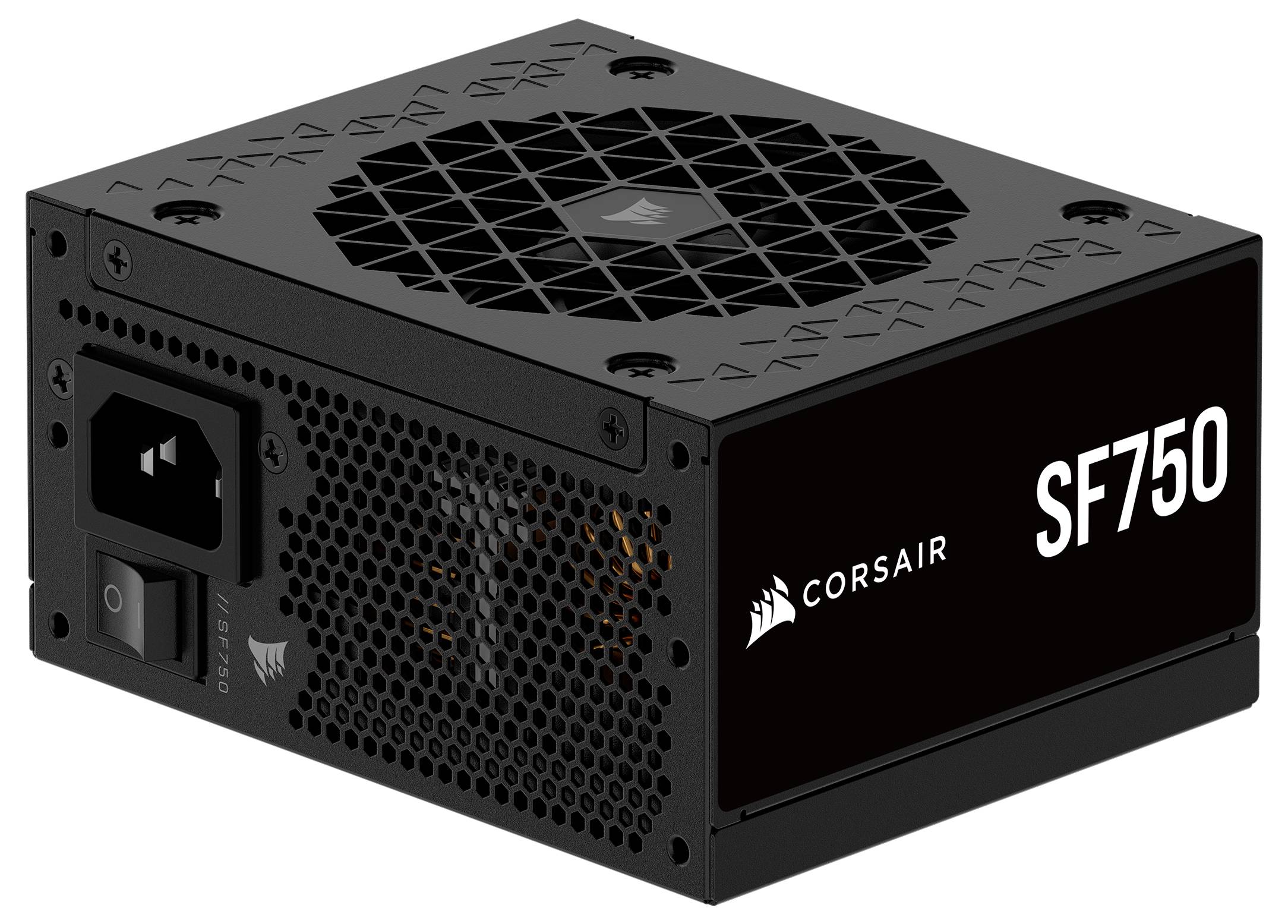

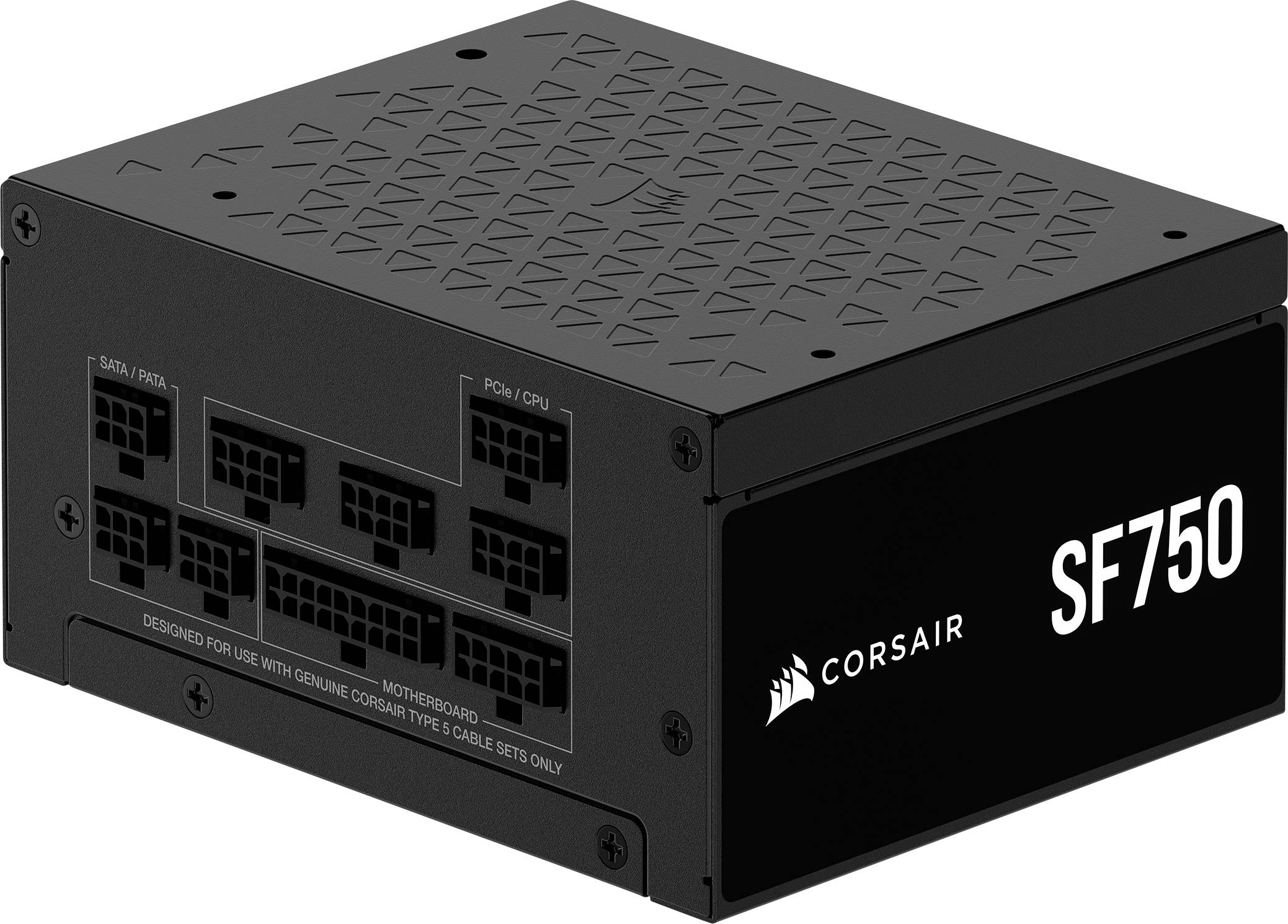

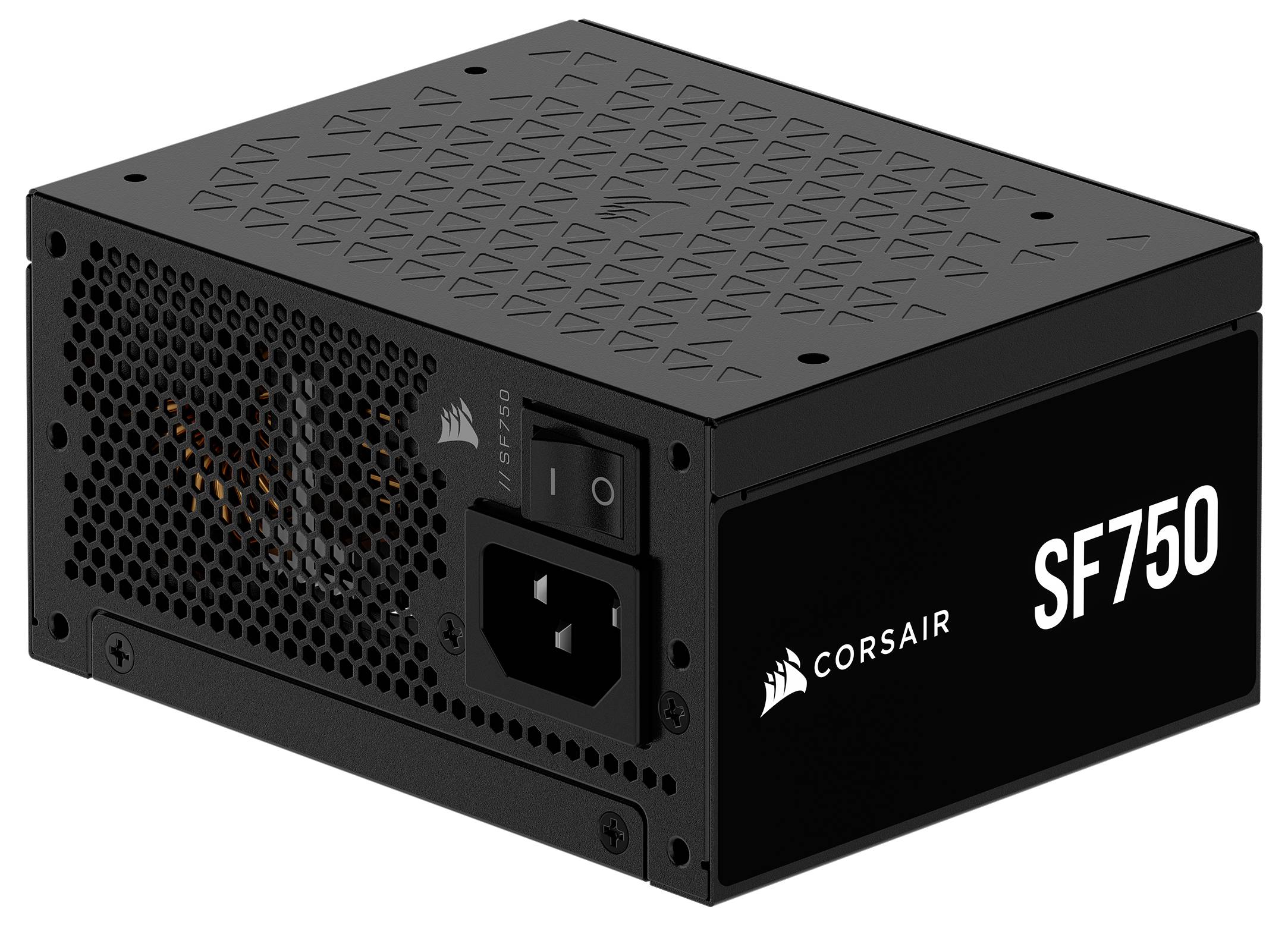

Corsair SF Series SF750 PC power supply unit 750 W SFX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
750 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
SFX
Corsair SF Series SF750 PC power supply unit
Highlights & Details
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) 2x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Fan diameter 9.2 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
750 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
SFX
- Factory colour
Black

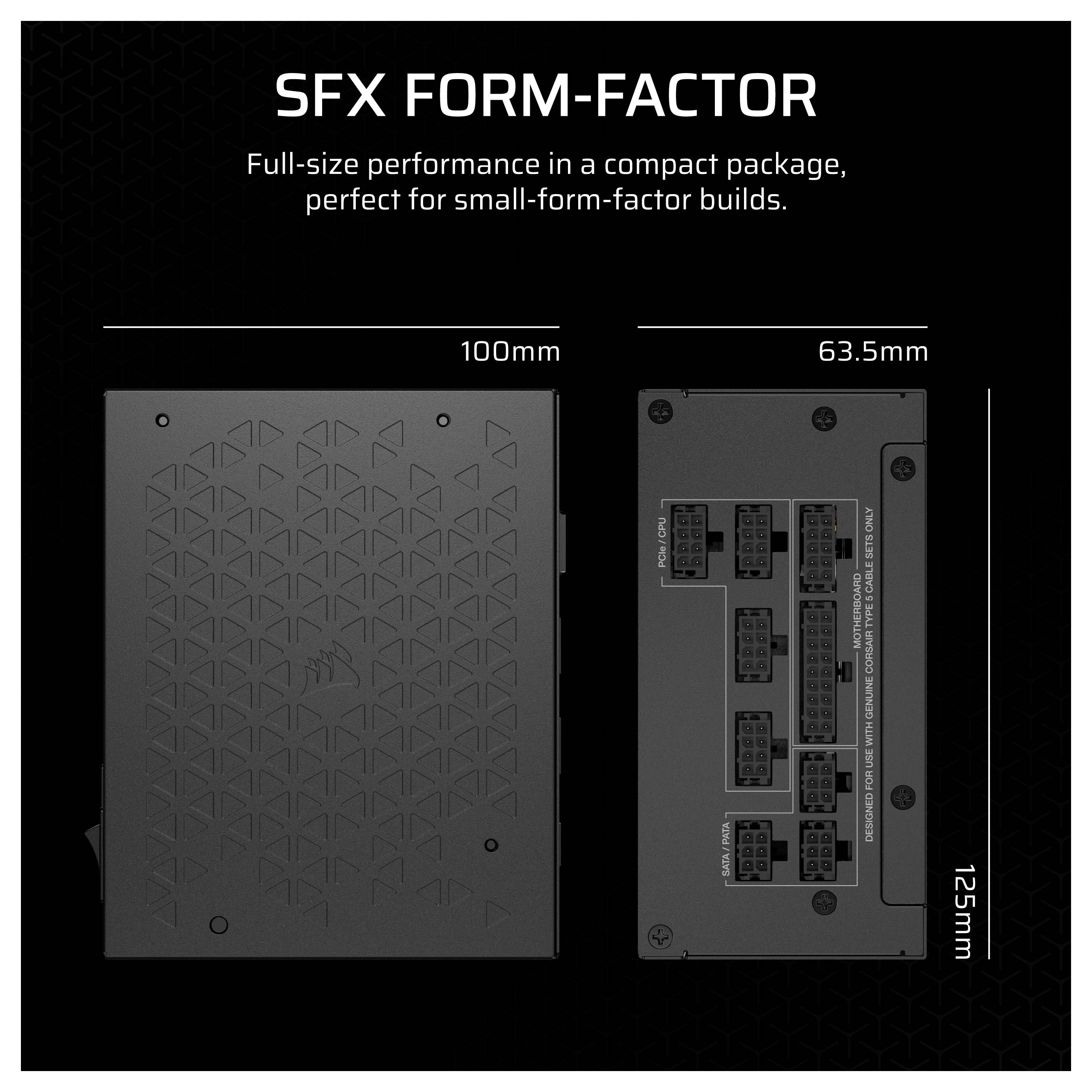

- Dim
(W x H x D) 1250 x 635 x 100 mm
- Depth
100 mm
- Height
635 mm
- Width
1250 mm
- Weight
2.15 kg
- +12 V/DC (1)
62.5 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 8-pin 12 V
2
- 24-pin
1
- 4-pin 12 V
3
- 6-pin PCIe
2
- 5-pin SATA
3
- Features
ATX 3.1
PCIe Gen 5.1
- Power rating
501 - 750 W
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Silent mode
yes
- Motherboard power cable length
30 cm
- PCI Express power cable length
40 cm
- EPS power connector (4+4 pin)
yes
- Mean time between failures (MTBF)
100000 h

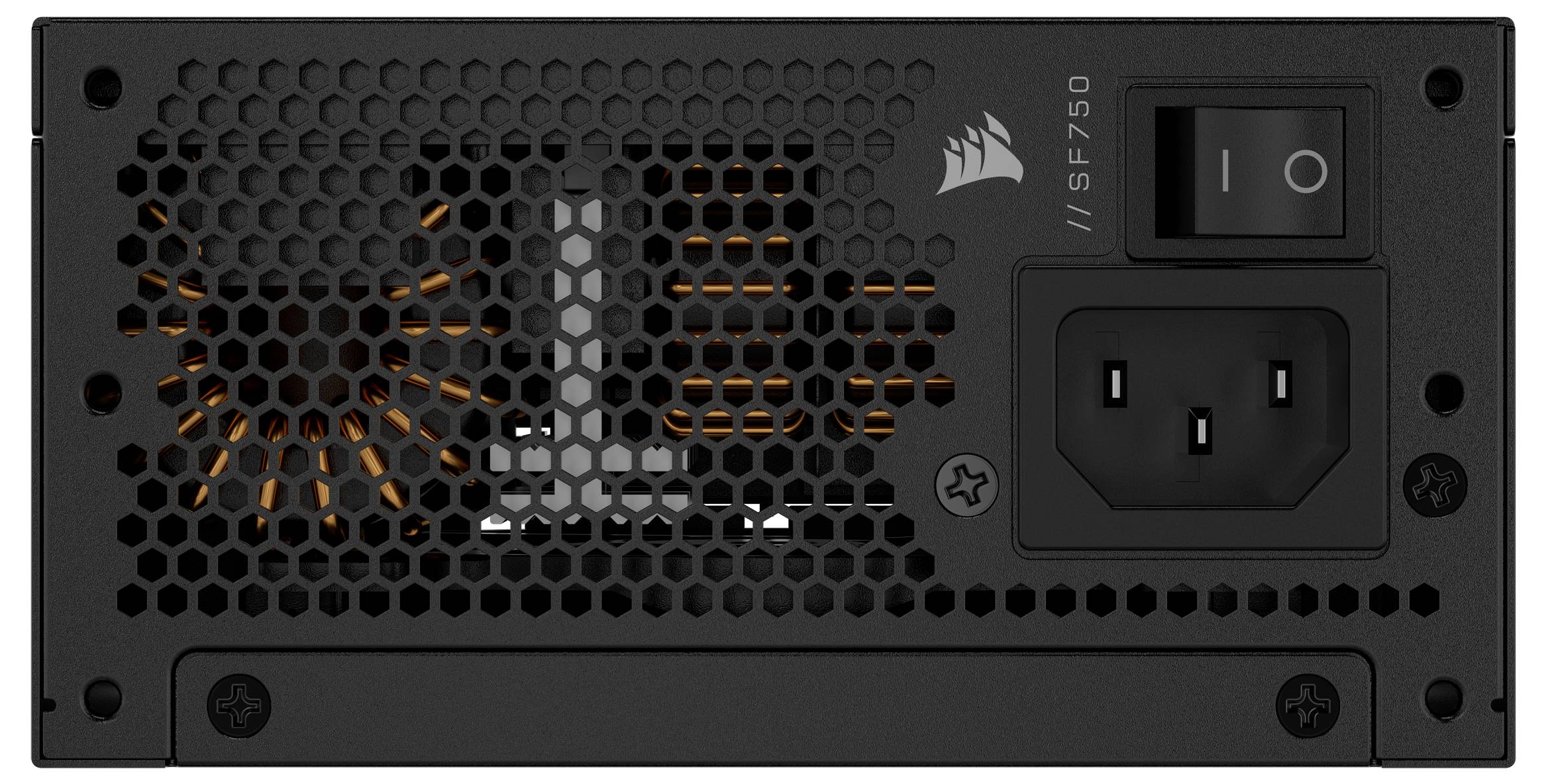

- On/off switch
yes
- Combined power (+3.3V)
130 W
- Combined power (+12V)
750 W
- Combined power (+5V)
130 W
- Combined power (+5Vsb)
15 W
- Number of PATA power connectors
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3533510 Corsair SF Series SF750 PC power supply unit 750 W SFX 80 PLUS Platinum
Description
SMALL BUT POWERFUL
Don't be fooled by its size - this SFX power supply has a 80 PLUS Platinum certified power and is perfectly suitable for the most powerful PCs with a small form factor.
CONTINUOUS OPERATING TEMPERATURE OF 50 °C.
Guaranteed a reliable power supply for your SFF PC even under high loads.
CAPACITORS DESIGNED AT 105 °C.
Designed for reliable performance and long service life through the exclusive use of Japanese electrolytic capacitors of industrial grade class with 105 degree specification.
ATX 3.1 CERTIFIED
The ATX 3.1 standard requires a high degree of reliability and performance efficiency. While many power supplies from Corsair meet these requirements, the SF Series power supplies are officially certified to conform to ATX 3.1.
Including PCIe 5.1 12V-2x6 GPU-cable for use with modern graphics cards like the Nvidia GeForce RTX 40 series.

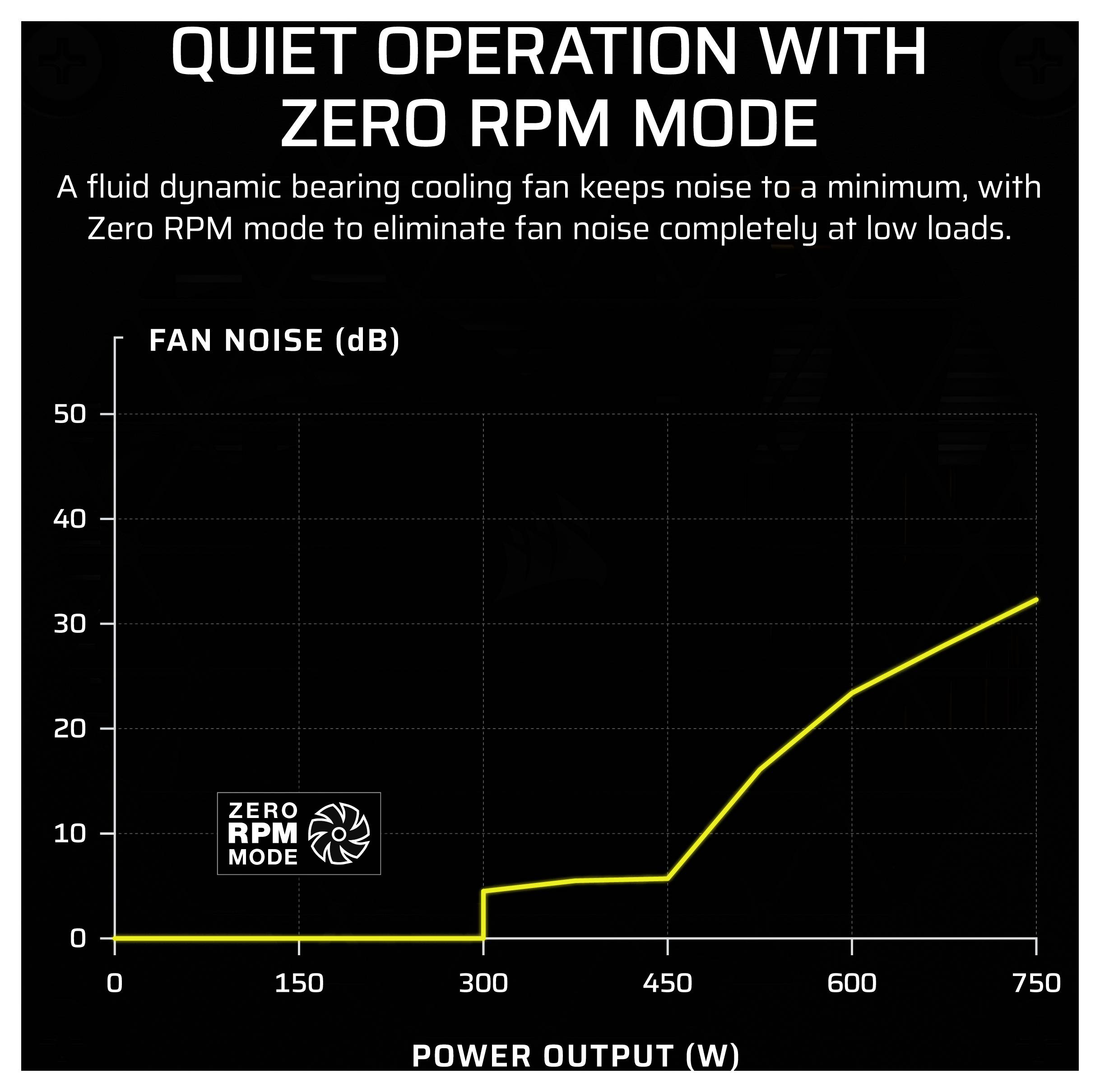

QUIET OPERATION WITH ZERO RPM MODE
A cooling fan with liquid storage reduces noise to a minimum. The Zero RPM mode ensures that no fan noise occurs at low to medium load.

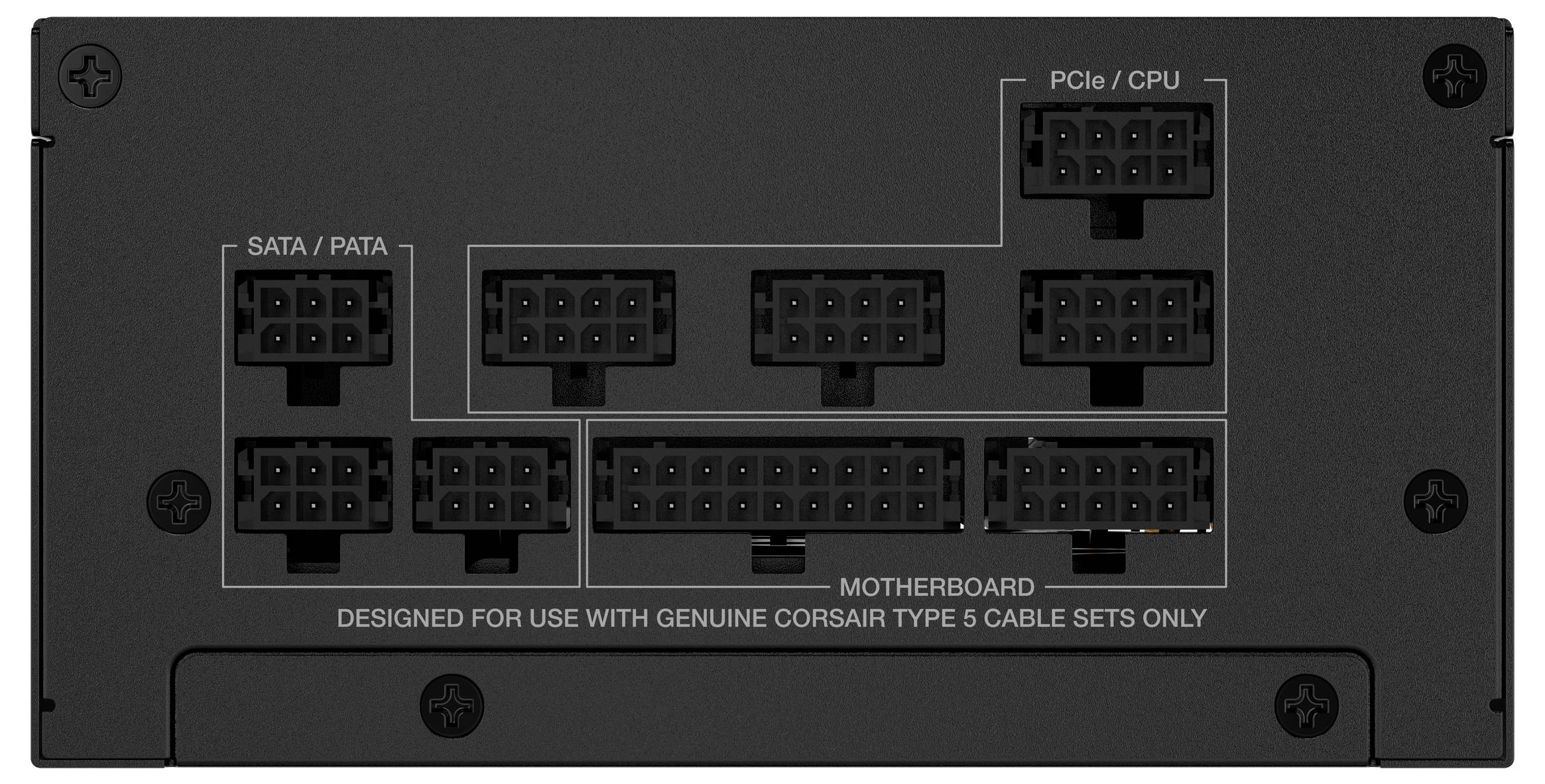

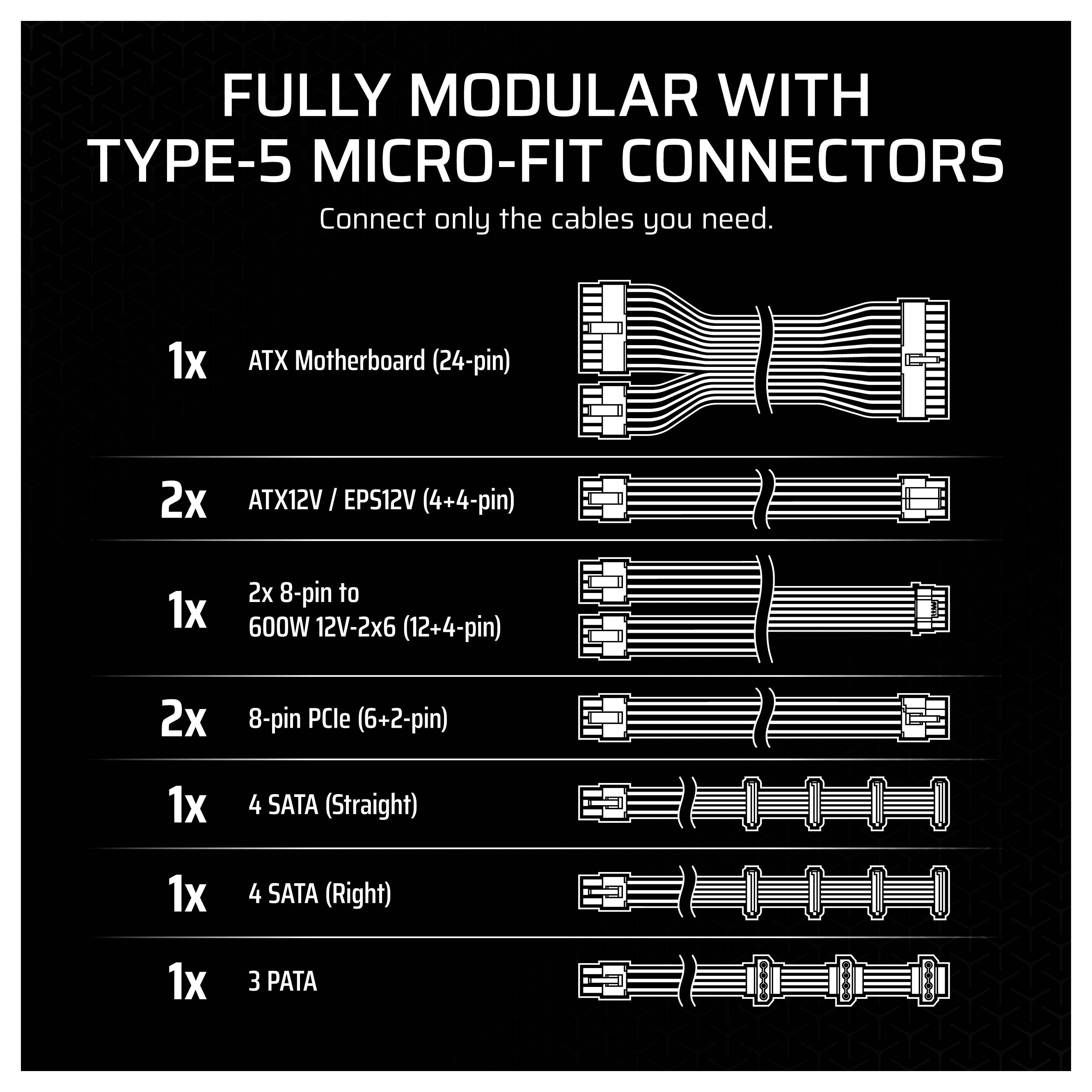

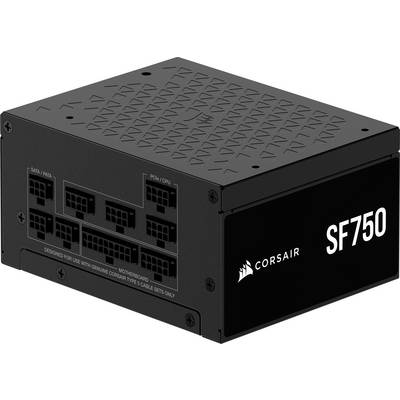

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTOR
Connect only that, WAS you really need, and use the flexible wiring to reduce the space required for a proper cable management in small casings.
This text is machine translated.
Features
- Certification with 80 PLUS Platinum
- ATX 3.1 compliant, PCIe 5.1 support
- Fully modular, Micro-Fit mains plug type 5

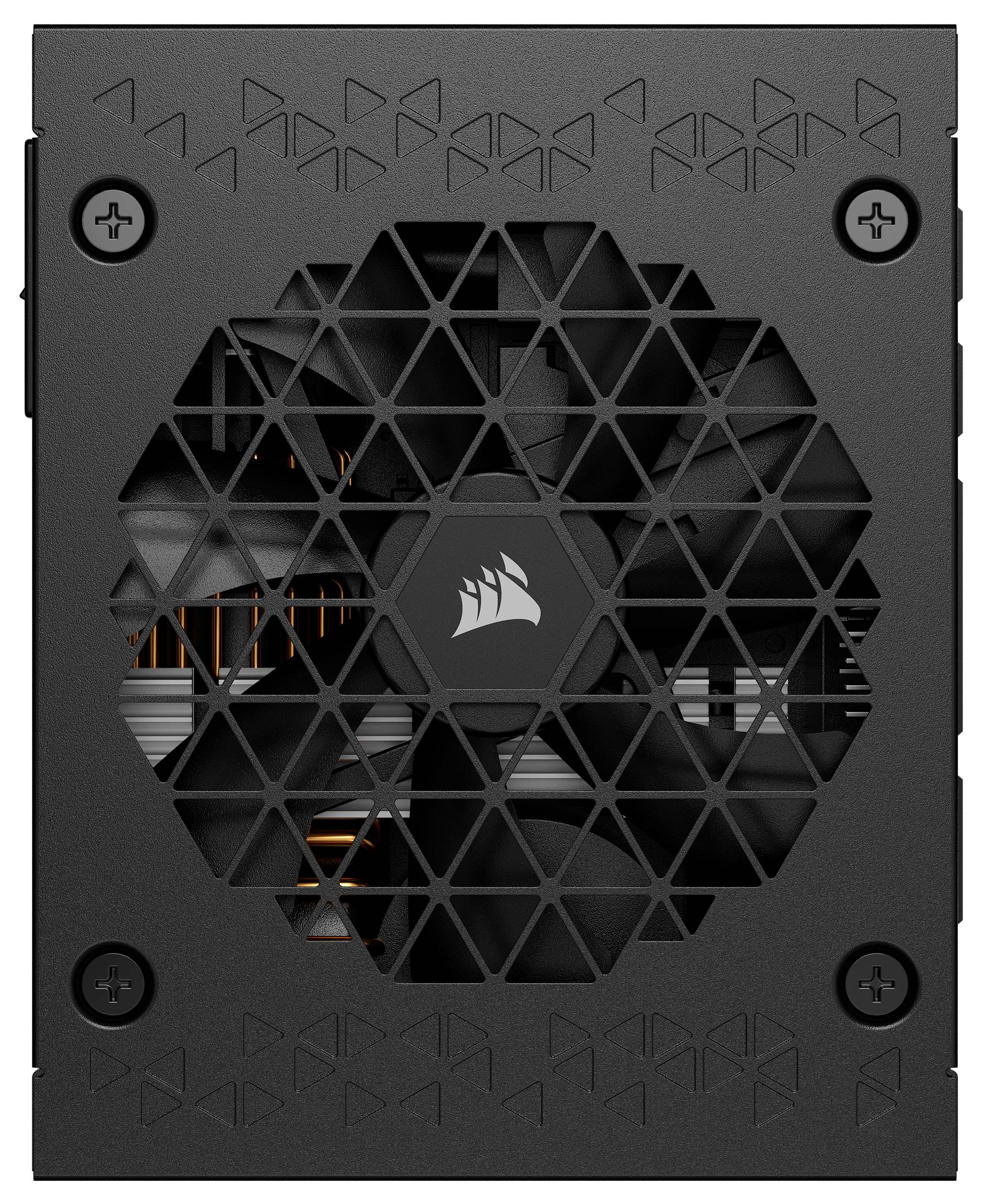

- 92-mm-PWM cooling fan with zero RPM-mode
