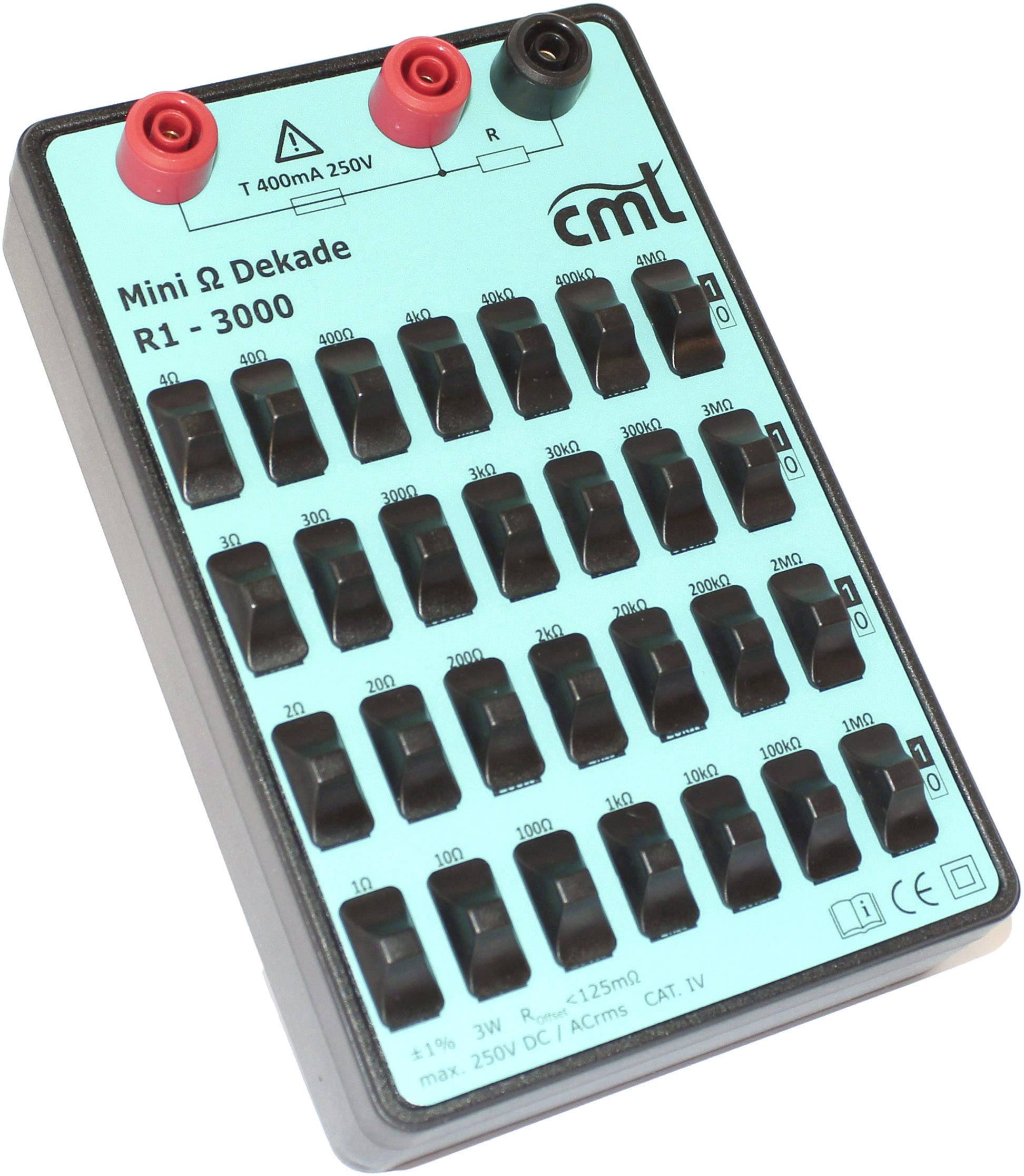

Cosinus R1-3000 Decade box Calibrated to (ISO standards) Resistance 1 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
R1-3000 resistance decade - ISO calibrated
- Range 1 Ω - 11.11111 MΩ
- Power rating 3 W
- max. 250 V/AC/DC
Technical specifications
- Connection: 4 mm safety sockets
- Steps
1 Ω
- Max. supply voltage
250 V
- Dim
(L x W x H) 170 x 110 x 40 mm
- Weight
320 g
- Height
40 mm
- Length
170 mm
- Width
110 mm
ISO standards
- Functions
Resistance
- Tolerance
1 %
- Calibration service
5 calibration values per range; ohms, capacitance, inductance
- Weight, information
approx.
- Product type
Decade box
Documents & Downloads
Datasheet
Datasheet 2454175 Cosinus R1-3000 Decade box Calibrated to (ISO standards) Resistance 1 %
User & Safety Instructions
User & Safety Instructions 2454175 Cosinus R1-3000 Decade box Calibrated to (ISO standards) Resistance 1 %
Description
The R1 - 3000, compared to the R1 - 1000 a higher maximum power of 3 W. In addition, it is possible to protect the Decade by using a quick fuse against overload (by default, a 400 mA fuse is supplied) An unsecured resistance grip makes it possible to go around the internal resistance of the fuse. This ensures increased accuracy especially for small resistance values.
This text is machine translated.
This text is machine translated.
Features
- Stable plastic housing
- Long-life, low-resistance slide switches
Hints
Please note the sample calibration certificate stored under "Downloads" for the scope of the calibration.
