Cotek UP-200-48 SMPSU 48 V DC 4.2 A 200 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

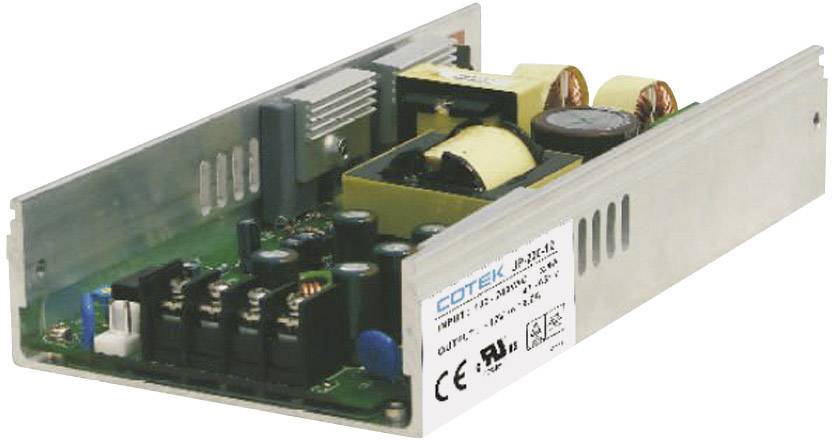

Installation power supply unit UP-200-48
- High-temperature components
- Output can be teleswitched
- High degree of efficiency
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
4.2 A
- Output current (max.) - rounded
4.2 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 202 x 102 x 38 mm
- Output voltage (max.)
48 V DC
200 W
- No. of outputs
2 x
- Output current 1
4.2 A
- Type
open
- Weight
0.7 kg
- Width
102 mm
- Height
38 mm
- Length
202 mm
- Type
UP-200-48
200 W
- Connection
Screw terminals
- PFC
Yes
- Input voltage
90 - 264 V/AC, 127 - 370 V DC
- Interference suppression
EN55022 Class B, EN61204-3, EN61000-6-3
Documents & Downloads
Warranty Terms
Warranty Terms 513384 Cotek UP-200-48 SMPSU 48 V DC 4.2 A 200 W 1 pc(s)
Description
Open installation power supply in compact U-profile with very high power density.
Features
- Active PFC
- Protected against short-circuit, overload and temperature
- High operating temperature up to 70 °C (with derating)
- Power-OK contact
- Vibration-proof up to 2G
- Adjustable output voltage
Hints
For the connection is 3 x crimp contact (741112) and 1 x housing (740641) is needed.
