Cougar CGR-CF-MHP12HB-W PC fan White (W x H x D) 120 x 25 x 120 mm
EAN:
Part number:
Item no:
Highlights & Details

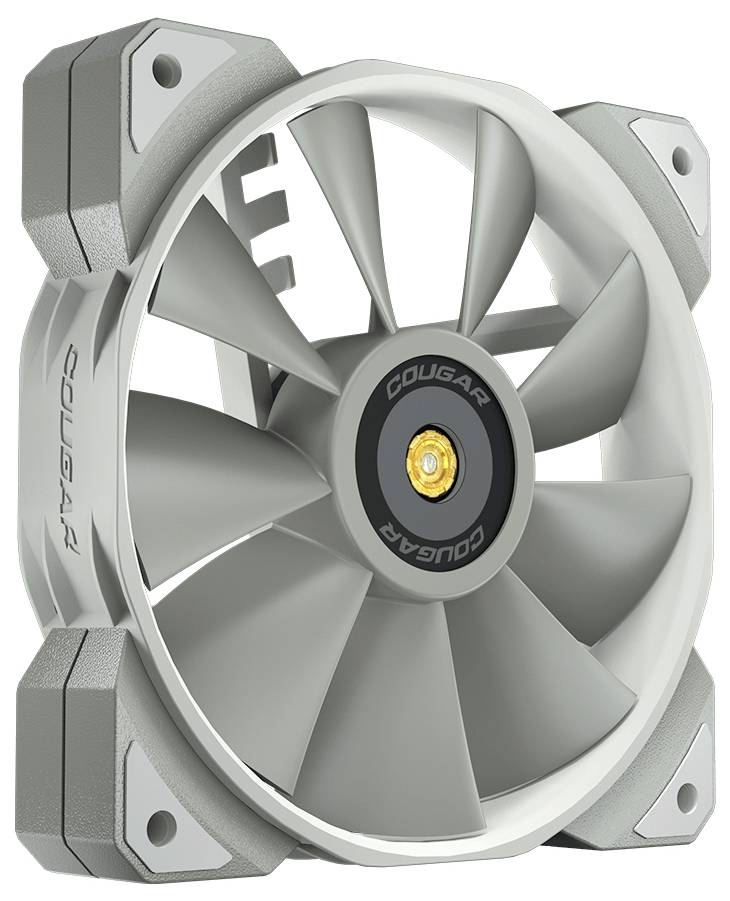

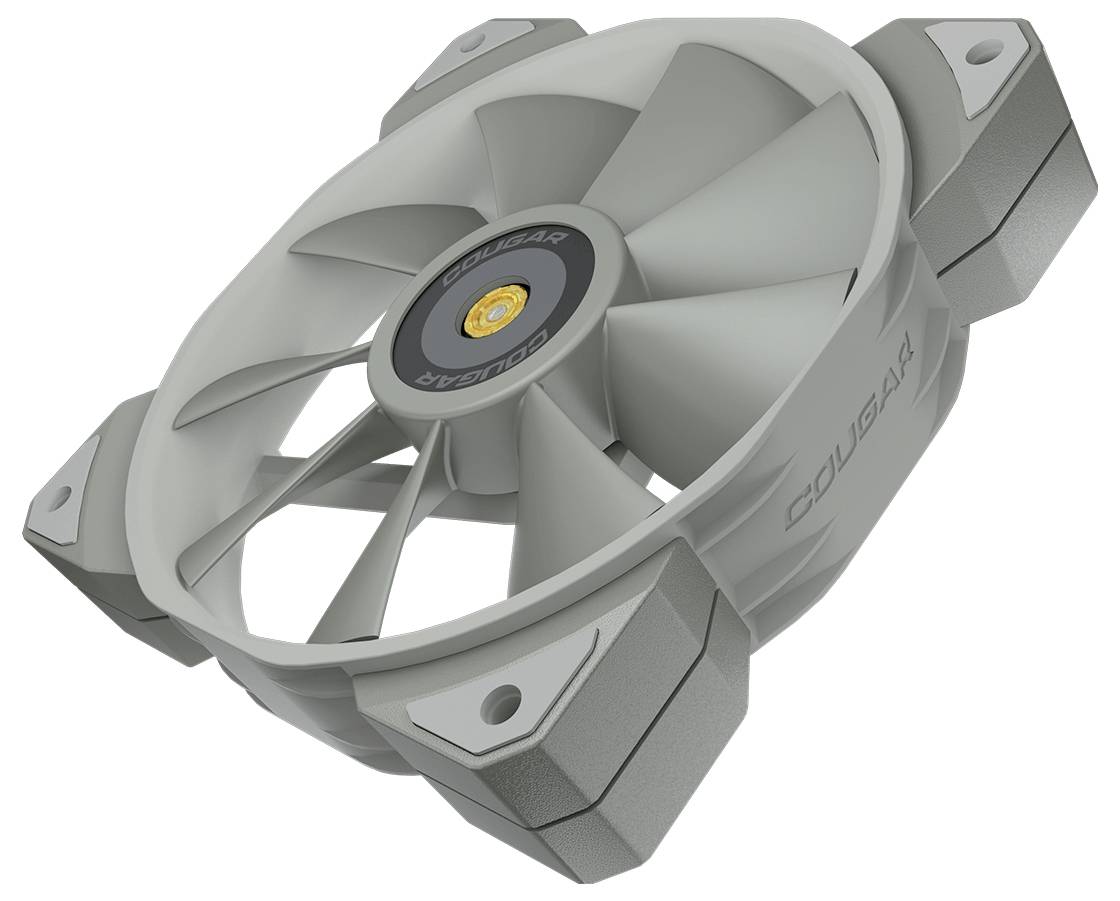

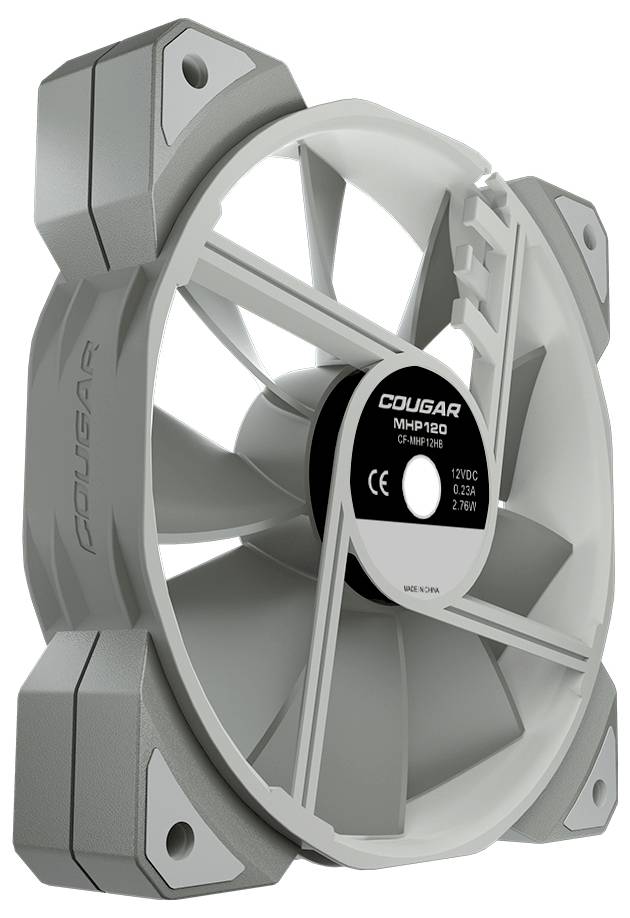

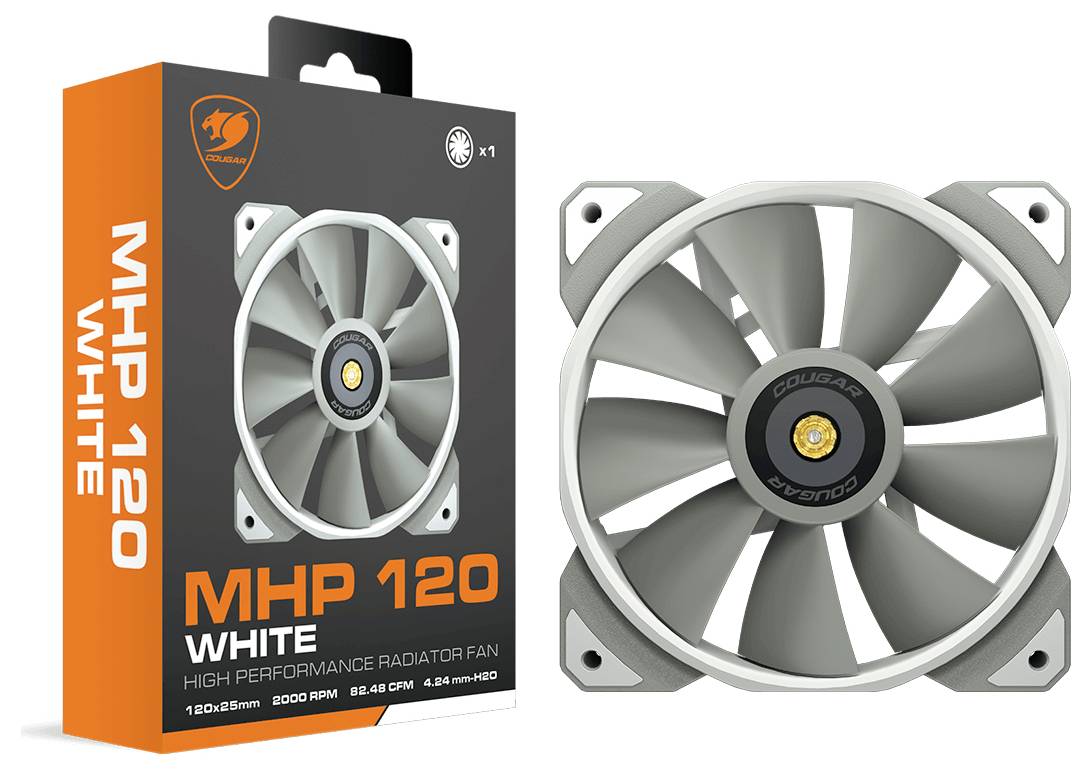

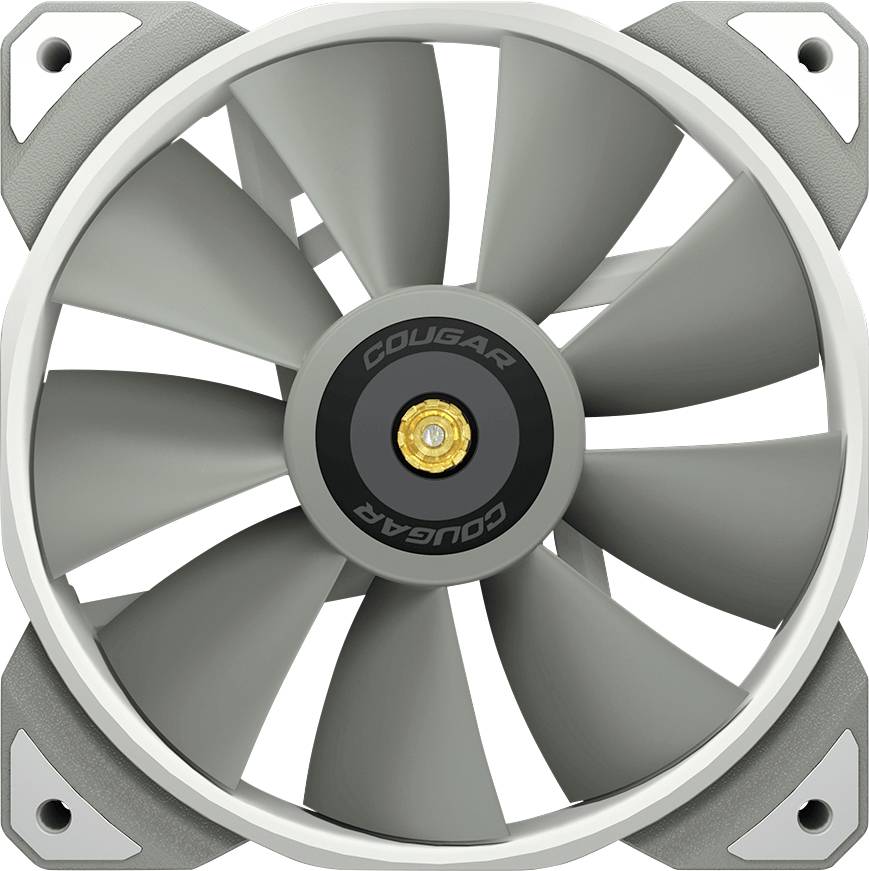

Cougar CGR-CF-MHP12HB-W PC fan
- Computer housing air cooling 12 cm
- 82.48 CFM 4.24 mmH2O
- Support for pulse width modulation
- 120 x 120 x 25mm
- White
- 1 pieces(s)
Technical specifications
- Fan diameter 12 cm
- Number of fans: 1 fans
- 4-pin fan connector
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
34.5 dB
- Noise emission
30.1 dB - 40 dB
- Rotational speed (min.)
600 U/min
- Air discharge
143.53 m³/h
- Rotational speed (max.)
2000 U/min
- Factory colour
White
- Weight
186 g
- Width
120 mm
- Height
25 mm
- Depth
120 mm
- Dim
(W x H x D) 120 x 25 x 120 mm
- Content
1 pc(s)
- Cable length
0.2 m
- Material
Metal
- Type
Air cooling
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3369607 Cougar CGR-CF-MHP12HB-W PC fan White (W x H x D) 120 x 25 x 120 mm
Description
High power exhaust
The MHP 120 fan is suitable for any fan position within the chassis due to structural adjustments and precision adjustments. In addition, the metal-reinforced engine hub and the metallic bearing shell design drastically increases stability and cooling performance. The MHP120 is the perfect choice for cooling fan upgrades!
Extremely fast fan
With 2000 rpm (max.)
The MHP 120 delivers a high air flow rate of 82.48 CFM/143.53 m3/h and a high static pressure of 4.24mmH2O, confirmed by data from certified professional test laboratories. In addition, it has a high fan speed, which can reach up to 2000 rpm and offers an excellent power. The MHP 120 is the fan that dominates!
Metal-reinforced
Motor hub and housing
With the metal-reinforced engine hub and the metallic bearing housing, the MHP 120 fan produces excellent rotation stability, which raises power and longevity to a completely new level.
HDB-bearing and PWM-control
The MHP 120 is equipped with HDB (Hydro Dynamic Bearing) bearings that extend the life of the fan and effectively reduce the noise level. PMW control technology enables complete fan speed control to achieve a perfect balance between equipment performance and cooling.
Anti-vibration damper
The MHP 120 is equipped with vibration dampers on the four edges of the fan that absorb vibrations. This further reduces noise caused by built-in columns and/or resonances in the housing, and WAS contributes to the low-noise performance of your PC system.
Suitable for cooler / heat sink
With its high static pressure level the MHP 120 is an excellent choice for most radiators and heat sinks and provides for a maximum heat dissipation. And of course the MHP 120 is also compatible and can be easily mounted on most of the air/water coolers from other brands.
