Name: Cougar CGR-CF-MHP12HB3-W PC fan White (W x H x D) 120 x 25 x 120 mm
Brand: Cougar
SKU: 3369604

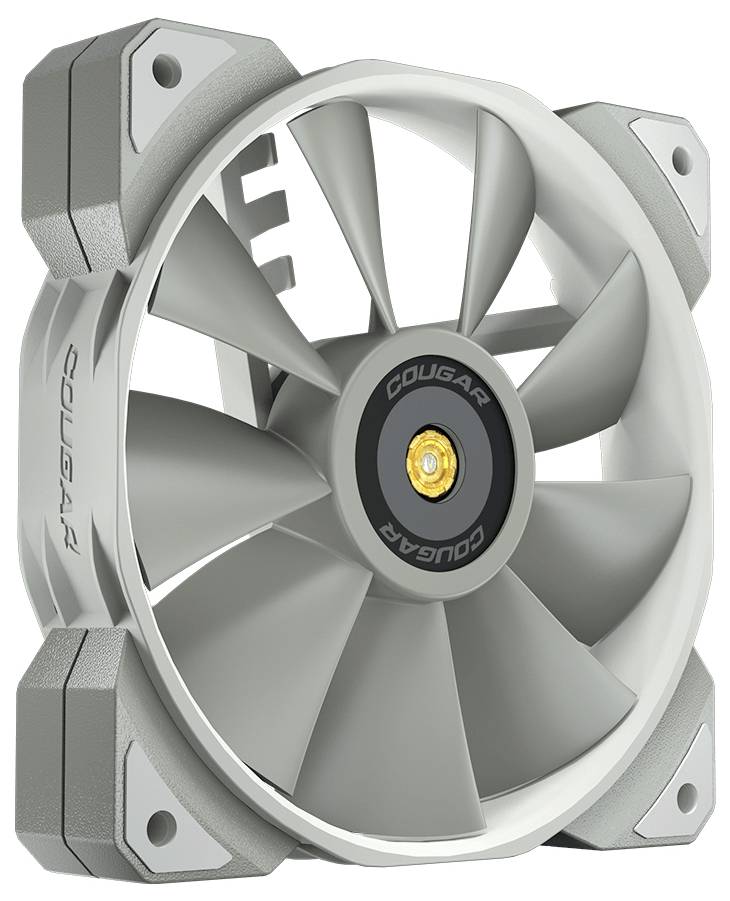

A grey computer fan with an octagonal frame and multiple blades, suitable for cooling in PC cases.

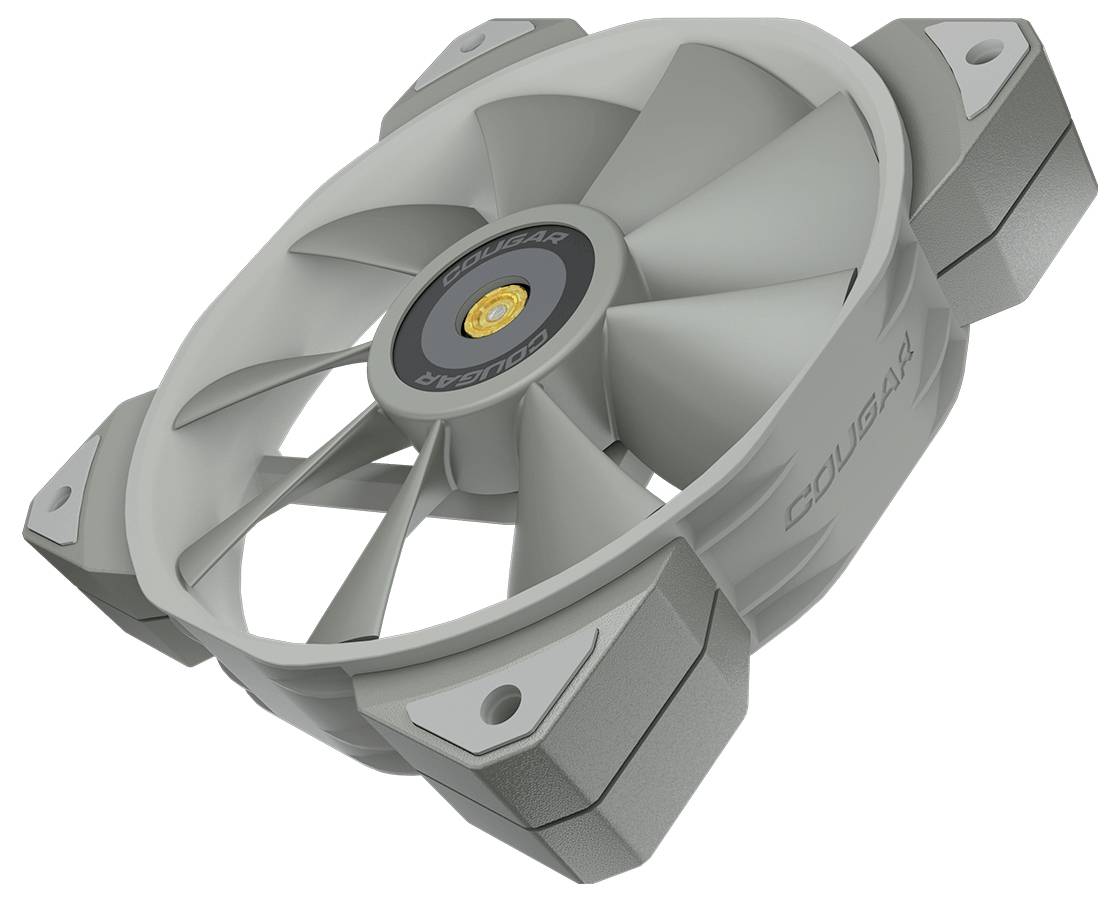

A computer fan with a robust design. The fan blades and the 'COUGAR' inscription on the frame are visible.

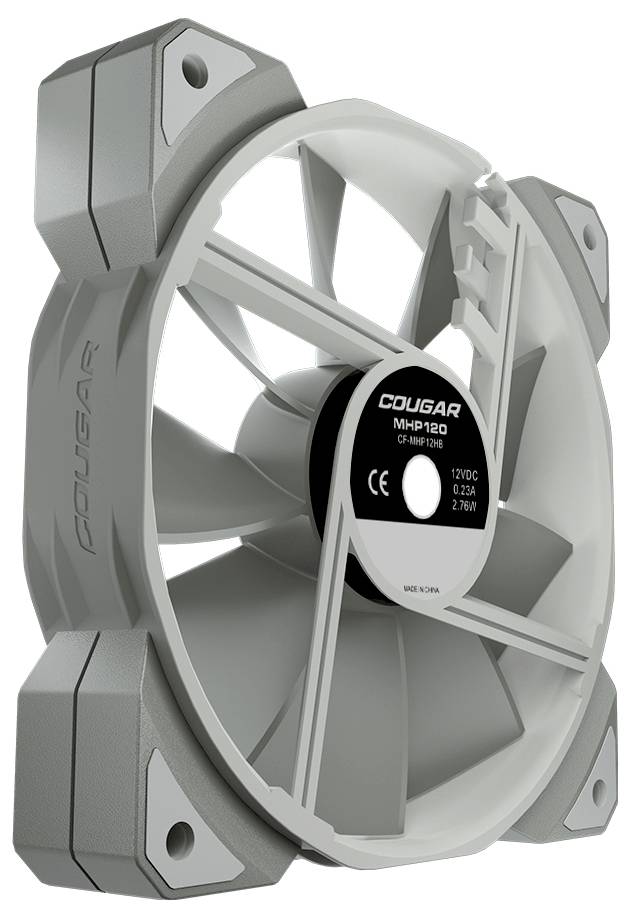

A grey PC fan by Cougar with a black centre and three rotating blades. The MHP120 model is clearly visible.

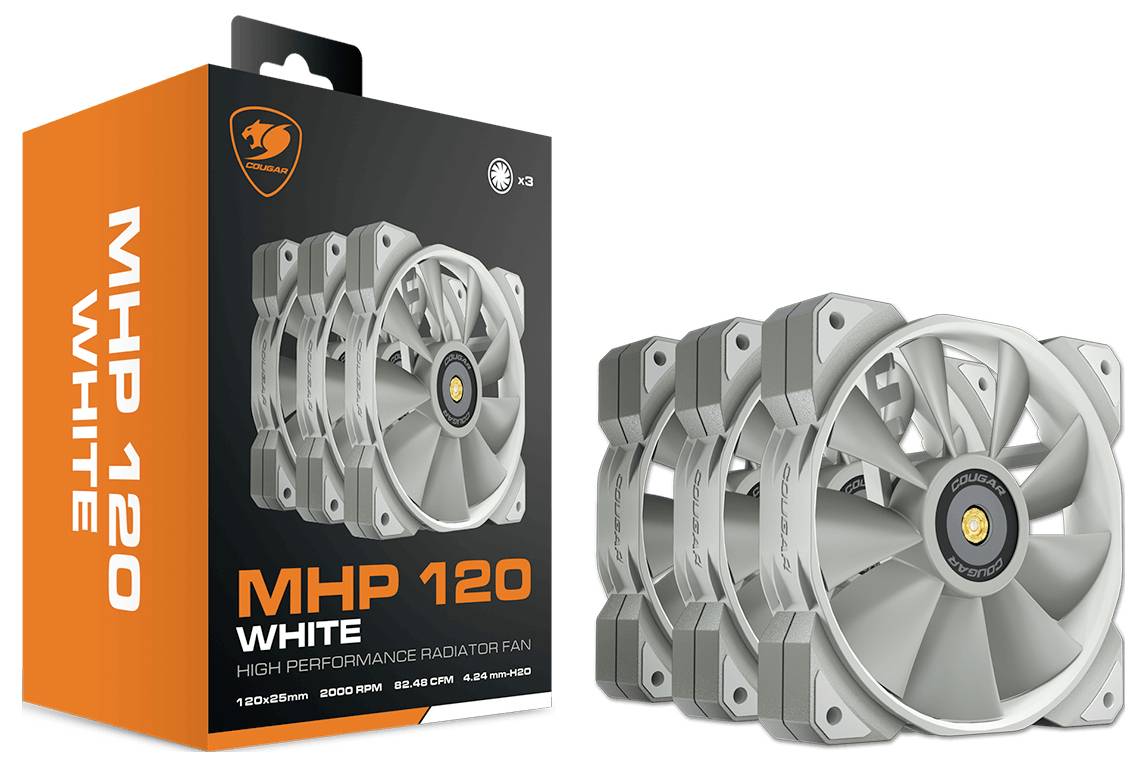

Three white Cougar fans in front of their orange packaging, which reads 'MHP 120 WHITE'. Fans for high-performance cooling.

Cardboard packaging of a white high-performance radiator fan, 'MHP 120 White'. Displays product image and information about performance and features.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cougar CGR-CF-MHP12HB3-W PC fan

Computer housing air cooling 12 cm
82.48 CFM 4.24 mmH2O
Support for pulse width modulation
120 x 120 x 25mm
White
3 pieces(s)

Technical specifications

Fan diameter 12 cm
Number of fans: 3 fans
4-pin fan connector

Product type: PC fan

Fan size: 120 mm

Noise emission (max.): 34.5 dB

Noise emission: 30.1 dB - 40 dB

Rotational speed (min.): 600 U/min

Air discharge: 143.53 m³/h

Rotational speed (max.): 2000 U/min

Factory colour: White

Weight: 559 g

Width: 120 mm

Height: 25 mm

Depth: 120 mm

Dim: (W x H x D) 120 x 25 x 120 mm

Content: 1 pc(s)

Cable length: 0.2 m

Material: Metal

Type: Air cooling

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3369604 Cougar CGR-CF-MHP12HB3-W PC fan White (W x H x D) 120 x 25 x 120 mm

Description

High power exhaust

The MHP 120 fan is suitable for any fan position within the chassis due to structural adjustments and precision adjustments. In addition, the metal-reinforced engine hub and the metallic bearing shell design drastically increases stability and cooling performance. The MHP120 is the perfect choice for cooling fan upgrades!

Extremely fast fan
With 2000 rpm (max.)

The MHP 120 delivers a high air flow rate of 82.48 CFM/143.53 m3/h and a high static pressure of 4.24mmH2O, confirmed by data from certified professional test laboratories. In addition, it has a high fan speed, which can reach up to 2000 rpm and offers an excellent power. The MHP 120 is the fan that dominates!

Metal-reinforced
Motor hub and housing

With the metal-reinforced engine hub and the metallic bearing housing, the MHP 120 fan produces excellent rotation stability, which raises power and longevity to a completely new level.

HDB-bearing and PWM-control

The MHP 120 is equipped with HDB (Hydro Dynamic Bearing) bearings that extend the life of the fan and effectively reduce the noise level. PMW control technology enables complete fan speed control to achieve a perfect balance between equipment performance and cooling.

Anti-vibration damper

The MHP 120 is equipped with vibration dampers on the four edges of the fan that absorb vibrations. This further reduces noise caused by built-in columns and/or resonances in the housing, and WAS contributes to the low-noise performance of your PC system.

Suitable for cooler / heat sink

With its high static pressure level the MHP 120 is an excellent choice for most radiators and heat sinks and provides for a maximum heat dissipation. And of course the MHP 120 is also compatible and can be easily mounted on most of the air/water coolers from other brands.

This text is machine translated.
