Name: Cougar CGR GDN-750 PC power supply unit 750 W ATX 80 PLUS Gold
Brand: Cougar
SKU: 3492129

'Be Quiet! Pure Power 11 FM' power supply unit, black, showing multiple ports and ventilation grill on top, used for computer builds.

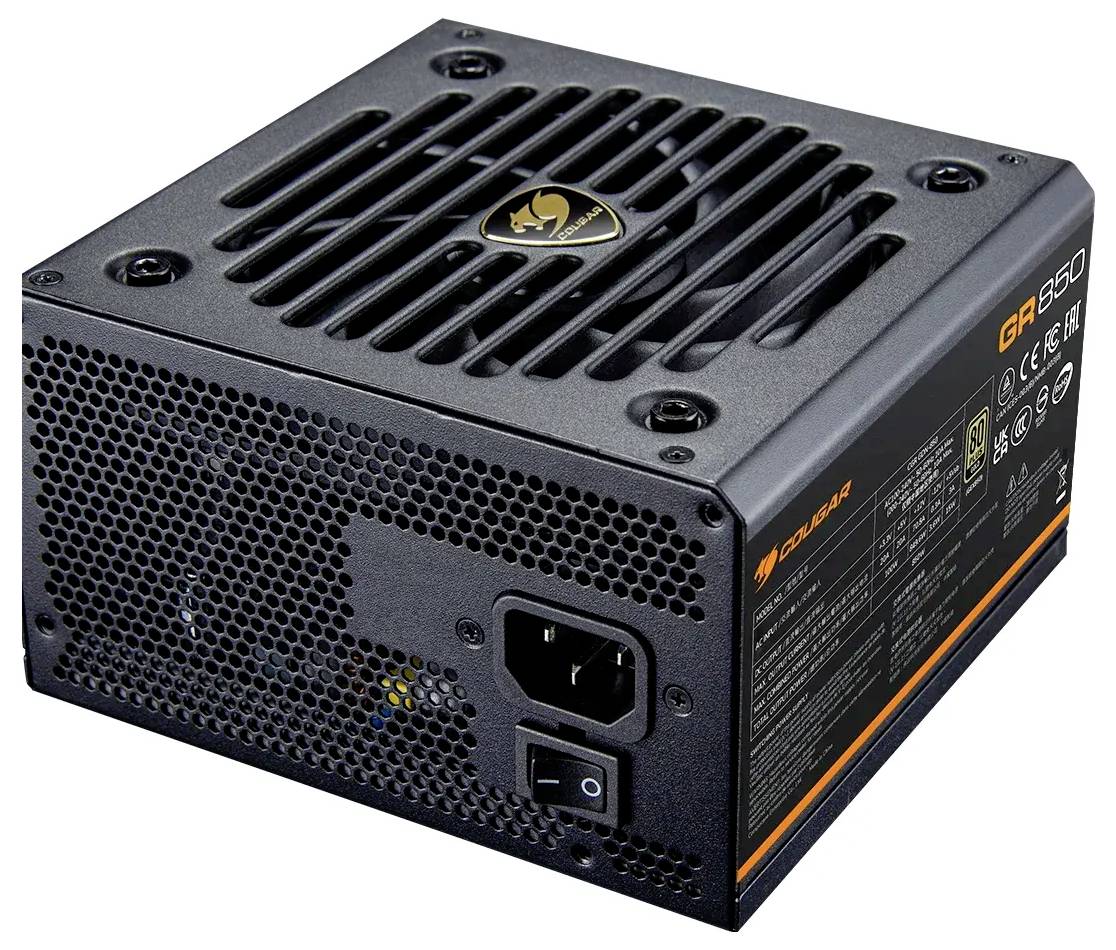

A black computer power supply unit with a vented top and orange accents, featuring connectors on one side and a switch on the back.

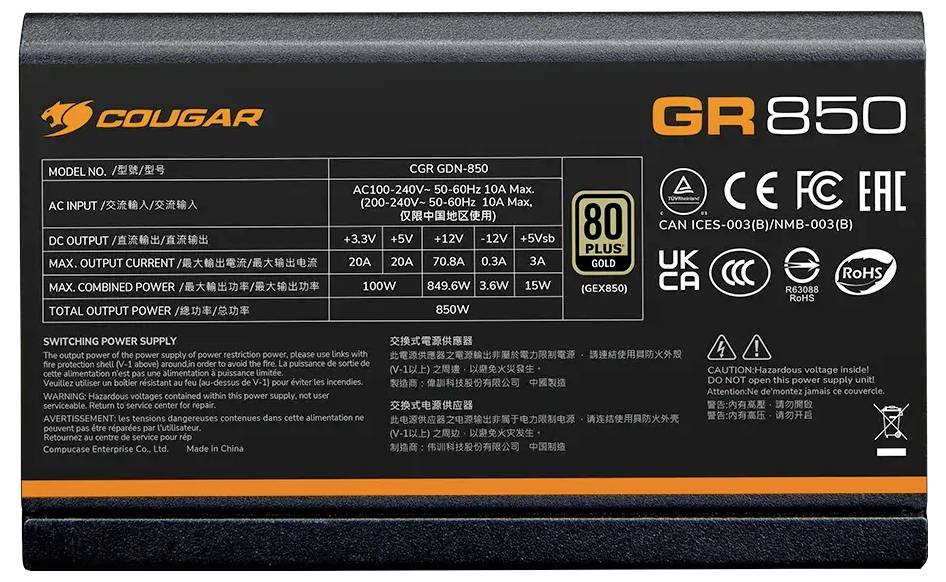

'Cougar GR 850 power supply label' showing model CGR GDN-850, input 100-240V, output max 850W. Certifications and safety symbols displayed.

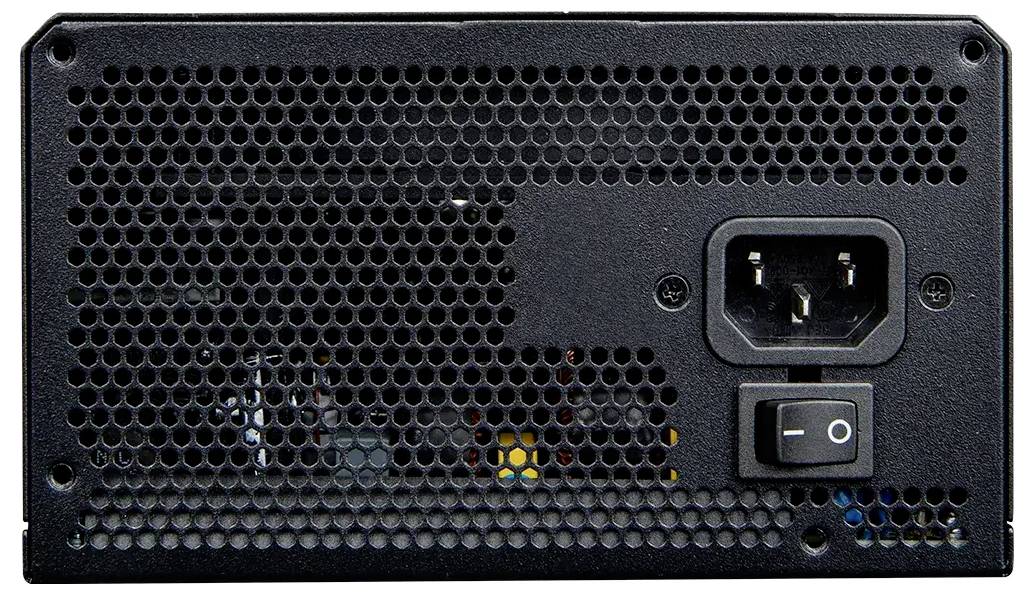

Back view of a computer power supply showing a power socket and an on/off switch, surrounded by a grid-patterned ventilation grille.

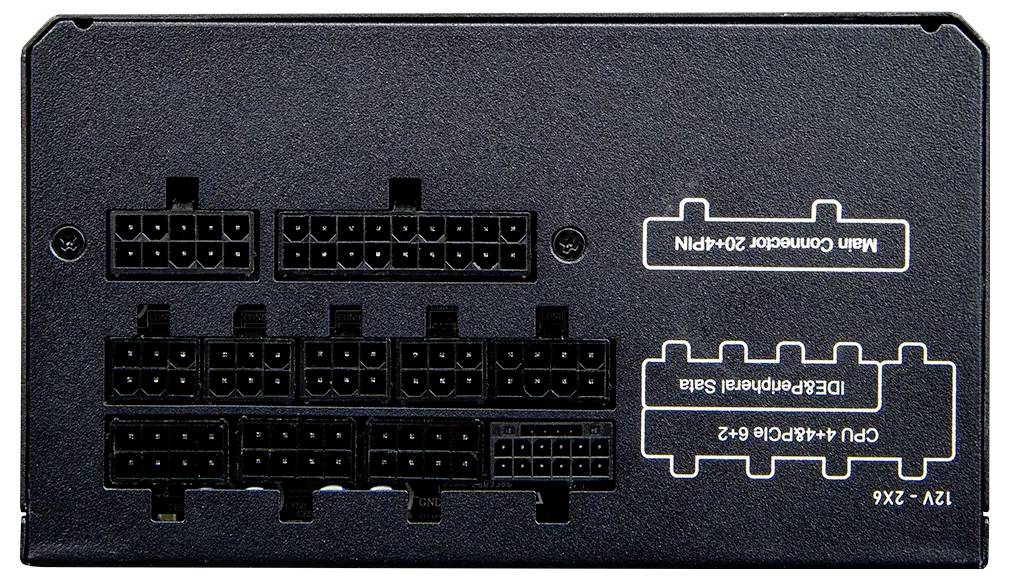

'Computer power supply modular connectors, including Main Connector 20+4Pin, CPU+Peripheral Sata, and CPU 4+4PIN/G+G-2.'

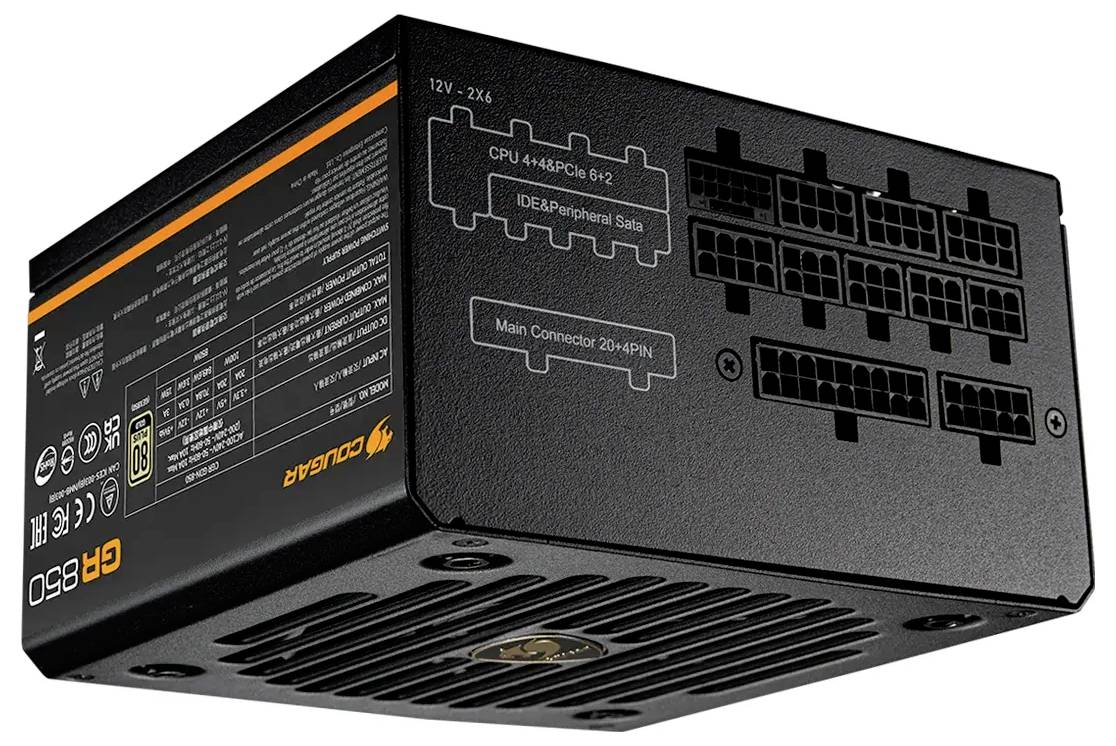

'A Cougar CR850 power supply unit with multiple connection ports for CPU, peripherals, and main connector.'

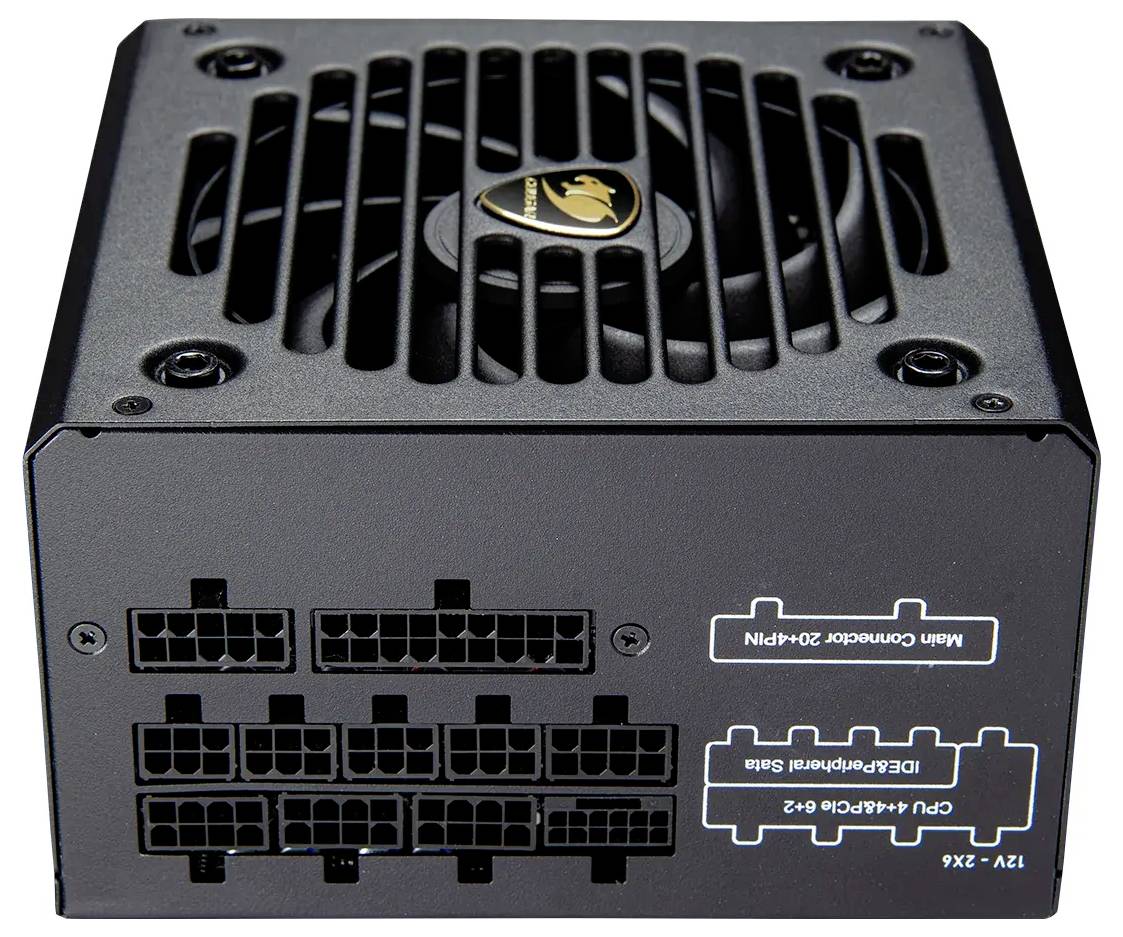

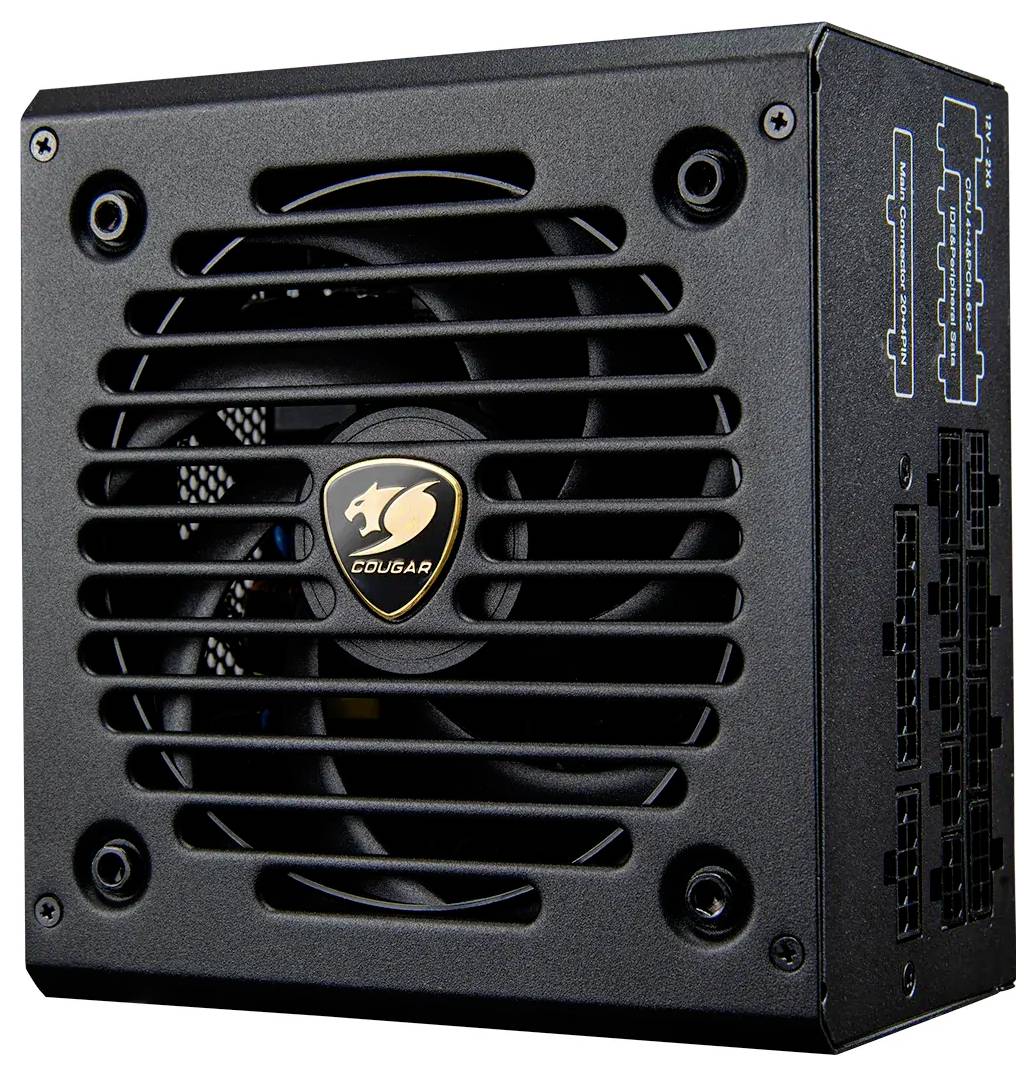

The image shows a black computer power supply unit with a fan on top and multiple connectors on the side for various components.

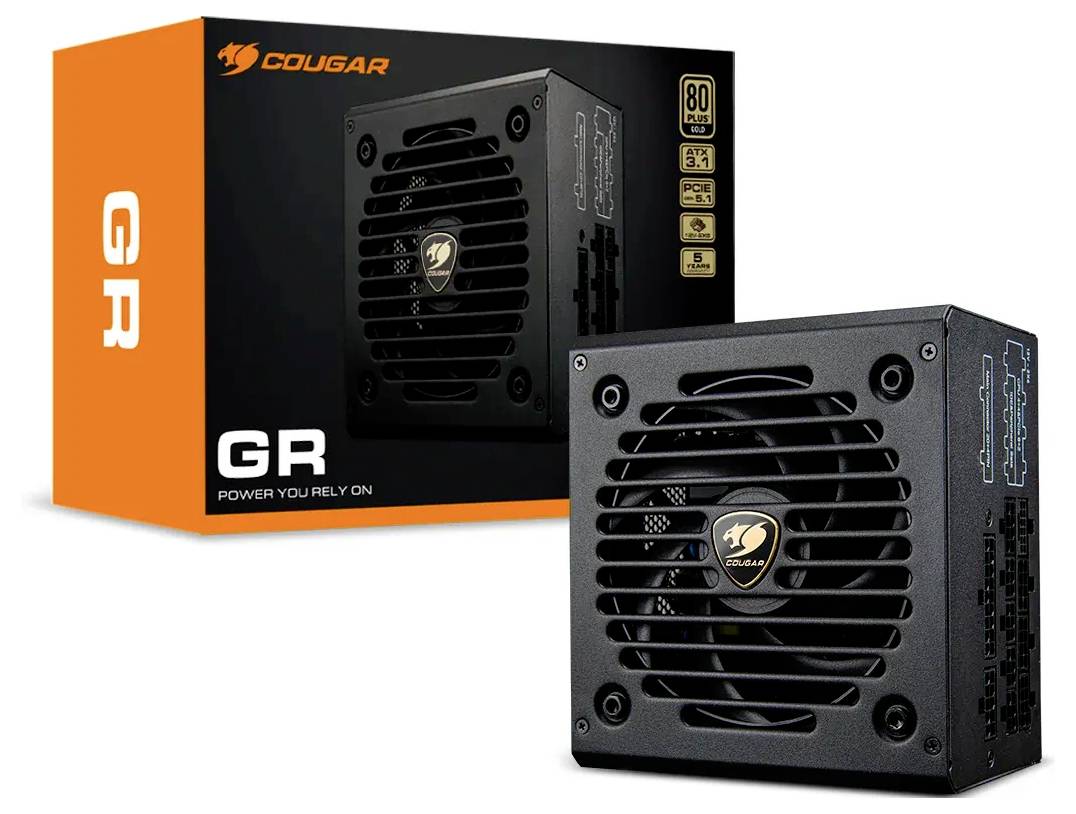

'Cougar GR' power supply unit with fan vent displayed alongside its box. Box highlights 80 Plus certification and key features.

Box packaging for a Cougar GR power supply unit. The box highlights features such as 80 Plus Bronze certification and power efficiency.

1/12

Product type

PC power supply unit

PSU output power

750 W

Modular

Yes

Certification

80 PLUS Gold

Form factor

ATX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cougar CGR GDN-750 PC power supply unit

Power supply unit output 750 W
PCI-Express (6+2-Pin) 2x
Cable management Yes
80 PLUS Gold

Technical specifications

Cooling: Active
Number of fans: 1 fans
CPU connector (4+4 pin): Yes
PCI Express power connections (12+4-pin) Cable length 600 mm
PCI Express power connections (12+4-pin) 1
CPU power Cable length 70 cm
SATA-power cable length 150.450 mm
On/off switch: Yes
AC input frequency 50/60 Hz
Combined current (+3.3V) 100 W
Combined current (+5Vsb): 15 W
Combined current (+5V): 100 W
Combined current (-12V): 3.6 W
Combined current (+12V): 750 W
Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, It provides total voltage
Input current 10 A
Power cable length of motherboard 55 cm
Type of bearing: Gun

Product type: PC power supply unit

PSU output power: 750 W

Modular: Yes

Certification: 80 PLUS Gold

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 140 x 86 x 150 mm

Depth: 150 mm

Height: 86 mm

Width: 140 mm

Weight: 2.2 kg

-12V / DC: 0.3 A

+12 V/DC (1): 62.5 A

5 V DC: 20 A

+5V / DC SB: 3 A

20+4-pin.: 1

4-pin Molex: 2

6-pin PCIe: 2

5-pin SATA: 6

Features: ATX 3.1
PCIe Gen 5.1

Power rating: 501 - 750 W

Fan size: 120 mm

3.3V DC: 20 A

Operating voltage: 100 - 240 V / AC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3492129 Cougar CGR GDN-750 PC power supply unit 750 W ATX 80 PLUS Gold

Description

Cougar Gaming Cougar Power supply GR 750W ATX3.1/PCIE 5.1 / 80 Plus Gold. Total power 750 W, AC input voltage 100 240 V, AC input frequency 50/60 Hz Motherboard connector: 20+4 pin ATX, power cable length of mainboard:55 cm, SATA network cable length:150.450 mm. Purpose: PC, Power Supply Unit (PSU) Form factor: ATX, 80 Plus Certification: 80 PLUS Gold. Product color: Black, cooling: Active, fan diameter: 12 cm.

This text is machine translated.
