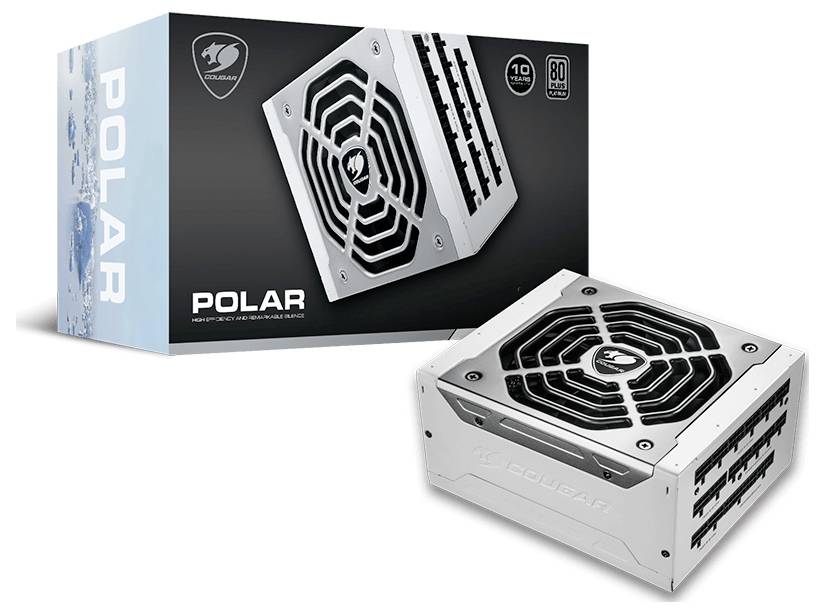

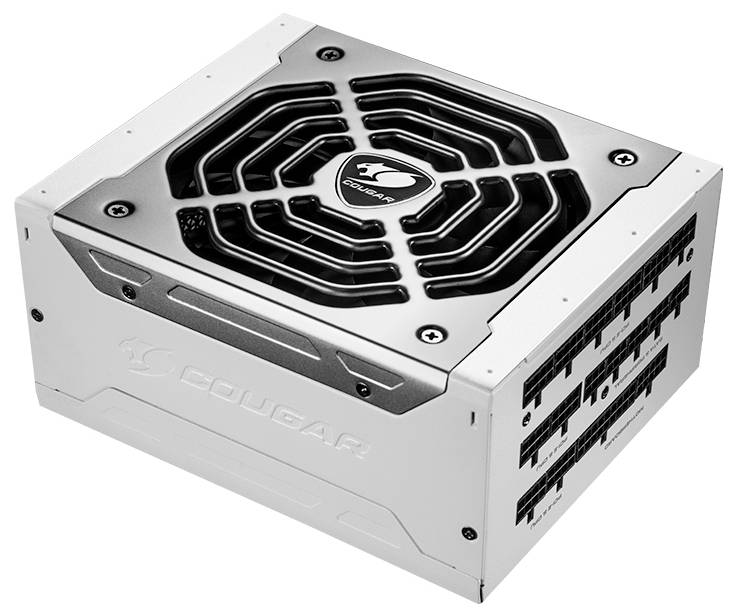

Cougar Polar Power supply unit 1050 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
1050 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
Highlights & Details
Cougar Polar Power supply unit
- Power supply unit output 1050 W
- PCI-Express (6+2-Pin) 7x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Fan diameter 13.5 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
1050 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Silver
- Dim
(W x H x D) 150 x 86 x 180 mm
- Depth
180 mm
- Height
86 mm
- Width
150 mm
- Weight
2.1 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
87.5 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
4
- 6-pin PCIe
7
- 5-pin SATA
12
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Operating temperature (T-T)
10 - 50 °C
- Storage relative humidity (H-H)
5 - 95 %
- Motherboard power cable length
65 cm
- CPU power cable length
65 cm
- PCI Express power cable length
65 cm
- PCI Express connector
yes
- PCI Express power connectors (12-pin)
1
- Mean time between failures (MTBF)
100000 h

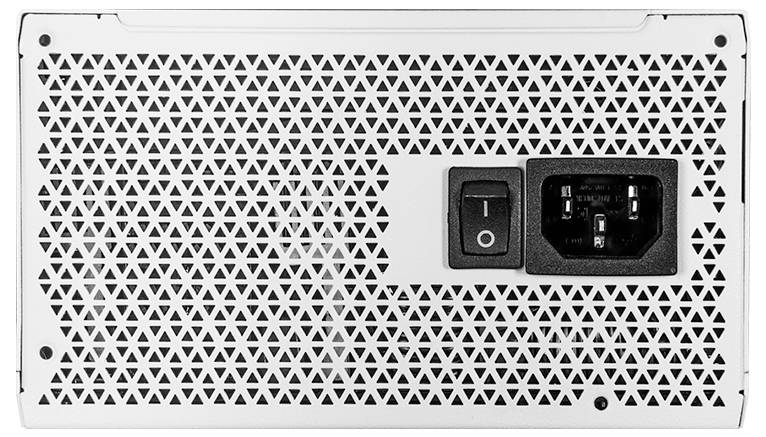

- On/off switch
yes
- Operating relative humidity (H-H)
20 - 85 %
- EPS power connector (8-pin)
yes
- ATX power connector (20+4 pin)
yes
- CPU power connector (4+4 pin)
yes
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
3.59 kg
- Combined power (+3.3V)
100 W
- Combined power (+12V)
1050 W
- Combined power (+5V)
100 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
- Number of PATA power connectors
4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3369622 Cougar Polar Power supply unit 1050 W ATX 80 PLUS Platinum
Description
Against the background of curbing global warming, a power supply with higher efficiency stands for longevity and less waste of energy. The Cougar Polar platinum efficiency series protects the earth and provides the best for future generations.
COUGAR introduces its first Platinum efficiency power supplies Polar 1200 and 1050. 100% Japanese capacitors and 50°C operation with LLC, DC-DC structure produce an environment-friendly power supply with highly efficient performance. The finely tuned HDB fan with zero-noise mode offers a perfect experience to all users under different conditions.
The Polar product range is also certified by the Cybeettics Lab for the Platinum efficiency class.
LOW ENERGY LOSS
EVERY PRODUCED POWER IS WORTH IT TO BE PRESERVED
Let us save the earth by reducing the loss of energy
- The Polar series reduces the energy loss to less than 7%.
- Certified with 80Plus Platinum to achieve efficiency of up to 92% at 115 Vac.
- Less efficiency loss due to optimized board-to-board wave soldering.
ZERO NOISE MODE
ULTRA-QUIET AT HIGH POWER
Low heat dissipation for constant temperature
- Zero-noise mode at 40%.
- Automatic temperature control for optimum ratio of speed and operating noise.

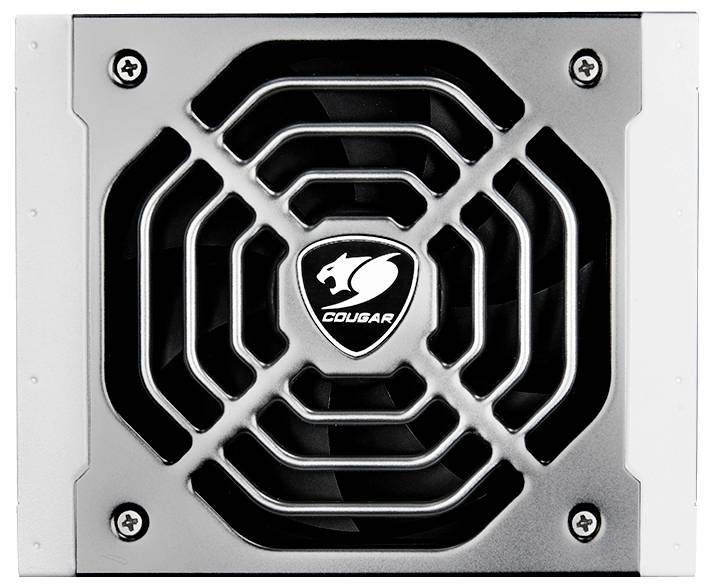

The advanced chassis increases airflow concentration by using the COUGAR 135 mm HDB silent fan and the large inlet port. In addition, the fan curvature was fine tuned to reduce vibrations.
The entire fan arrangement corresponds to the low noise level A+ according to the Cybenetics Lab-Standards.
JAPANESE CONDENSERS
HIGH QUALITY ELECTRONICS SOLUTIONS
Reduce electrical waste for the next generation
- 100% high quality Japanese capacitors extend the life.
- Optimum performance in environments with 50ºC working temperature.
- Strict 2% voltage control for ultra-stable operation.
- Hybrid Dynamic Bearing (HDB) fans for longer durability.
- Patented grooved design
- Centralized oil pressure
- No oil leaks
- Improved stability
- Less friction and noise
- Extended service life
Perfect support for the GeForce RTX™ 30 GPU series
Die Polar series is designed for high-end gamers and intricate media workers whose kann supports RTX 30 series GPU and provide stable performance.
Properties
80 PLUS Platinum certified
Up to 92% energy conversion efficiency reduces your electricity bill
100% high quality Japanese capacitors
Excellent components prolong the life of the power supply.
Durable HDB fans
Hydro Dynamic Bearing Fan: Longer service life and lower noise level
Zero Noise mode and fan curve adjustment
Advanced technology to minimize noise

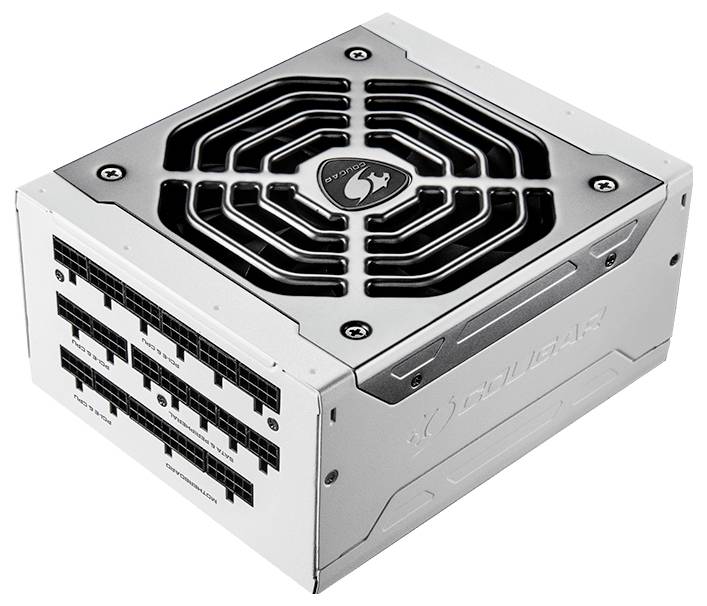

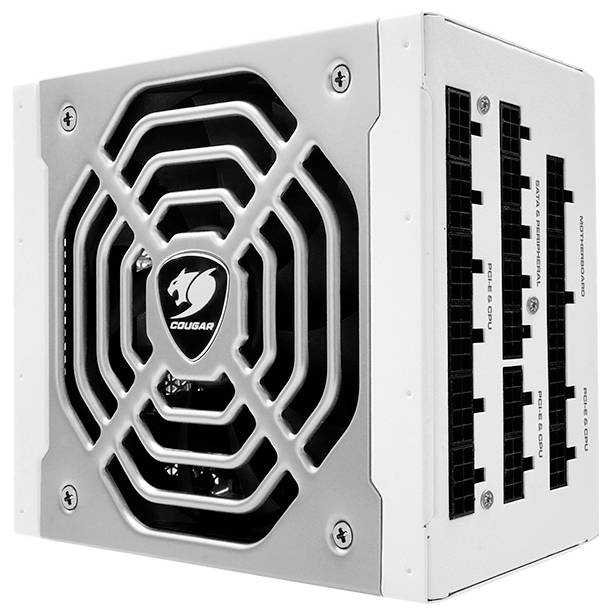

Fully modular power supply unit
Connect only the cables you really need for less confusion and better air circulation
Smooth operation at 50°C.
Strong power at 50°C ambient temperature
Compatible with the latest PC technology
Designed for users of current and future multi-core CPU platforms
Supports PCI Express 4.0 graphics cards of the next generation with 8(6+2) pin PCI-E connection
Awards & Reviews
TECHPOWER-UP
Das Bei ist der Bei den Best Cougar Power supply I have tested so far. Es ist belanglos, welchen der Asus-RoG Thor-Flagship, die Verwendung eines Seasonic-Prime Platinum-Platform, zugelassen. Der Cougar Polar not nur meets the nocturnal more extensive Asus ROG Thor 1200 eye-to-eye in terms of overall performance, so is dead silent."
Protection
UVP (undervoltage protection)
If the voltages on the individual conductors drop below a certain tolerance value, the mains unit switches off automatically.
OCP (over-current protection)
If the current flowing on a single wire is higher than indicated, the power supply unit switches off automatically.
SCP (short-circuit protection) to be prevented in the event of a short-circuit
This function damages the core components of the power supply and its system components.
OVP (overvoltage protection)
If the voltages on the cables exceed a certain tolerance value, the mains adapter switches off automatically.
OTP (excess temperature protection)
If the temperature becomes too high, the power supply unit switches off automatically.
OPP (overload protection)
If the system is overloaded and requires more power from the power supply than it can deliver, this protection feature is activated.
Protection through compliant coating
Protects against conductive particles/dust, high humidity and penetrating insects
This text is machine translated.
