Buy Counttec ESCT-T24 250/5 32016 DIN rail transformer Flip mount 1 pc(s)

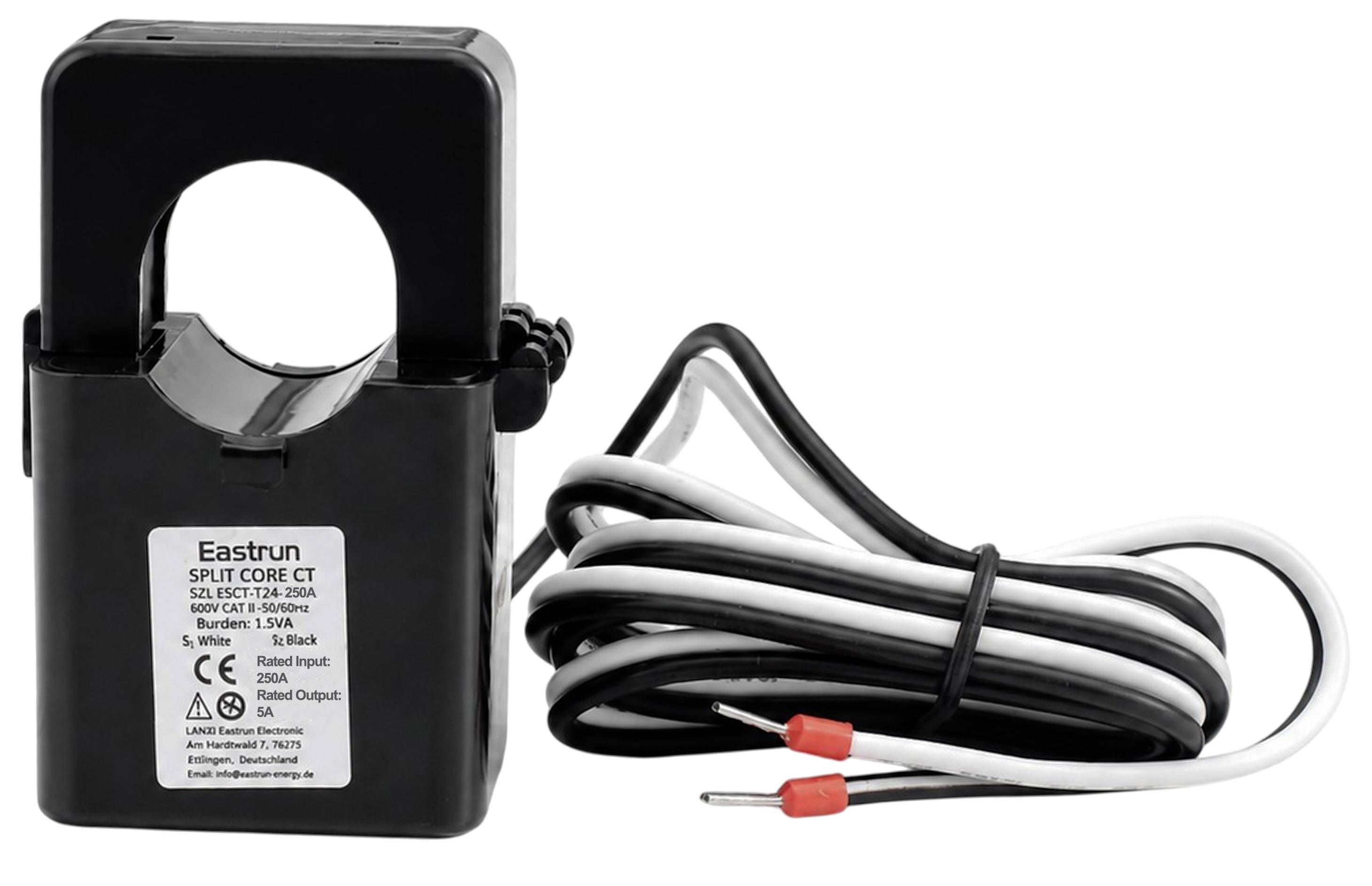

Black split-core CT current transformer with attached coiled black cable and red lead ends on a white background.

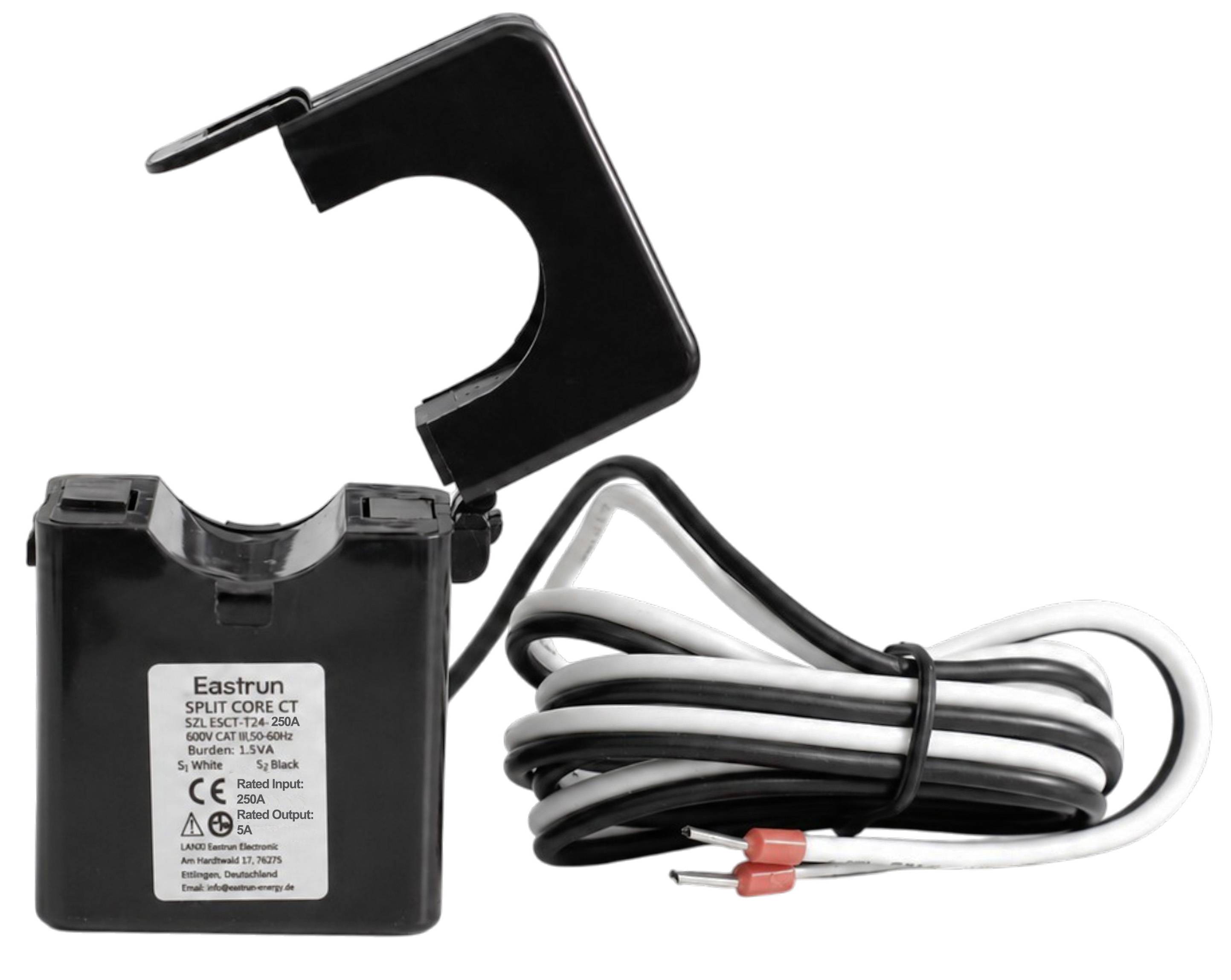

Black split-core current transformer with hinged clamp and coiled lead wires, shown on a white background.<br>

1/2

Datasheet (PDF)

Dispatches on Thu, 12 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 63.86 / piece)

€ 63.86

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Low-voltage DC converter 250/5A

Input current (current) 250 A
Output current 5 A

Technical specifications

Phase angle: < 2 degree (at 50% of rated current)
Insulation voltage 600 V/AC
Maximum primary voltage 5000 V/AC (insulated lead)
Dielectric strength 2.5 kV/1 mA/1 min"Phase angle < 2 degrees (at 50% of rated current)
Insulation voltage 600 V/AC
Maximum primary voltage 5000 V/AC (insulated lead)
Dielectric strength 2.5 kV/1 mA/1 min"

Product type: DIN rail transformer

Fitting type: Flip mount

Accuracy class: ±1% (20% to 120%)

Type: ESCT-T24 250/5

Output current: 5 A

Input current: 250 A

Documents & Downloads

Datasheet

Datasheet 3841216 Counttec ESCT-T24 250/5 32016 DIN rail transformer Flip mount 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841216 Counttec ESCT-T24 250/5 32016 DIN rail transformer Flip mount 1 pc(s)

Description

The low-voltage folding converter ESCT-T24 for compact installation without power interruption with 250/5A. With bi-directional measurement for versatile applications. The folding converter has a high accuracy of +-1% for precise measurement results. The insulated cable offers a high level of security and dielectric strength.

This text is machine translated.

Hints

Also as accessory for the DS5115 multi-function transformer meter
