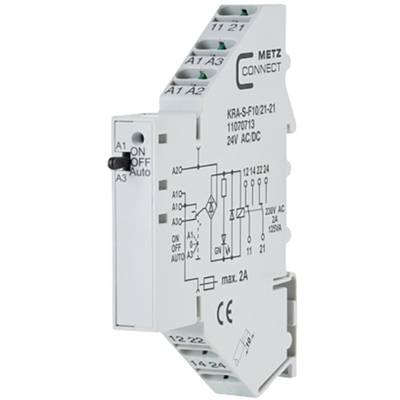

Coupler module 24, 24 V AC, V DC (max) 2 change-overs Metz Connect 11070713 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Coupler module
Max. operating voltage
24 V AC
24 V DC
Contact type
2 change-overs
Switching voltage (max.)
24 V DC/AC
Datasheet (PDF)
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details
COUPLER COMPONENT KRA-S-F10/21-21, 2 CHANGER, 24 V AC/DC
- Interface technologyInterface componentCoupling RelaysRelay couplersCoupling componentRelay moduleSwitching relay.Interface ModulesElectromechanicalBTR relaysBTR Netcom
Technical specifications
- Packaging type
Piece
- Product type
Coupler module
- Type
11070713
- Features
Automatic/manual switch
- Operating voltage
24 V AC
24 V DC
- Max. operating voltage
24 V AC
24 V DC
- Operating voltage
24, 24 V AC, V DC (max)
- Contact type
2 change-overs
- Switching voltage (max.)
24 V DC/AC
- Connection
Spring-loaded terminal
IP20
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Width
11.20 mm
- Height
87.50 mm
- Depth
60 mm
- Dim
(W x H x D) 11.20 x 87.50 x 60 mm
- Content
1 pc(s)
- Weight
43 g
- Factory colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860500 Coupler module 24, 24 V AC, V DC (max) 2 change-overs Metz Connect 11070713 Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2860500 Coupler module 24, 24 V AC, V DC (max) 2 change-overs Metz Connect 11070713 Piece 1 pc(s)
Description
Coupling components are used to separate the potential between logic and load. Connection with spring-cage terminals (push-in), additional terminals for jumper, test contacts for each terminal, secure separation, with manual control level.
