Coupler module 24 V DC (max) 2 change-overs Metz Connect 11061925 1 pc(s)
EAN:
Part number:
Item no:
Product type
Coupler module
Max. operating voltage
24 V DC
Contact type
2 change-overs
Switching voltage (max.)
24 V DC
Type
11061925
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Only 10 Piece(s) available
Highlights & Details

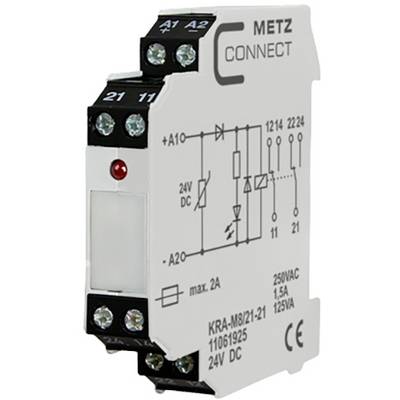

Coupler component KRA-M8/21-21, 2 changer, 24 V DC
- Interface technologyInterface componentCoupling RelaysRelay couplersCoupling componentRelay moduleSwitching relay.Interface ModulesElectromechanicalBTR Netcom
Technical specifications
- Product type
Coupler module
- Type
11061925
- Operating voltage
24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Contact type
2 change-overs
- Switching voltage (max.)
24 V DC
- Connection
Screw terminal
IP40
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Width
11.20 mm
- Height
61.30 mm
- Depth
60 mm
- Dim
(W x H x D) 11.20 x 61.30 x 60 mm
- Content
1 pc(s)
- Weight
45 g
- Factory colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860512 Coupler module 24 V DC (max) 2 change-overs Metz Connect 11061925 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2860512 Coupler module 24 V DC (max) 2 change-overs Metz Connect 11061925 1 pc(s)
Description
Coupling components are used to separate the potential between logic and load. Connection with screw terminals, compact closed series, integrated protective circuit, secure separation.
