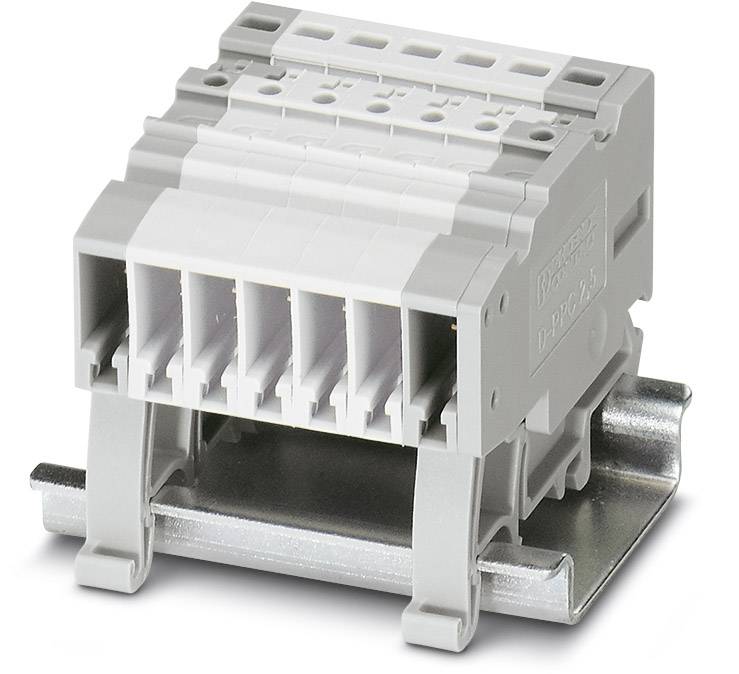

Coupling PPC 1,5/S-NS/18 3061981 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 9.24 / piece)
€ 92.43
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Features
+ push-in spring bracket
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
16
- Clamp width
63 mm
- No. of rows
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3061981
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
PPC 1,5/S-NS/18
- Dim
(L x W x H) 43 x 63 x 17.8 mm
- Width
63 mm
- Height
17.8 mm
- Length
43 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 568117 Coupling PPC 1,5/S-NS/18 3061981 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 568117 Coupling PPC 1,5/S-NS/18 3061981 Phoenix Contact
Description
Coupling, Connection method: Push-in connection, Number of positions: 18, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, Width: 63 mm, Height: 17.8 mm, Color: gray
Hints
Special order, no right of withdrawal.
