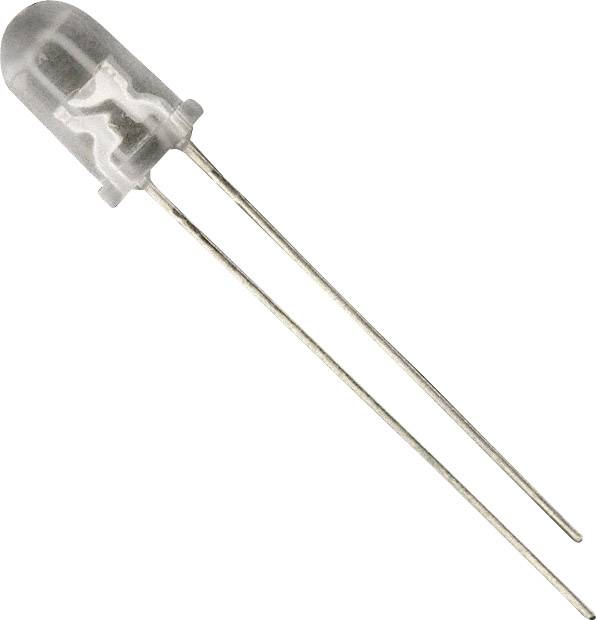

CREE C503B-BCN-CV0Z0461 LED wired Blue Circular 5 mm 4.8 cd 30 ° 30 mA 3.2 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.66
21
8% = € 0.05
€ 0.61
35
12% = € 0.08
€ 0.58
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.66 / piece)
€
Technical specifications
- Series: C503B-Bxx
- Type
C503 B-BCN-CV0 Z 0461
- Factory colour
Blue
- Forward voltage U(F)
3.2 V
- Forward current I(F)
30 mA
- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
4.8 cd
- Wavelength
470 nm
- Radiation angle
30°
- Type (LEDs)
Water clear
- Lens type
Circular
- Dim
(L x W x H) 33.8 x 5.8 x 5.4 mm
- Min. temperature
-40 °C
- Max. temperature
+95 °C
- Length
33.8 mm
- Width
5.8 mm
- Height
5.4 mm
- Content
1 pc(s)
- Product type
LED wired
Documents & Downloads
Datasheet
Datasheet 1125335 CREE C503B-BCN-CV0Z0461 LED wired Blue Circular 5 mm 4.8 cd 30 ° 30 mA 3.2 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
