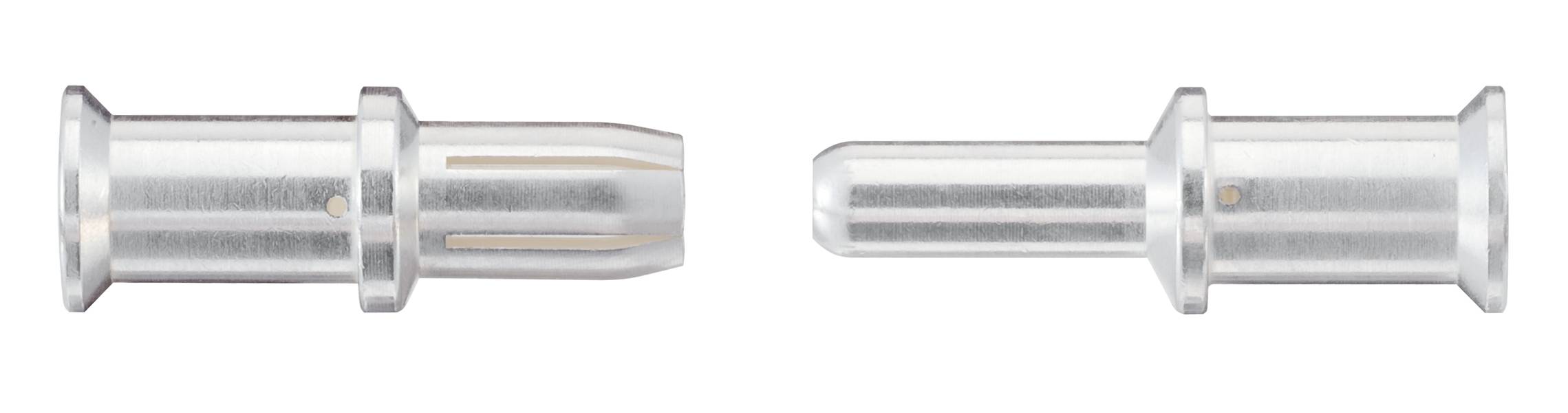

Crimp contact 09110006230 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
09 11 000 6230
Manufacturer part #
09110006230
Connection
Socket
Datasheet (PDF)
Technical specifications
- Series TC 70
- Rated current ≤ 70 A
- Continuous resistance ≤ 0.5 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Silver-plated contact surface
- Standards IEC 60664-1; IEC 61984
- Net weight: 7 g
- Contact type: Crimp contact
- Gender: Jack
- Production process: Turned contacts
- Conductor cross-section: 6 mm²
- Stripped length: 15 mm
- Packaging type
Piece
- Type
09 11 000 6230
- Product type
Crimp contact
- Manufacturer part #
09110006230
- Connection
Socket
- Content
1 pc(s)
- Max. temperature
125 °C
Bus
-40-125 °C
Other
Silver
15 mm
6-6 mm²
6-6 mm²
70 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3007572 Crimp contact 09110006230 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3007572 Crimp contact 09110006230 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3007572 Crimp contact 09110006230 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 70 A, socket, copper alloy, silver-plated Conductor cross-section: 6 mm²
