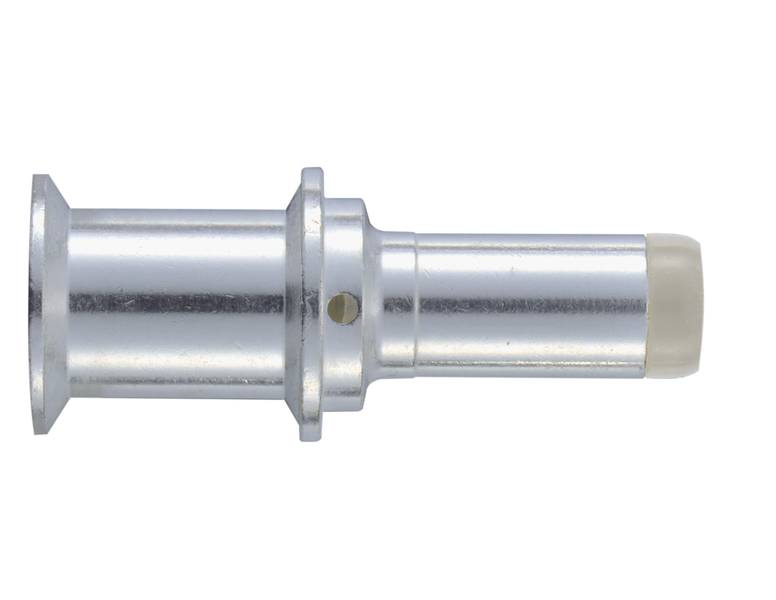

Crimp contact 09110007120 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
09 11 000 7120
Manufacturer part #
09110007120
Connection
Crimp
Datasheet (PDF)
Technical specifications
- Series TC 200
- Contact description: With protection against accidental contact
- Rated current ≤ 200 A
- Continuous resistance ≤ 0.3 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Silver-plated contact surface
- Standards IEC 60664-1; IEC 61984
- Net weight: 27.2 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Contact type: Crimp contact
- Gender: Pen
- Production process: Turned contacts
- Conductor cross-section: 25 mm²
- Stripped length: 19 mm
- Packaging type
Piece
- Type
09 11 000 7120
- Product type
Crimp contact
- Manufacturer part #
09110007120
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
125 °C
Pin
-40-125 °C
Other
Silver
19 mm
25-25 mm²
25-25 mm²
200 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3007624 Crimp contact 09110007120 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3007624 Crimp contact 09110007120 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3007624 Crimp contact 09110007120 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, touch protected, operating current: 200 A, pin, copper alloy, silver-plated, cross-section: 25 mm²
