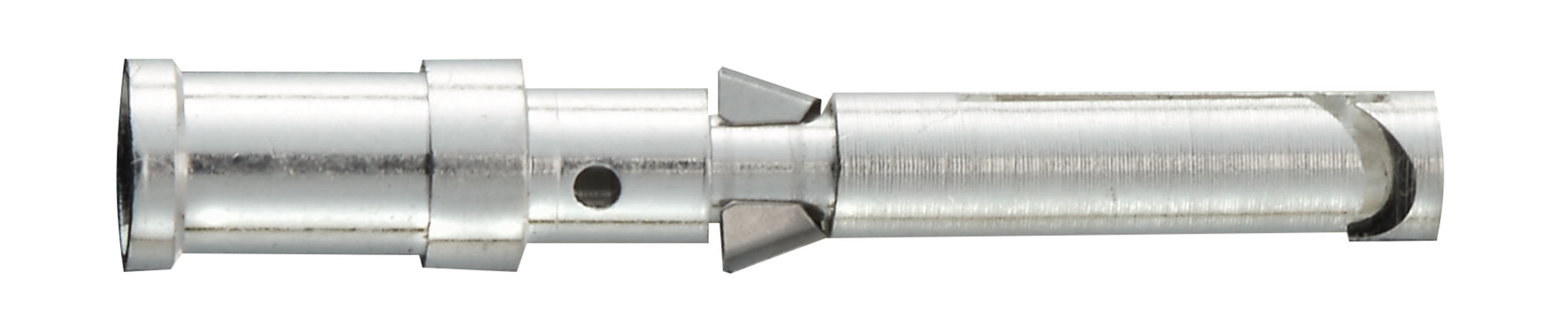

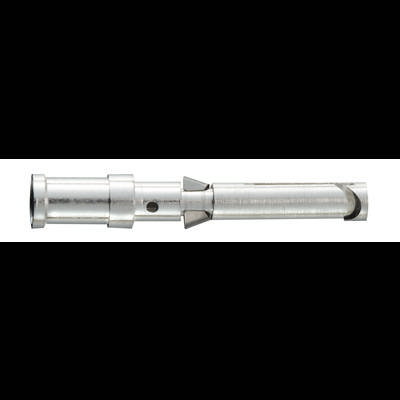

Crimp contact 09150006207 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
09 15 000 6207
Manufacturer part #
09150006207
Connection
Socket
Datasheet (PDF)
Technical specifications
- Series: HAN D®
- Rated current ≤ 10 A
- Constant resistance: 3 mΩ
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Silver-plated contact surface
- Standards IEC 60664-1; IEC 61984
- Net weight: 0.63 g
- Contact type: Crimp contact
- Gender: Jack
- Production process: Turned contacts
- Conductor cross-section: AWG 26 ... AWG 22
- Stripped length: 8 mm
- Packaging type
Piece
- Type
09 15 000 6207
- Product type
Crimp contact
- Manufacturer part #
09150006207
- Connection
Socket
- Content
1 pc(s)
- Suitable for
Han D®
Bus
Other
Silver
8 mm
0.14-0.37 mm²
0.14-0.37 mm²
10 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3005818 Crimp contact 09150006207 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3005818 Crimp contact 09150006207 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3005818 Crimp contact 09150006207 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 10 A, socket, copper alloy, silver-plated Conductor cross-section: 0.14...0.37 mm², AWG 26 ... AWG 22
