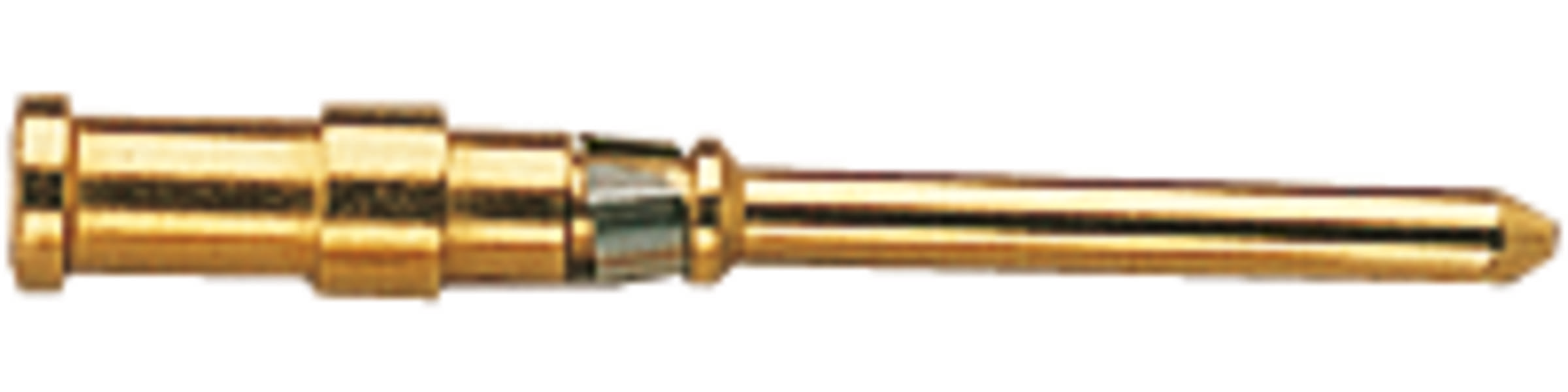

Crimp contact 09152006121 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Crimp contact
Type
09 15 200 6121
Manufacturer part #
09152006121
Connection
Crimp
Datasheet (PDF)
Technical specifications
- Series: HAN D® HMC
- Rated current ≤ 10 A
- Constant resistance: 3 mΩ
- Material contacts: Copper alloy
- Contact surface: Gold-plated HMC
- Standards IEC 60664-1; IEC 61984
- Net weight: 0.62 g
- Contact type: Crimp contact
- Gender: Pen
- Production process: Turned contacts
- Wire cross-section AWG 16
- Stripped length: 8 mm
- Mating cycles with other HMC components: ≥ 10,000
- Packaging type
Single
- Type
09 15 200 6121
- Product type
Crimp contact
- Manufacturer part #
09152006121
- Connection
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Suitable for
Han D®
Pin
Other
Gold
8 mm
1.5-1.5 mm²
1.5-1.5 mm²
10 A
Other copper alloys
10000
Turned (lathe)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3005831 Crimp contact 09152006121 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3005831 Crimp contact 09152006121 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3005831 Crimp contact 09152006121 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 10 A, pin, copper alloy, HMC gold-plated Wire cross-section 1.5 mm², AWG 16
