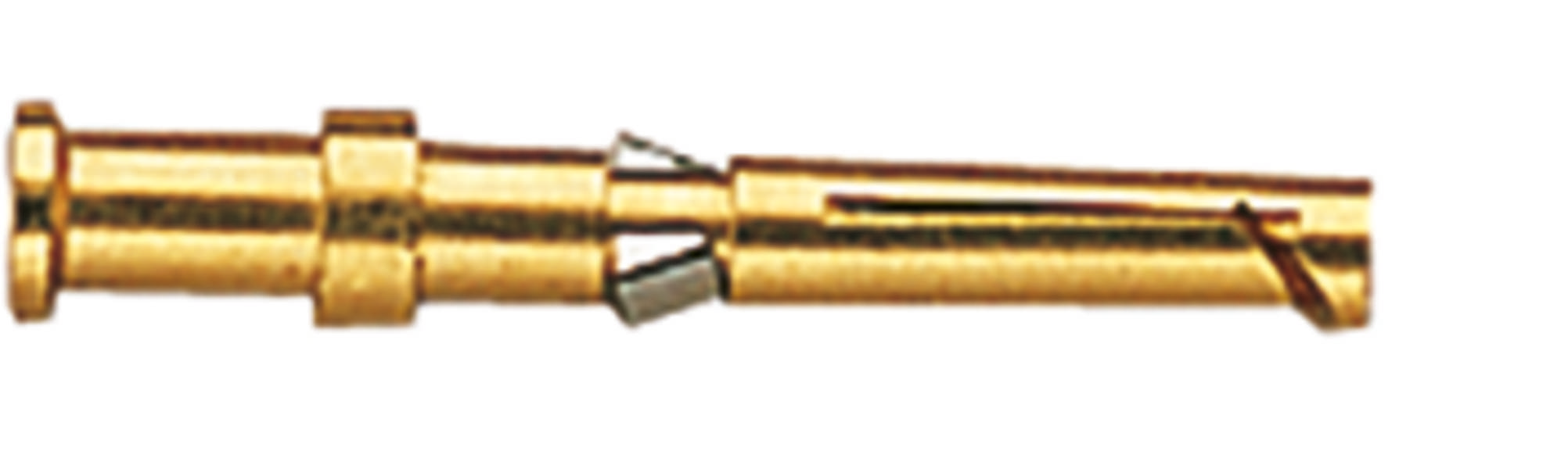

Crimp contact 09152006224 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
09 15 200 6224
Manufacturer part #
09152006224
Connection
Crimp
Datasheet (PDF)
Technical specifications
- Series: HAN D® HMC
- Rated current ≤ 10 A
- Constant resistance: 3 mΩ
- Material contacts: Copper alloy
- Contact surface: Gold-plated HMC
- Standards IEC 60664-1; IEC 61984
- Net weight: 0.69 g
- Contact type: Crimp contact
- Gender: Jack
- Production process: Turned contacts
- Conductor cross-section: AWG 26 ... AWG 22
- Stripped length: 8 mm
- Mating cycles with other HMC components: ≥ 10,000
- Packaging type
Piece
- Type
09 15 200 6224
- Product type
Crimp contact
- Manufacturer part #
09152006224
- Connection
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Suitable for
Han D®
Bus
Other
Gold
8 mm
0.14-0.37 mm²
0.14-0.37 mm²
10 A
Other copper alloys
10000
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3005811 Crimp contact 09152006224 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3005811 Crimp contact 09152006224 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3005811 Crimp contact 09152006224 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 10 A, socket, copper alloy, HMC gold-plated Conductor cross-section: 0.14...0.37 mm², AWG 26 ... AWG 22
