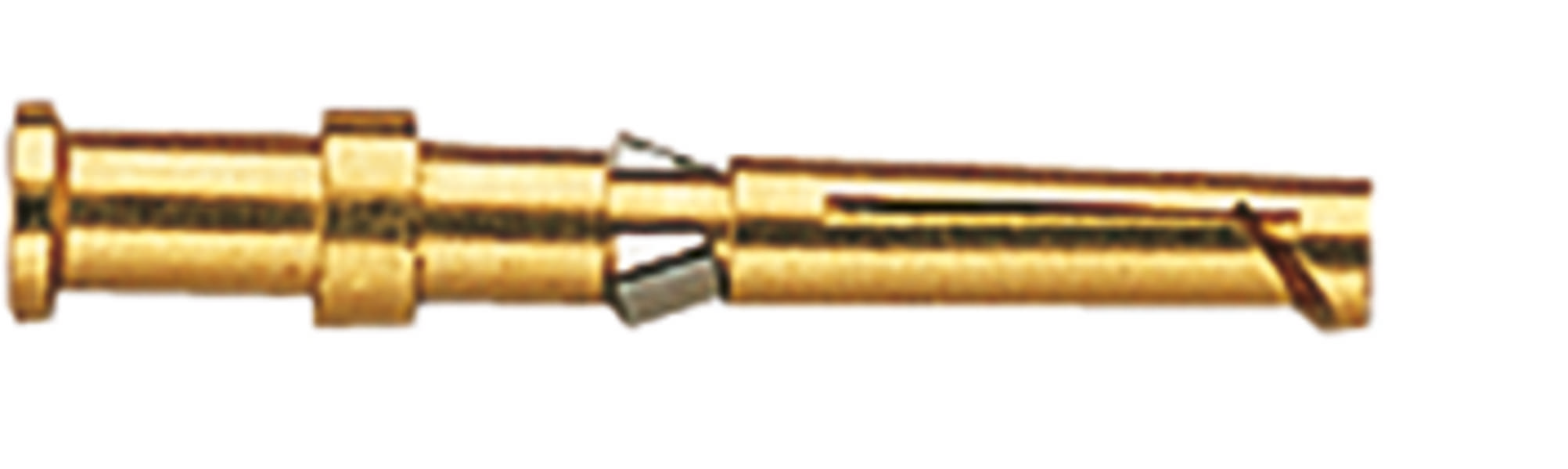

Crimp contact 09152006225 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
09 15 200 6225
Manufacturer part #
09152006225
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Series: HAN D® HMC
- Rated current ≤ 10 A
- Constant resistance: 3 mΩ
- Material contacts: Copper alloy
- Contact surface: Gold-plated HMC
- Standards IEC 60664-1; IEC 61984
- Net weight: 0.68 g
- Contact type: Crimp contact
- Gender: Jack
- Production process: Turned contacts
- Wire cross-section AWG 18
- Stripped length: 8 mm
- Mating cycles with other HMC components: ≥ 10,000
- Packaging type
Piece
- Type
09 15 200 6225
- Product type
Crimp contact
- Manufacturer part #
09152006225
- Content
1 pc(s)
- Series
Han® D
Bus
Other
Gold
8 mm
0.75-0.75 mm²
0.75-0.75 mm²
10 A
Other copper alloys
10000
Turned (lathe)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3005813 Crimp contact 09152006225 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3005813 Crimp contact 09152006225 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3005813 Crimp contact 09152006225 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 10 A, socket, copper alloy, HMC gold-plated Wire cross-section 0.75 mm², AWG 18
