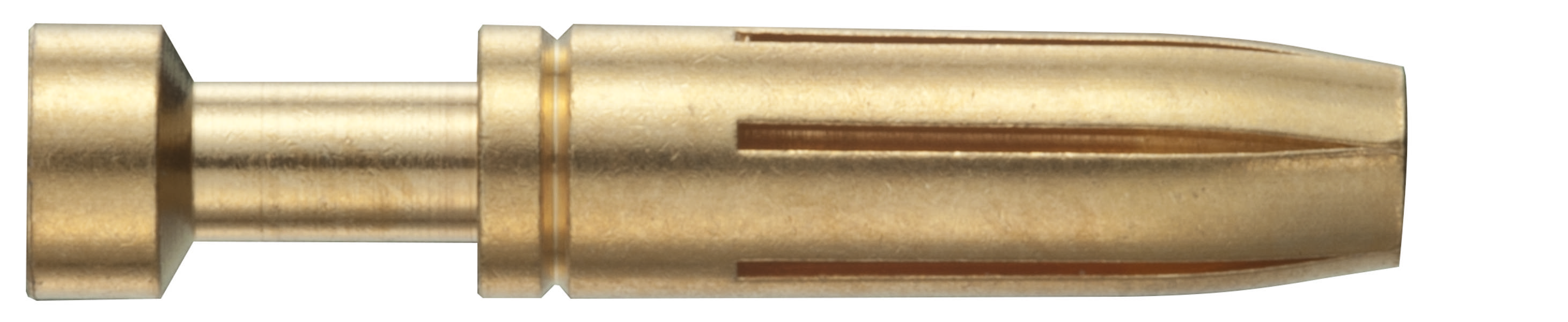

Crimp contact 09332006218 HARTING Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
09 33 200 6218
Manufacturer part #
09332006218
Connection
Crimp
Datasheet (PDF)
Technical specifications
- Series: HAN E® HMC
- Rated current ≤ 16 A
- Continuous resistance ≤ 1 mΩ
- Material contacts: Copper alloy
- Contact surface: Gold-plated HMC
- Standards IEC 60664-1; IEC 61984
- Net weight: 1.48 g
- Contact type: Crimp contact
- Gender: Jack
- Production process: Turned contacts
- Wire cross-section AWG 18
- Wire stripping length: 7.5 mm
- Mating cycles with other HMC components: ≥ 10,000
- Contact marking 1 grooves
- Packaging type
Piece
- Type
09 33 200 6218
- Product type
Crimp contact
- Manufacturer part #
09332006218
- Connection
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Suitable for
Han E®
Bus
Other
Gold
7.5 mm
1-1 mm²
1-1 mm²
16 A
Other copper alloys
10000
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3005859 Crimp contact 09332006218 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3005859 Crimp contact 09332006218 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3005859 Crimp contact 09332006218 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 16 A, socket, copper alloy, HMC gold-plated Wire cross-section 1 mm², AWG 18
