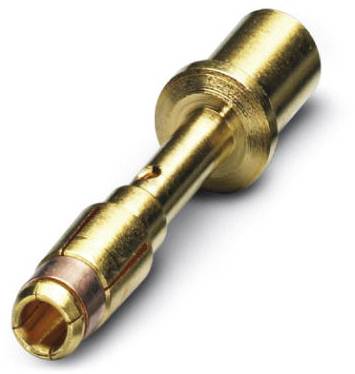

Crimp contact 1605643 SF-7QS2000 Phoenix Contact Content: 50 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp contact
Connector type
Socket, machined
Connection
Crimp
Connector cross section
2.5 mm²
Manufacturer part #
1605643
Datasheet (PDF)
Technical specifications
- Contact diameter 2 mm
- Mating cycles mechanical: 100
- Wire cross-section min.: 1 mm²
- Contact surface: Nickel-plated (Ni), with gold plating (Au)
- Product type
Crimp contact
- Connector type
Socket, machined
- Connection
Crimp
- Connector cross section
2.5 mm²
- Manufacturer part #
1605643
- Content
50 pc(s)
- Contact material
CuZn
- Core diameter
1 mm²
- (Ø)
2 mm
- RoHS-compliant
Yes
- Type
SF-7QS2000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137210 Crimp contact 1605643 SF-7QS2000 Phoenix Contact Content: 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2137210 Crimp contact 1605643 SF-7QS2000 Phoenix Contact Content: 50 pc(s)
Description
Crimp connection: vibration and temperature-proof assembly. High connection tensile strength. Low contact resistance. Easy production monitoring.
