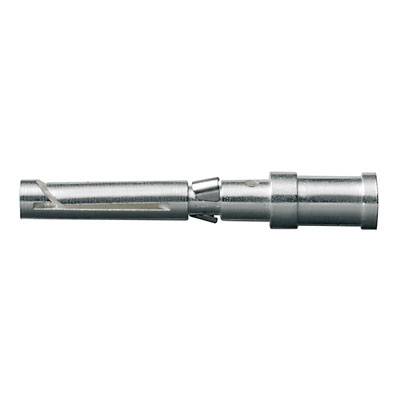

Crimp contact HDC-C-HD-BM0.75-1.00AG Weidmüller Content: 100 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
HDC-C-HD-BM0.75-1.00AG
Manufacturer part #
1601760000
Connection
Crimp
Datasheet (PDF)
Technical specifications
- Stripping length Rated connection: 8 mm
- Forward resistance: ≤ 4mΩ
- Diameter: 3.5 mm
- Manufacturing process: Turned
- Contact diameter Pin Ø: 1.6 mm
- Wire connection cross-section: 0.75 - 1 mm²
- Surface: Silver
- mating cycles: ≥ 501
- Packaging type
Piece
- Type
HDC-C-HD-BM0.75-1.00AG
- Product type
Crimp contact
- Manufacturer part #
1601760000
- Connection
Crimp
- Content
100 pc(s)
- Material
Copper alloy
- Suitable for
HD
- Height
22 mm
- Length
6 mm
- Width
22 mm
- Industrial packaging
Yes
- Weight
0.6 g
Bus
Crimp connection
Silver
8 mm
0.75-1 mm²
Other copper alloys
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 324312 Crimp contact HDC-C-HD-BM0.75-1.00AG Weidmüller Content: 100 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 324312 Crimp contact HDC-C-HD-BM0.75-1.00AG Weidmüller Content: 100 pc(s) Crimp contact
Description
Crimp contact. Heavy-duty connectors, Contact, HD, HDD, HQ, MixMate, CM 10, CM BUS (COD), socket, conductor connection cross-section, max.: 1, rotated, copper alloy.
