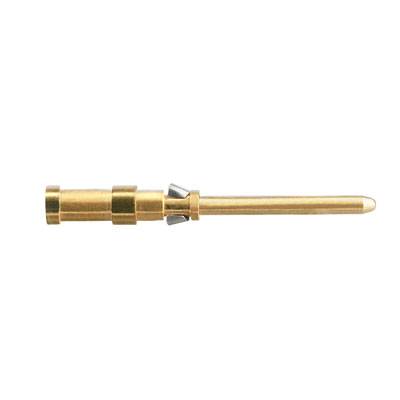

Crimp contact HDC-C-HD-SM0.75-1.00AU Weidmüller Content: 100 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
HDC-C-HD-SM0.75-1.00AU
Manufacturer part #
1651640000
Connection
Crimp
Datasheet (PDF)
Highlights & Details
Crimp contact
Our service for you
Technical specifications
- Wire stripping length Rated connection: 8 mm
- Forward resistance: ≤ 4mΩ
- Diameter: 3.5 mm
- Manufacturing process: Turned
- Contact diameter Pin Ø: 1.6 mm
- Wire connection cross-section: 0.75 - 1 mm²
- Surface: Gold
- mating cycles: ≥ 501
- Packaging type
Piece
- Type
HDC-C-HD-SM0.75-1.00AU
- Product type
Crimp contact
- Manufacturer part #
1651640000
- Connection
Crimp
- Content
100 pc(s)
- Material
Copper alloy
- Suitable for
HD
- Height
80 mm
- Length
5 mm
- Width
50 mm
- Industrial packaging
Yes
- Weight
0.57 g
Pin
Crimp connection
Gold
8 mm
0.75-1 mm²
Other copper alloys
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 354207 Crimp contact HDC-C-HD-SM0.75-1.00AU Weidmüller Content: 100 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 354207 Crimp contact HDC-C-HD-SM0.75-1.00AU Weidmüller Content: 100 pc(s) Crimp contact
Description
Crimp contact. Heavy-duty connectors, Contact, HD, HDD, HQ, MixMate, CM 10, CM BUS (COD), pin, conductor connection cross-section, max.: 1, rotated, copper alloy.
