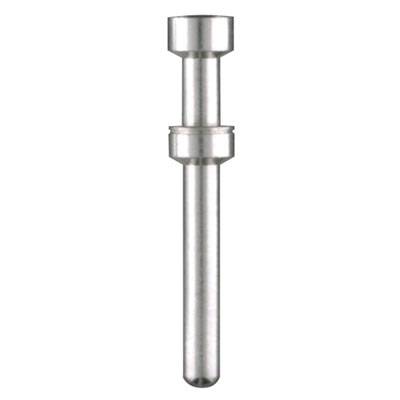

Crimp contact HDC-C-HE-SM1.5AG Weidmüller Content: 100 pc(s) Crimp contact
EAN:
Part number:
Item no:
Product type
Crimp contact
Type
HDC-C-HE-SM1.5AG
Manufacturer part #
1200700000
Connection
Crimp
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
Crimp contact
Our service for you
Technical specifications
- Stripping length Rated connection: 7.5 mm
- Forward resistance: ≤ 2MΩ
- Diameter: 4.5 mm
- Manufacturing process: Turned
- Contact diameter Pin Ø: 2.5 mm
- Wire connection cross-section: 1.5 mm²
- Surface: Silver
- mating cycles: ≥ 501
- Type
HDC-C-HE-SM1.5AG
- Product type
Crimp contact
- Manufacturer part #
1200700000
- Connection
Crimp
- Content
100 pc(s)
- Material
Copper alloy
- Suitable for
HE
- Height
142 mm
- Length
6 mm
- Width
76 mm
- Industrial packaging
Yes
- Weight
1.35 g
Pin
Crimp connection
Silver
7.5 mm
1.5-1.5 mm²
Other copper alloys
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 314543 Crimp contact HDC-C-HE-SM1.5AG Weidmüller Content: 100 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 314543 Crimp contact HDC-C-HE-SM1.5AG Weidmüller Content: 100 pc(s) Crimp contact
Description
Crimp contact. Heavy-duty connectors, Contact, HE, HEE, HQ, MixMate, CM HE, CM BUS (COD), pin, conductor connection cross-section, max.: 1.5, rotated, copper alloy.
