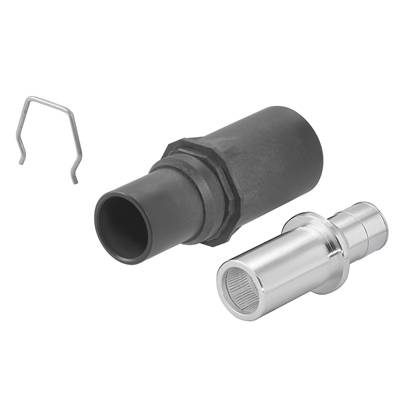

Crimp contact HDC HP 550 M 16 Weidmüller Content: 1 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
HDC HP 550 M 16
Manufacturer part #
1172600000
Factory colour
Black
Datasheet (PDF)
Highlights & Details
Crimp contact
- HDC HP 550 M16
Technical specifications
- Stripping length Rated connection: 30 mm
- Size: 550
- Rated voltage (DIN EN 61984): 3000 V
- Rated surge voltage (DIN EN 61984): 15 kV
- Rated current (DIN EN 61984): 550 A
- Forward resistance: ≤ 0.1 mΩ
- Diameter: 43 mm
- Production process: Turned
- Insulation resistance: 10 10 Ω
- Insulation material: Polyamide with glass fiber
- Contact diameter Ø: 18 mm
- Length: 91 mm
- conductor cross-section: 16 mm²
- Surface: Silver passivated
- Packaging type
Piece
- Type
HDC HP 550 M 16
- Product type
Crimp contact
- Manufacturer part #
1172600000
- Factory colour
Black
- Connection
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Suitable for
HighPower
- Max. temperature
+120 °C
- Length
91 mm
- Weight
125 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201213 Crimp contact HDC HP 550 M 16 Weidmüller Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 201213 Crimp contact HDC HP 550 M 16 Weidmüller Content: 1 pc(s) Crimp contact
Description
Crimp contact. HDC-Use, Pin, 3000V, 550 A, crimp connection, Size: 550. A heavy plug connector consists of a connector and the protective housing. The use of forms so the heart of the heavy connector and is responsible for the electrical function. Connector inserts from Weidmüller are made of high-quality insulating materials are produced, which allow the secure transfer even higher voltages in confined space. In addition, we use in our entire range of only a single plastic on the UL listed and train-compatible. This allows the unrestricted global deployment of the rock star ® connector.
