Buy Crouzet SSR GN050DSRL 50 A Switching voltage (max.): 510 V AC Zero -voltage switching 1 pc(s)

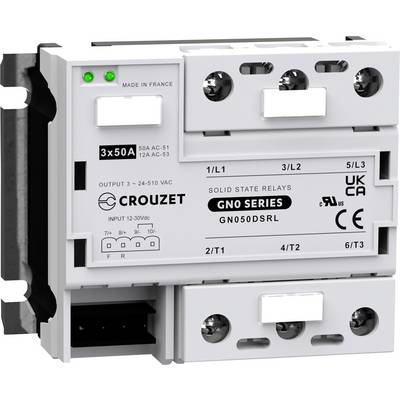

A solid-state relay from the 'Crouzet GNO Series' with 3x50 A, input 7-30 VDC. Housing with terminals and status indicator.

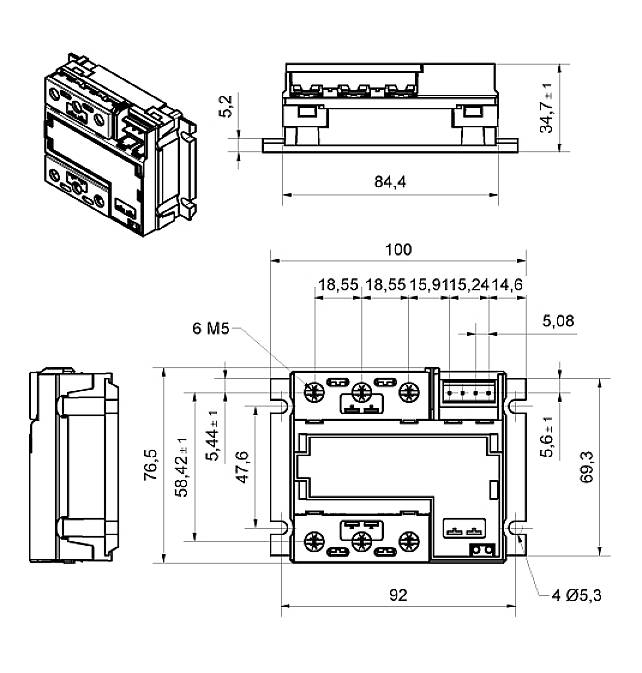

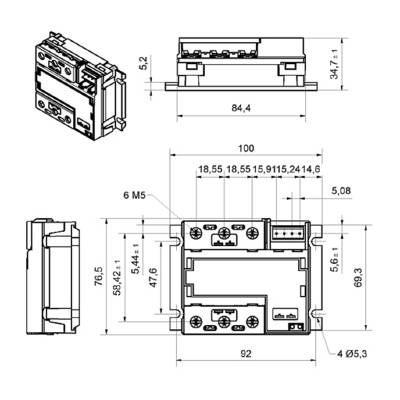

Technical drawing of an electrical component with dimensions. Shows front, side, and top views with measurements in millimetres.

1/2

Product type

SSR

Control voltage (min.)

12 V DC

Control voltage (max.)

30 V DC

Switching voltage (max.)

510 V AC

Current load (max.)

50 A

Datasheet (PDF)

Sales and shipping:

Total (€ 298.32 / piece)

€

Report legal concerns

Technical specifications

Panel mounting
Three-phase

Product type: SSR

Type: SSR GN0

Switching type: Zero -voltage switching

Connection: Screw terminal

Control voltage (min.): 12 V DC

Control voltage (max.): 30 V DC

Control voltage range: 12 - 30 V DC

Switching voltage (min.): 24 V DC

Switching voltage (max.): 510 V AC

Current load (max.): 50 A

Min. temperature: -40 °C

Max. temperature: +80 °C

Width: 76.5 mm

Height: 34.7 mm

Length: 100 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information is without VAT, plus shipping costs)

Connection

Switching type

Control voltage (max.)

Current load (max.)

Control voltage (min.)

Switching voltage (max.)

Product type

Crouzet SSR GN050DSRL 50 A Switching voltage (max.): 510 V AC Zero -voltage switching 1 pc(s)

Item no:2474903

This article

Screw terminal

Zero -voltage switching

30 V DC

50 A

12 V DC

510 V AC

SSR

Crouzet SSR 84132010N 20 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474892

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

30 V DC

20 A

4 V DC

280 V AC

SSR

Crouzet SSR 84132110N 8 A Switching voltage (max.): 280 V AC Random timing 1 pc(s)

Item no:2474893

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Random timing

32 V DC

8 A

4 V DC

280 V AC

SSR

Crouzet SSR 84132210N 8 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474894

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

32 V DC

8 A

4 V DC

280 V AC

SSR

Crouzet SSR 84134017N 25 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474895

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

30 V DC

25 A

4 V DC

280 V AC

SSR

Crouzet SSR 84140013N 25 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474896

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

30 V DC

25 A

10 V DC

280 V AC

SSR

Crouzet SSR 84140603N 50 A Switching voltage (max.): 660 V AC Zero -voltage switching 1 pc(s)

Item no:2474897

Screw terminal

Zero -voltage switching

32 V DC

50 A

4 V DC

660 V AC

SSR

Crouzet SSR 84140613N 50 A Switching voltage (max.): 660 V AC Zero -voltage switching 1 pc(s)

Item no:2474898

Screw terminal

Zero -voltage switching

30 V DC

50 A

10 V DC

660 V AC

SSR

Crouzet SSR 84140631N 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)

Item no:2474899

Screw terminal

Random timing

30 V DC

50 A

10 V DC

510 V AC

SSR

Crouzet SSR 84140800N 25 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474900

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

32 V DC

25 A

4 V DC

280 V AC

SSR
