Crydom Electronic Load Relay
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
530 V AC
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Highlights & Details
Crydom Electronic Load Relay
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
HD48125
- Switching type
Zero crossing
- Control voltage (min.)
4 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4 - 32 V DC
- Switching voltage (min.)
48 V AC
- Switching voltage (max.)
530 V AC
- Current load (max.)
125 A
- Output voltage (max.)
530 V AC
- Max. output current
125 A
- Min. temperature
-40 °C
- Max. temperature
+80 °C

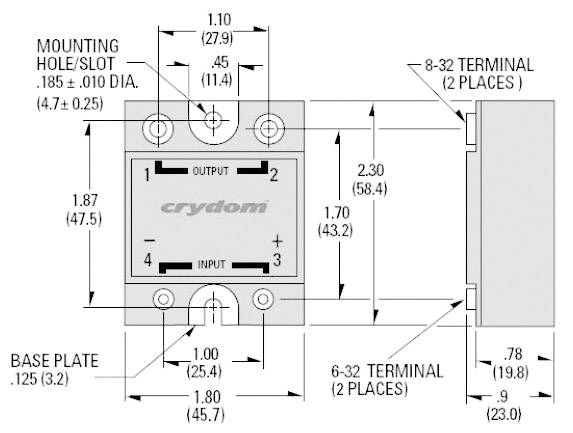

- Width
45.7 mm
- Height
23 mm
- Length
58.4 mm
- RoHS-compliant
Yes
- Permanent current (max.)
125 A
- Content
1 pc(s)
- Type
Zero voltage switch type
- Switching voltage
48 - 530 V AC
- Type
HD48125
- Ambient temperature
-40 - +80 °C
- Current load
125 A
Documents & Downloads
Datasheet
Datasheet 187046 Crydom Electronic Load Relay
User & Safety Instructions
User & Safety Instructions 187046 Crydom Electronic Load Relay
Description
Electronic power relay with optically isolated SCR output for high switching loads in industrial applications. Hockey puck standard industrial housing for chassis or heat sink mounting.
Hints
Approvals UL, CSA, VDE
