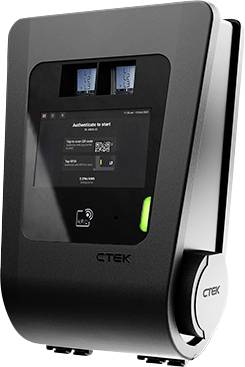

CTEK CHARGESTORM® CONNECTED 3e EV charging station Type 2 Mode 3 No. of ports 1 22 kW App
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CTEK CONNECTED 3E
- Easy-to-use, built-in 7-inch touchscreen with live loading, cost transparency, and dynamic QR code payments
- A 22 kW AC socket provides reliable high-performance charging for public locations and at the workplace
- Cyberproof, ISO 15118-compliant platform with AutoCharge function and Plug & Charge hardware support
Technical specifications
- Product type
EV charging station
- Authorisation
App
- Charger connectors
Type 2
- Charging mode
Mode 3
- No. of ports
1
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
400 V
- Type
True-to-calibration wall charging station / Wallbox with 7" touch screen
IP54
- Factory colour
Black
no
- Length
449 mm
- Width
282 mm
- Depth
160 mm
- Nominal current
32 A
- Max. temperature
50 °C
- Min. temperature
-30 °C
Documents & Downloads
Datasheet
Datasheet 3773805 CTEK CHARGESTORM® CONNECTED 3e EV charging station Type 2 Mode 3 No. of ports 1 22 kW App
User & Safety Instructions
User & Safety Instructions 3773805 CTEK CHARGESTORM® CONNECTED 3e EV charging station Type 2 Mode 3 No. of ports 1 22 kW App
Description
22 kW True-certified EV charger with touch screen
The CC3e features a single 22 kW AC power outlet and a built-in 7-inch touch screen that displays charge status, pricing, power consumption, and dynamic QR codes for seamless, real-time ad hoc payments. It supports intelligent loading in accordance with ISO 15118, where AutoCharge is already available today and plug & charge and vehicle-to-grid (V2G) functions are planned in future software updates – so your investment is ready for the future of e-mobility.
This text is machine translated.
The CC3e features a single 22 kW AC power outlet and a built-in 7-inch touch screen that displays charge status, pricing, power consumption, and dynamic QR codes for seamless, real-time ad hoc payments. It supports intelligent loading in accordance with ISO 15118, where AutoCharge is already available today and plug & charge and vehicle-to-grid (V2G) functions are planned in future software updates – so your investment is ready for the future of e-mobility.
This text is machine translated.
Features
- •Compliant with the German calibration law for the measurement and settlement in accordance with the calibration law for the public charging of electric vehicles
- • Power and network loop-through (daisy chain)
- • To reset the fault current detection by disconnecting the charging cable
- • View real-time prices and energy data on a 7-inch touch screen
- • Manipulation detection and monitoring of unauthorized access to the charging station via the back end.
- • Enable secure payments via QR code
- • Scalable, dynamic load balancing for up to 1000 load points
- • Wi-Fi hotspot for easy start-up
- • Vehicle authentication: ISO 15118 / AutoCharge
- • Hardware prepared for Plug & Charge and V2G
- • Control of charging power via EMS via Modbus/TCP
- • Cybersecurity: Compliant with EN 18031
- • Excellent for reliable operation
