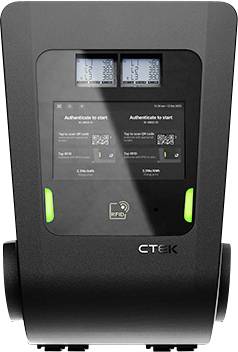

CTEK CHARGESTORM® CONNECTED 3e EV charging station Type 2 No. of ports 2 22 kW
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CTEK CONNECTED 3E
- Easy-to-use, built-in 7-inch touchscreen with live loading, cost transparency, and dynamic QR code payments
- Two 22 kW AC ports allow two vehicles to be charged simultaneously, maximizing throughput
- Cyberproof, ISO 15118-compliant platform with AutoCharge function and Plug & Charge hardware support
Technical specifications
- Product type
EV charging station
- Charger connectors
Type 2
- No. of ports
2
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
400 V
IP54
- Factory colour
Black
no
- Length
449 mm
- Width
282 mm
- Height
160 mm
- Weight
11 kg
- Nominal current
32 A
- Max. temperature
50 °C
- Min. temperature
-30 °C
Documents & Downloads
Datasheet
Datasheet 3773806 CTEK CHARGESTORM® CONNECTED 3e EV charging station Type 2 No. of ports 2 22 kW
User & Safety Instructions
User & Safety Instructions 3773806 CTEK CHARGESTORM® CONNECTED 3e EV charging station Type 2 No. of ports 2 22 kW
Description
2x 22 kW Certifying EV-battery charger with touch screen
The CC3e features two 22 kW AC ports and a built-in 7-inch touchscreen that displays real-time charging, pricing, power consumption, and dynamic QR codes for seamless ad hoc payments. It supports intelligent loading in accordance with ISO 15118, where AutoCharge is already available today and plug & charge and vehicle-to-grid (V2G) functions are planned in future software updates – so your investment is ready for the future of e-mobility.
This text is machine translated.
The CC3e features two 22 kW AC ports and a built-in 7-inch touchscreen that displays real-time charging, pricing, power consumption, and dynamic QR codes for seamless ad hoc payments. It supports intelligent loading in accordance with ISO 15118, where AutoCharge is already available today and plug & charge and vehicle-to-grid (V2G) functions are planned in future software updates – so your investment is ready for the future of e-mobility.
This text is machine translated.
Features
- Conforms to the German calibration regulations for legally compliant measurement and billing in public EV-loading
- Series connection of power and network
- Reset to ground by pulling the charging cable
- Real-time pricing and power data on 7-inch touchscreen
- Manipulation detection, monitoring of unauthorized access to the charging station via the back end.
- Secure QR code payments
- Scalable, dynamic load balancing, up to 1000 load points
- WLAN Hotspot for simple start-up
- Vehicle authentication: ISO 15118/AutoCharge
- Plug & Charge and V2G hardware-enabled
- EMS charging power control via Modbus/TCP
- Cybersecurity: EN 18031 compliant
- Excellent for reliable operation
