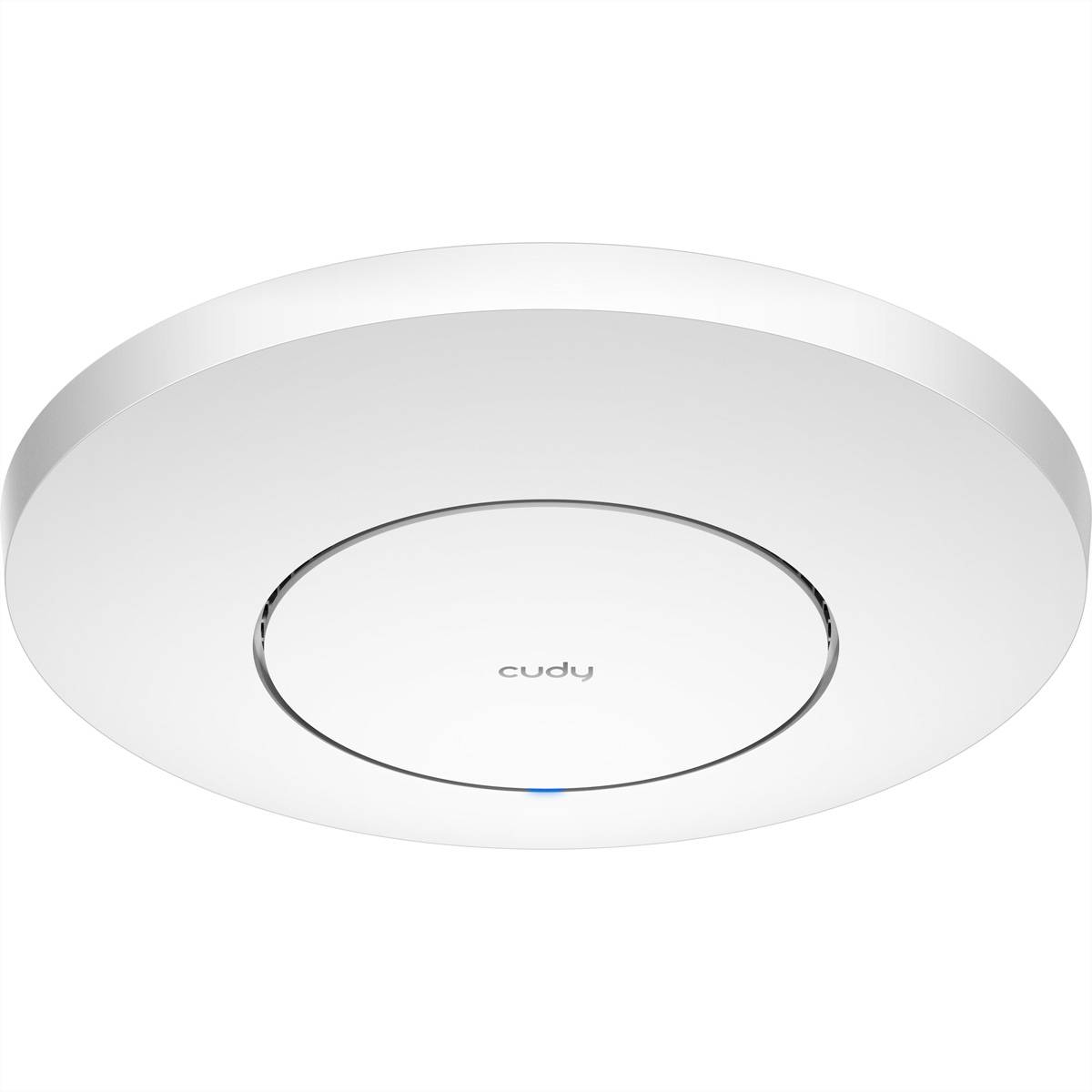

Cudy AC1300 1167 Mbit/s white Power over Ethernet (PoE)

Highlights & Details

2.4 GHz 300 Mbit/s
5 GHz 867 Mbit/s
Maximum data transfer rate of 1167 Mbps
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
WPA, WPA2, WPA2
Power over Ethernet (PoE)
Number of antennas: 4 internal

Technical specifications

Maximum data transfer rate of 1167 Mbit/s.
Maximum data transfer rate (2.4 GHz): 300 Mbit/s.
Maximum data transfer rate (5 GHz): 867 Mbit/s.

Product type: Wi-Fi access point

Type: AC1300 White Power over Ethernet PoE - Ethernet

Safety: WPA
WPA2
WPA2

Width: 232 mm

Height: 232 mm

Depth: 57.1 mm

Bluetooth: No

Factory colour: White

Max. output current: 1 A

Output voltage: 12 V

No. of antennas: 4 x

10/100/1000 Mbps ports: 1 x

Power supply (details): 100 - 240 V

CPU speed: 880 MHz

: 128 MB

Software included: Cudy software

Weight: 395.6 g

UKCA: yes

Operating temperature (T-T): -10 - 65 °C

Storage relative humidity (H-H): 5 - 90 %

Quantity per pack: 1 Stück(e)

2.4 GHz: yes

5 GHz: yes

Internal: no

PoE adapter included: no

Products per shipping (inner) case: 20 Stück(e)

DC-in jack: yes

Flow control support: yes

MIMO: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Band steering: yes

Web-based management: yes

Rate limiting: yes

DHCP client: yes

Reset button: yes

Quick start guide: yes

Parental control: yes

6 GHz: no

Full duplex: yes

Flash memory: 16 MB

IGMP snooping: yes

IP address filtering: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Syslog: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 1.51 kg

Built-in processor: yes

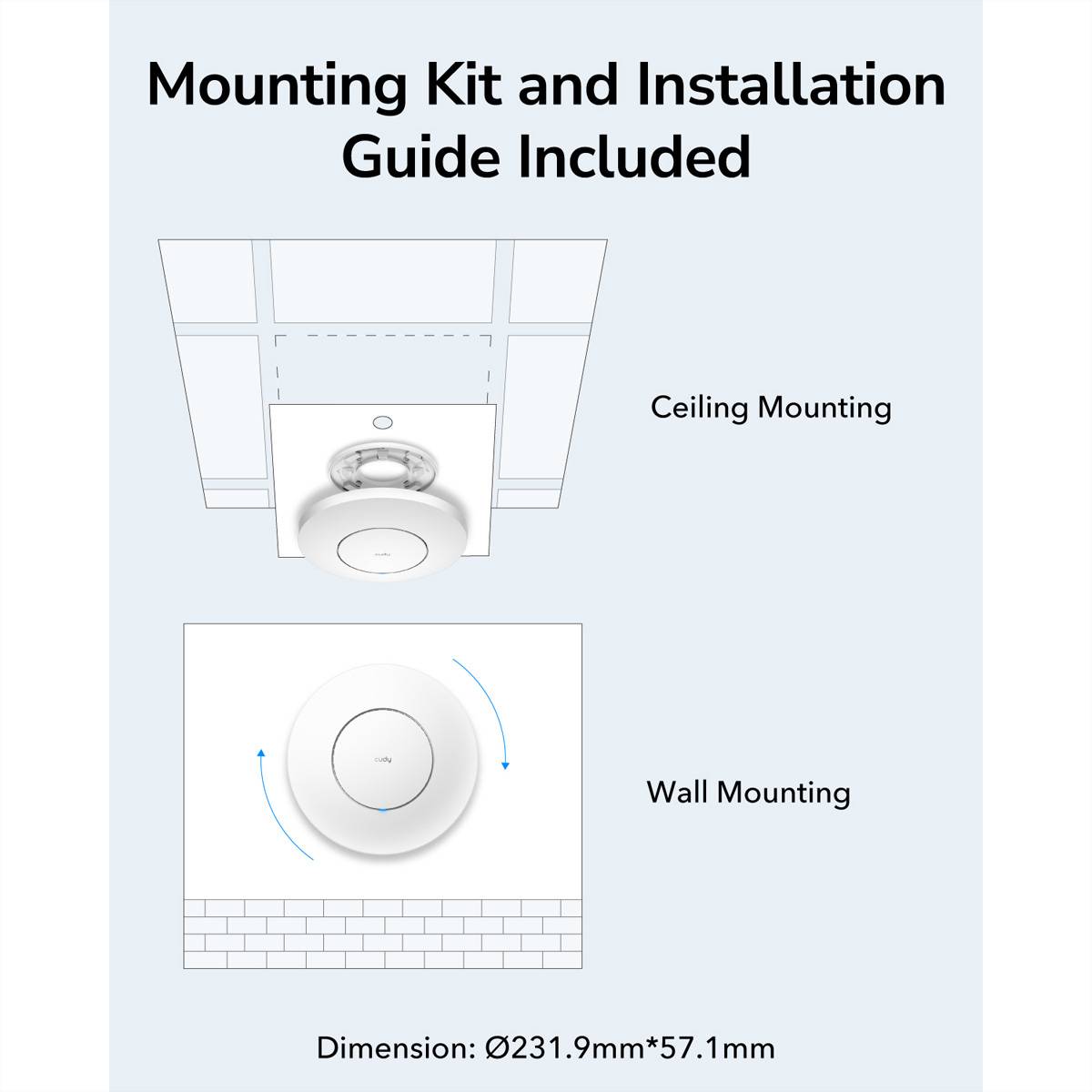

Mounting kit: yes

Power consumption (max): 11 W

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3798902 cudy AP1300 AC1300 White Power over Ethernet PoE - Ethernet Wi-Fi access point

User & Safety Instructions

User & Safety Instructions 3798902 cudy AP1300 AC1300 White Power over Ethernet PoE - Ethernet Wi-Fi access point

Description

A wall/ceiling-mounted WLAN AP for offices and classrooms.

This text is machine translated.

Features

4-Stream Dual-Band Wi-Fi 5
867 Mbit/s + 300 Mbit/s WLAN
1× shielded GbE PoE input
802.3at/AF, passive PoE, DC
100 connected devices
Covers 100 m²
Multi-AP management

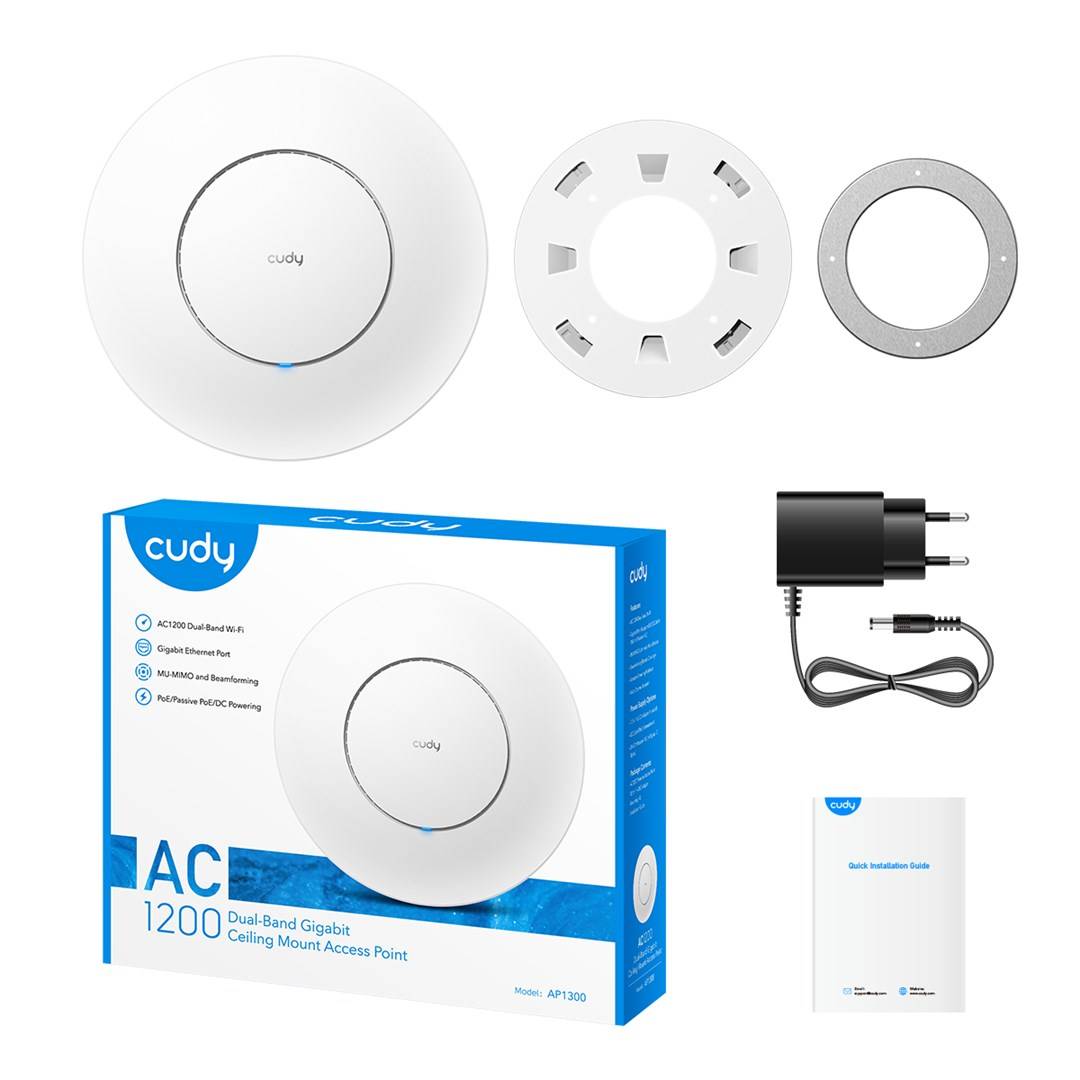

Scope of delivery

Access Point, AC adapter, mounting kit, installation manual
