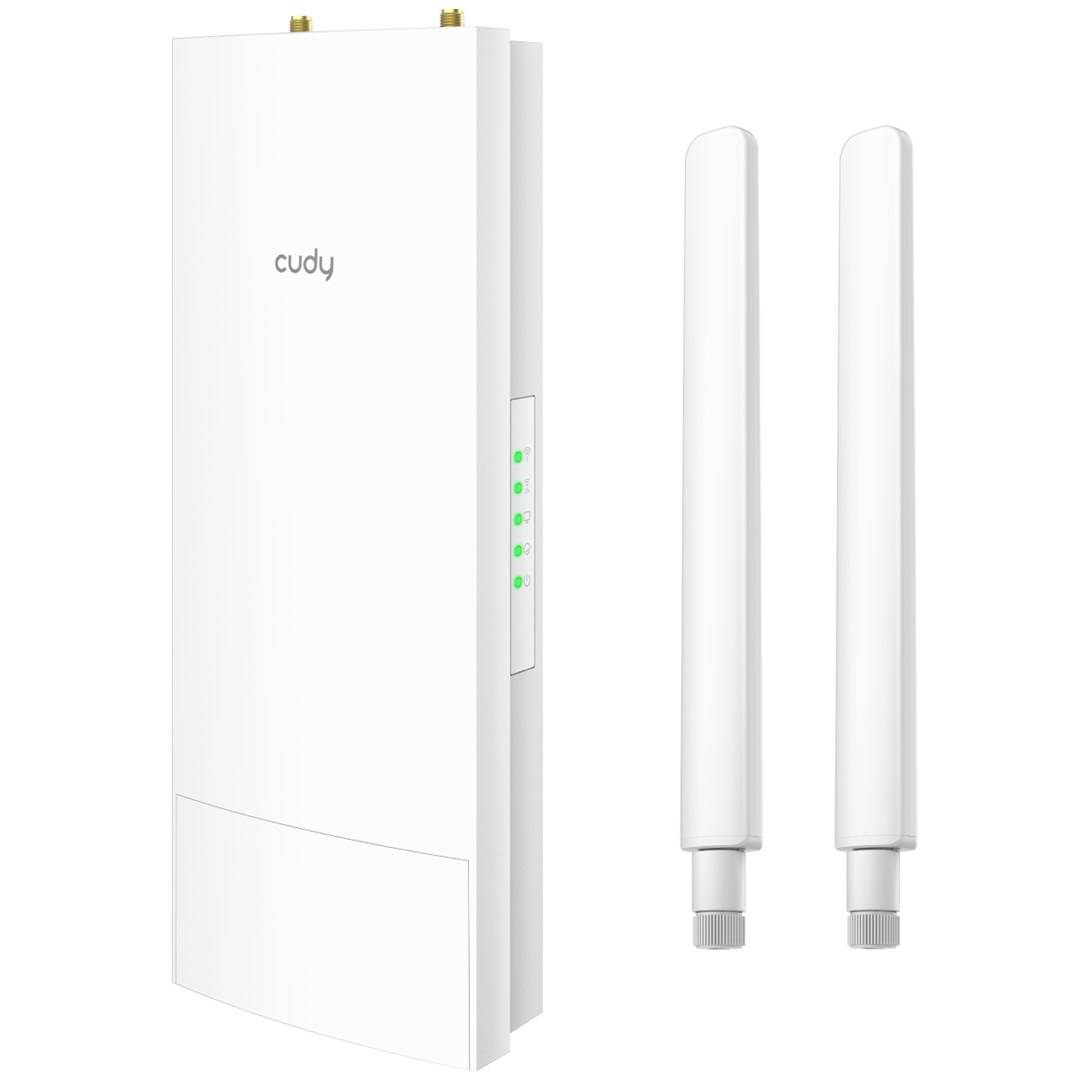

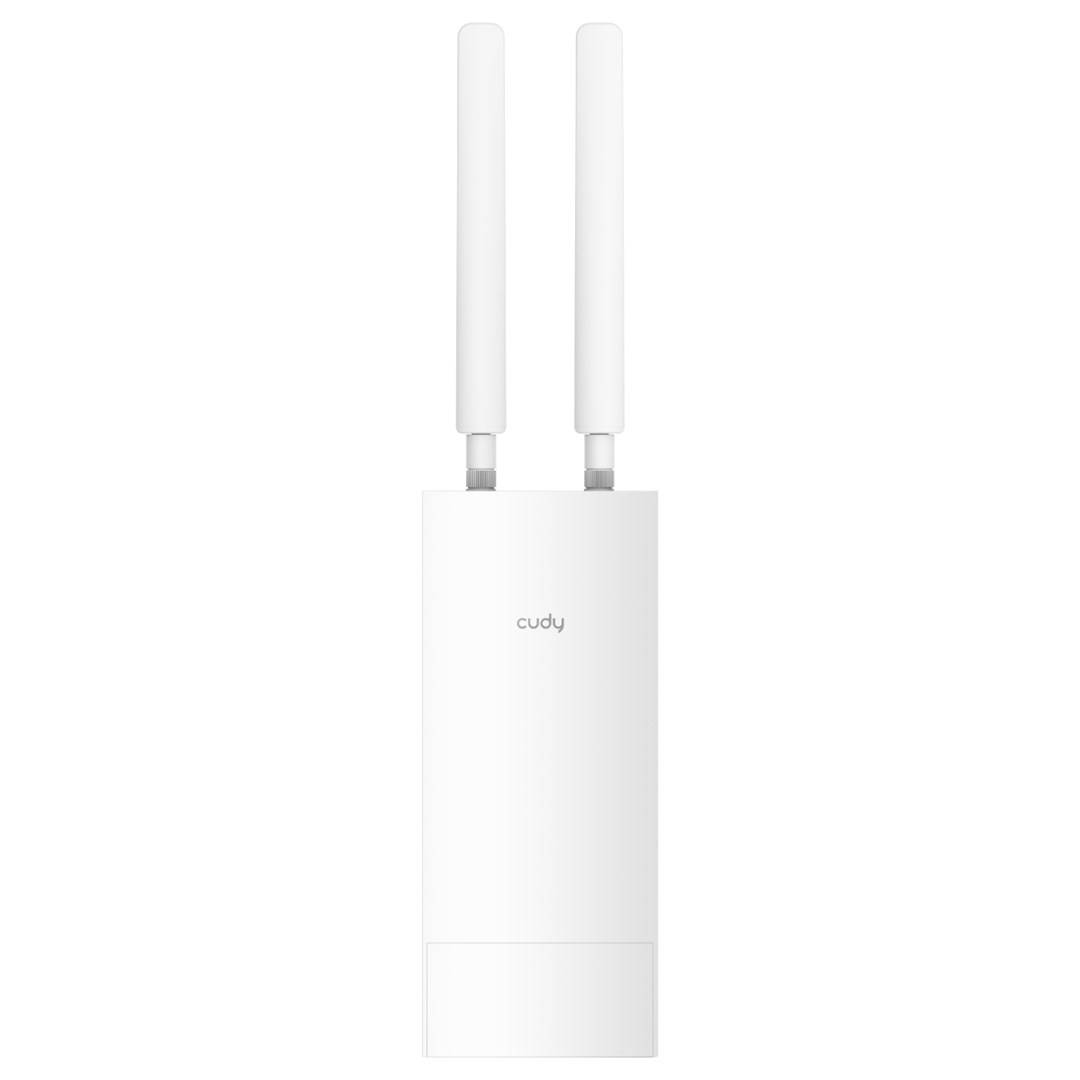

cudy AP3000 OUTDOOR WIRELESS ACCESS POINT CUDY AX3000 OUTDOOR WIFI6 Wi-Fi access point 3000 MBit/s 5 GHz, 2.4 GHz

Super-fast, super-efficient AX3000 Wi-Fi 6

Wi-Fi 6 with the highest channel width of 160 MHz and 1024 QAM modulation offers a total throughput of up to 3 Gbit/s. OFDMA and MU-MIMO work in the uplink plug-and-download direction to enable the connection of over 100 devices at minimum latency. (Maximum 512 devices)


High-power WLAN coverage with five PA

Fitted with five power amplifiers and a 3+2 antenna structure, this Access Point offers first-class capabilities to route its signal through physical obstacles.


Works in rain, thunderstorm, dust, heat and cold

The Access Point is protected by an IP65-certified casing and thus protected against rain and dust with a vertical installation. It also features 6 kV flash/surge protection and 8 kV ESD protection for increased reliability during thunderstorms. Its operating temperature range is between -40 °C and 70 °C.

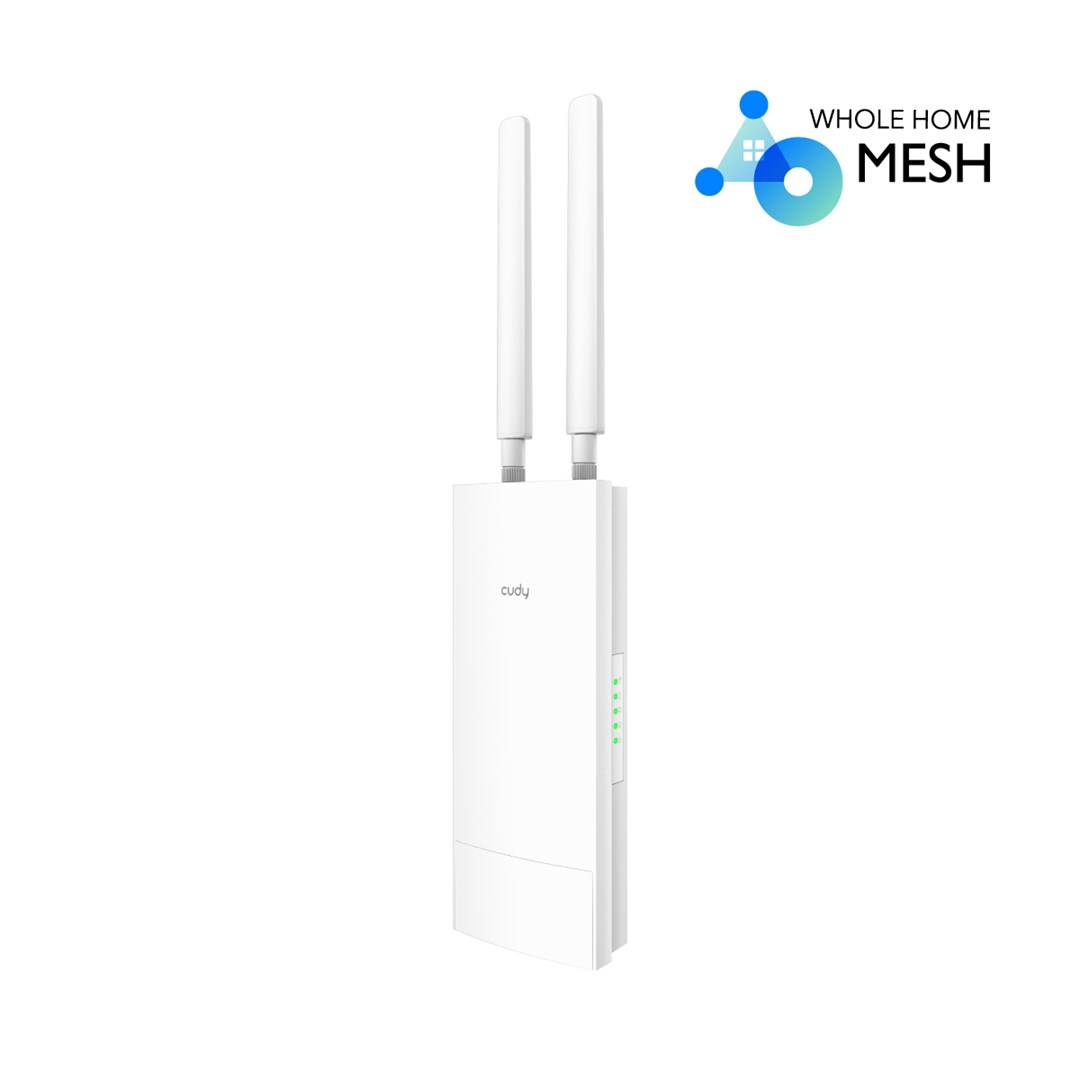

Mesh Networking



Seamless roaming for a smooth wireless experience

Enhance your visitors' Wi-Fi experience with a uniform WLAN name in your entire premises. Mesh technology allows you to enjoy uninterrupted roaming by automatically connecting your clients to the strongest WLAN node available, without any manual switchover.


Plug-and-play mesh installation



Easy plug-in and unplug for mesh setting

Connect the LAN port of the PoE adapter to a Cudy Mesh Access Point/Router/Mesh device/VPN router/AC to add the new Access Point to the mesh network. After the coupling you can disconnect it again from the mains or continue using the Ethernet connection.


The rest is left to adaptive routing.

Adaptive routing improves the ability of the system to capture the capacity used by each node. As soon as the original backhaul path becomes overloaded, the system automatically switches to a more efficient path.


Cabling and physical installation guide



Gigabit port with two PoE options

Supports two power methods –

802.3at PoE (maximum power 18 W, no load 5 W)
48-57 V passive PoE (adapter included in delivery, not waterproof)
If you want to simplify cabling, we recommend using a PoE switch that can power multiple devices at the same time. For more information, see Cudy PoE Switches.

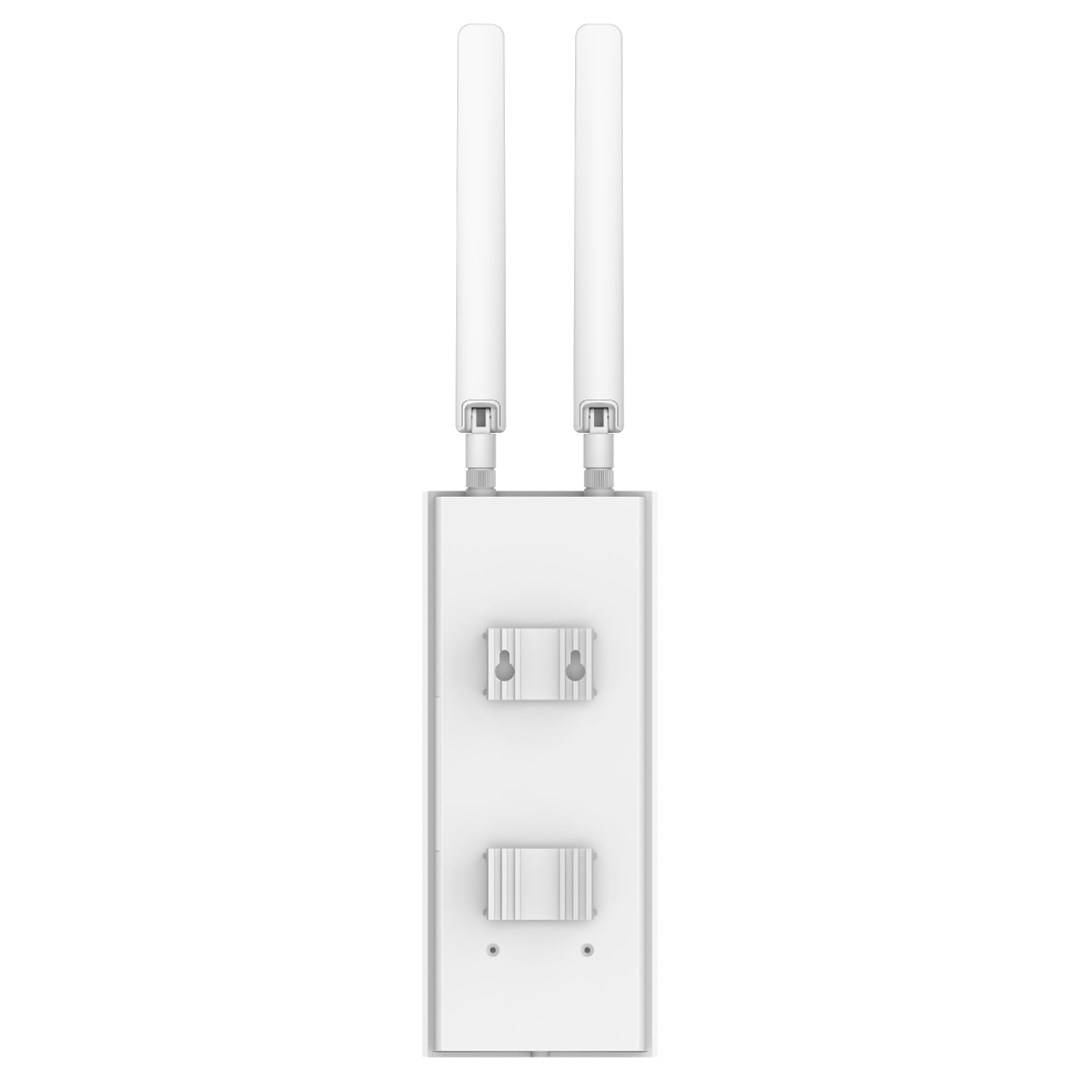

Mounting kit included

A mounting kit is included in the delivery and supports the following functions:

Wall mounting
Mast mounting


Centralized accounts payable

With the Cudy AP Controller (model: C200P) up to 200 access points can be managed easily. This enables efficient batch configuration and firmware updates via a unified interface.

This text is machine translated.
