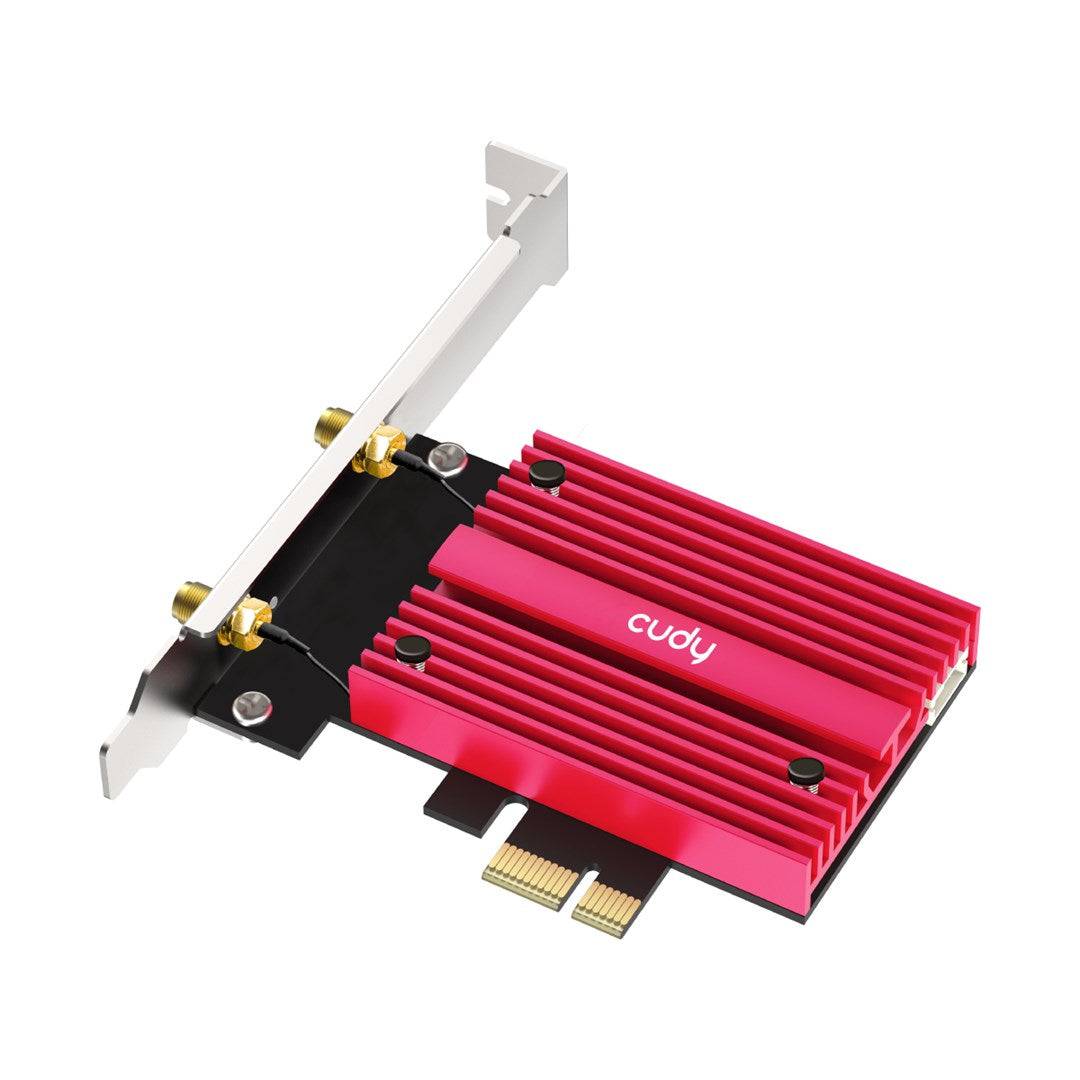

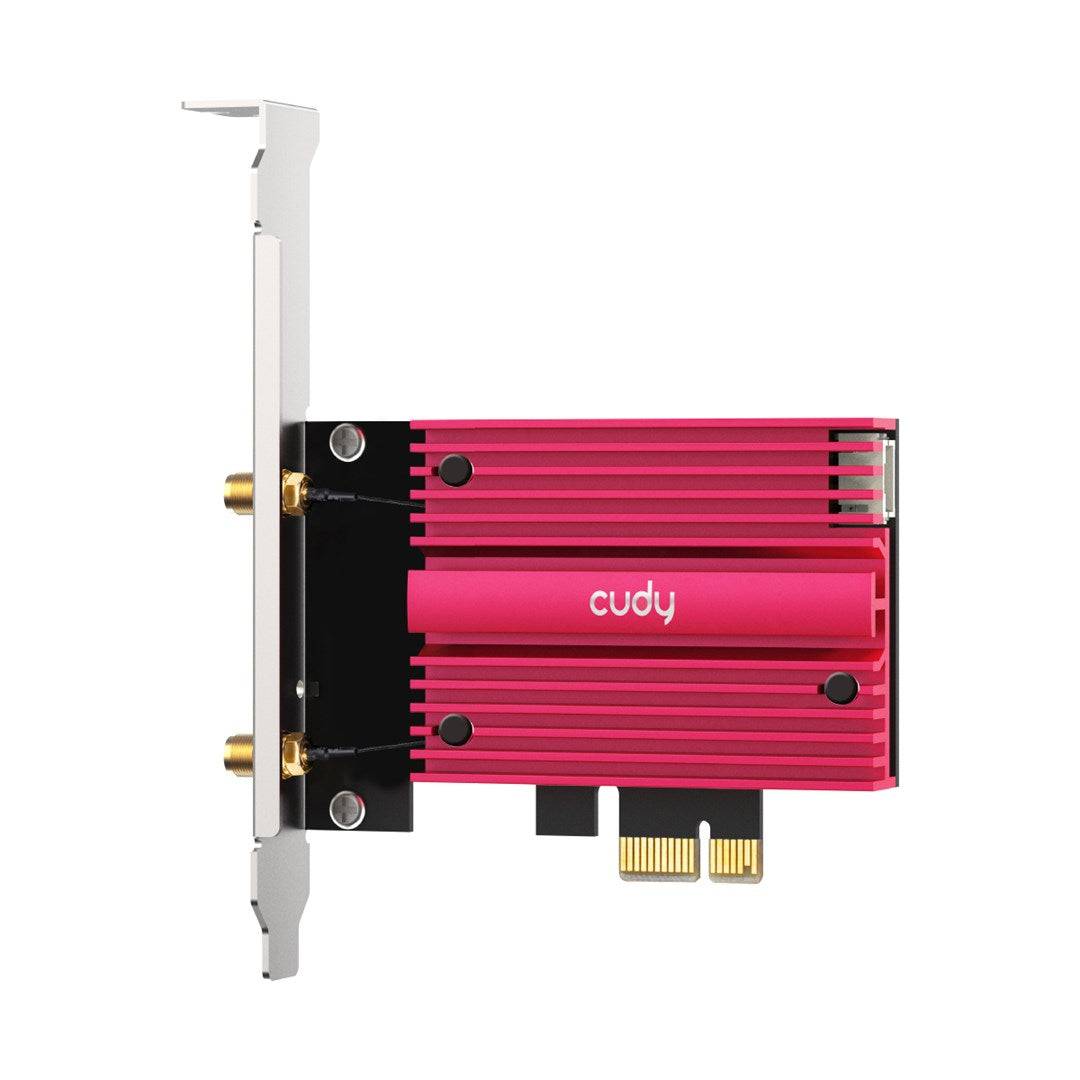

cudy BE9300 Wi-Fi 7 PCI Express Adapter WE9300S - PCI-Express - 5,8 Gbps PCI Express card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Cudy WE9300S Network card Built-in WLAN / Bluetooth 5765 Mbit/s.
- Cordless
- PCI Express WLAN / Bluetooth
- 5765 Mbit/s
- WLAN Tri-Band (2.4 GHz/5 GHz/6 GHz) Bluetooth 5.4
- Built-in component for: PC
Technical specifications
- Host Interface: PCI Express
- Interface WLAN/Bluetooth
- Maximum data transfer rate of 5765 Mbit/s.
- WLAN band: Tri-band (2.4 GHz/5 GHz/6 GHz)
- Product type
PCI Express card
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Multicolour
- Depth
98.4 mm
- Height
21.5 mm
- Width
120.8 mm
- Gain
4.21 dBi
- Safety
WPA
WPA-PSK
WPA2
WPA2
- Transfer type
Wireless
- Range of use
PC
- Weight
0.414
- Wi-Fi
Yes
- UKCA
yes
- Operating temperature (T-T)
0 - 70 °C
- Storage relative humidity (H-H)
5 - 95 %
- Internal
yes
- Quick installation guide
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Mounting brackets included
yes
Documents & Downloads
Datasheet
Datasheet 3798949 cudy BE9300 Wi-Fi 7 PCI Express Adapter WE9300S - PCI-Express - 5,8 Gbps PCI Express card
User & Safety Instructions
User & Safety Instructions 3798949 cudy BE9300 Wi-Fi 7 PCI Express Adapter WE9300S - PCI-Express - 5,8 Gbps PCI Express card
Description
Lightning-fast WLAN, which makes Ethernet competition
Enjoy an unbelievably stable multi-gigabit connection, which ensures a seamless performance by bundling several available frequency bands. To do this, both your WLAN router and your desktop system must support the MLO function. Dual band aggregation is available (6 + 5 GHz, 6 + 2.4 GHz or 5 + 2.4 GHz).
More reliable Bluetooth 5.4
Improve the energy efficiency and increase the reliability with integrated Bluetooth 5.4. Take advantage of longer battery life for your Bluetooth keyboards, mice, and headphones, as well as lower latency and less charging.

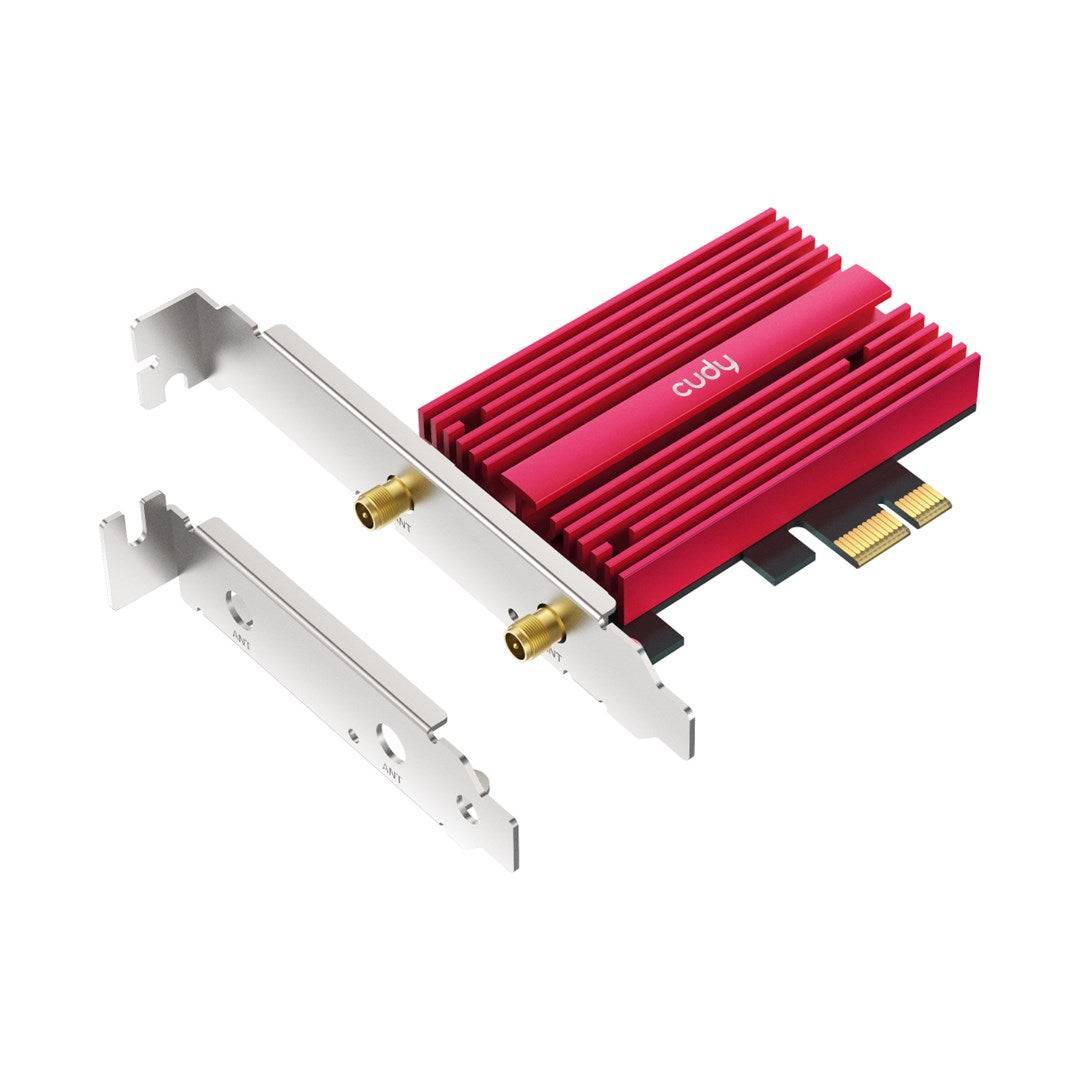

Standard and flat profile holders are included in delivery
Suitable for standard tower PCs as well as for low-profile HTPCs. Install the antennas and align them perpendicular to your router for optimal signal quality.
Compatible with common motherboards
One PCI-E slot (1x, 4x, 8x or 16x) on the motherboard is required for WLAN and power supply. The Bluetooth function requires a 9-pin USB connection on the mainboard.
This text is machine translated.
Features
- Tri-band Wi-Fi 7
- 5.7 Gbps + 2.8 Gbps + 688 Mbps WiFi
- Bluetooth 5.4
- Intel BE200 module

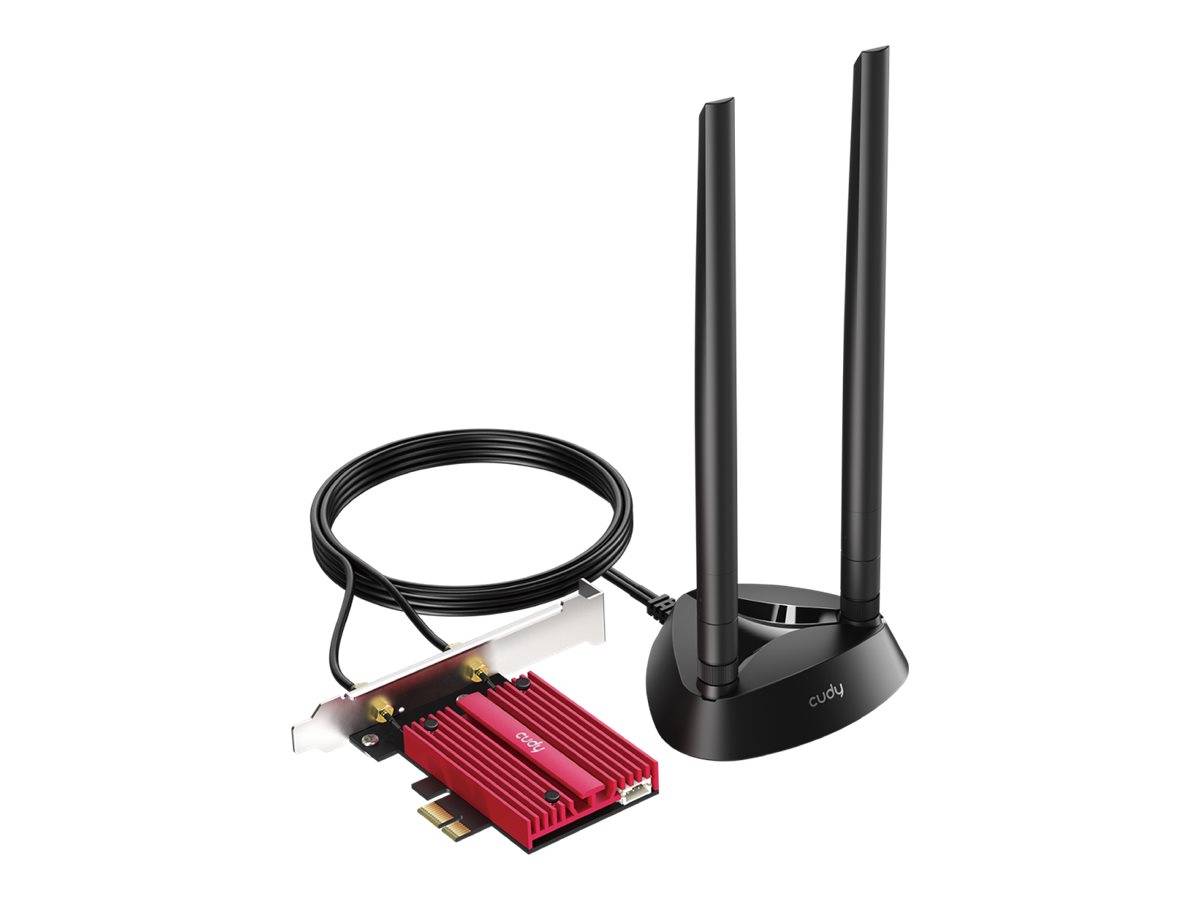

- Removable antennas on magnetic base
- Works on Intel-platform Windows 11 PC
Scope of delivery
- WE9300S, Removable Antennas, Magnetic Antenna Base, Bluetooth to 9 PIN USB Cable, Flat Mount, Installation guide
