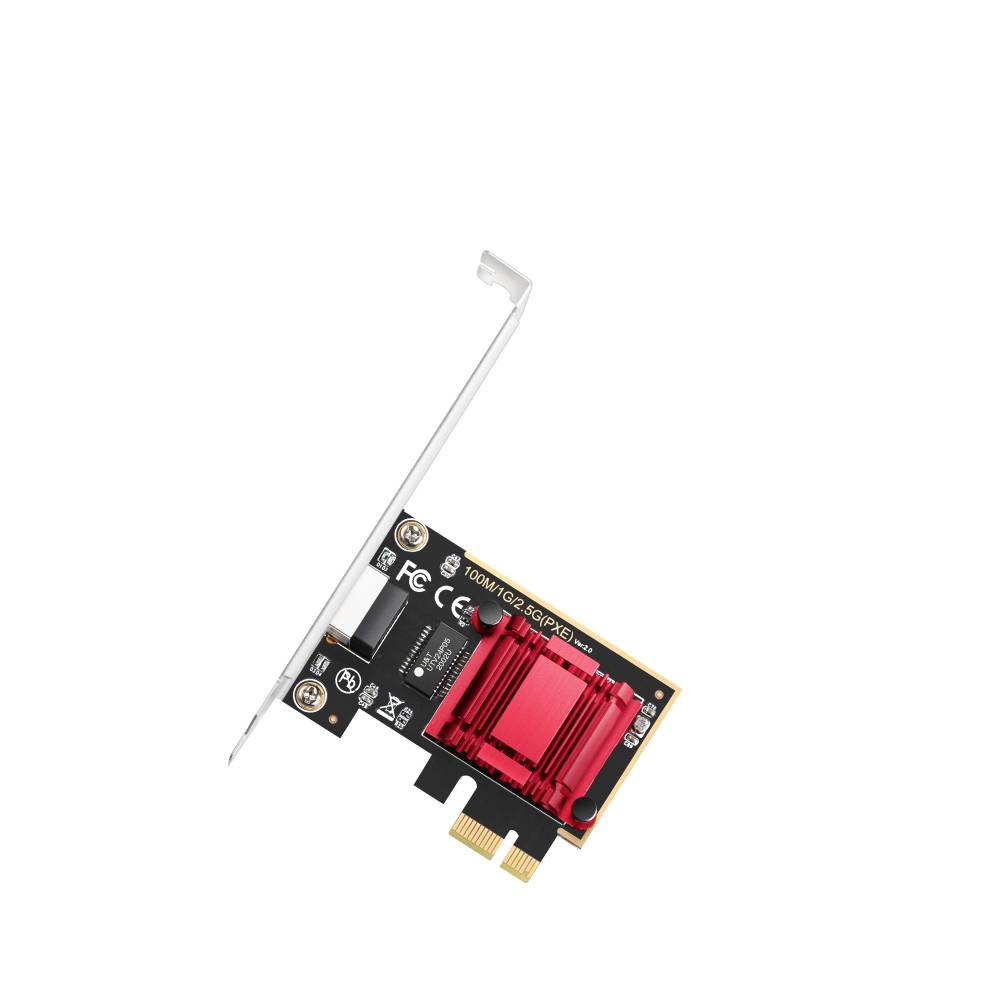

cudy CUDY PE25 2.5G PCI Express Adapter PCI Express card
EAN:
Part number:
Item no:
Highlights & Details
Cudy PE25 Network card In-built Ethernet 2500 Mbit/s
- Cable connected
- PCI Express Ethernet
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2500 Mbit/s 2.5X Base-T
- Built-in component for: PC / Server
Technical specifications
- Host Interface: PCI Express
- Interface: Ethernet
- Maximum data transfer rate of 2500 Mbit/s.
- Component for: PC / Server
- Product type
PCI Express card
- 10/100/1000 Mbps ports
1 x
- Depth
56 mm
- Height
15 mm
- Width
64 mm
- Transfer type
Corded
- Weight
37.2 g
- UKCA
yes
- Operating temperature (T-T)
0 - 70 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
5 - 90 %
- Low-profile bracket
yes
- Resource CD
yes
- Internal
yes
- Wake-on-LAN ready
yes
- Flow control support
yes
- Quick installation guide
yes
- Mean time between failures (MTBF)
376212 h
- Auto MDIX IEEE
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Mounting brackets included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798911 cudy CUDY PE25 2.5G PCI Express Adapter PCI Express card
Description
Lightning-fast 2.5G network technology for peak performance
Experience ultra-fast 2.5G speeds for smooth downloads, server hosting and fluid media processing on your NAS. PE25 supports automatic negotiation of 10/100/1000/2.5G speeds, providing reliable and powerful connections for demanding tasks.
Upgrade to the lightning fast 2.5G network with one step
Requires one PCI-E x4/x8/x16 slot
Automatically saves energy
The EEE-function (Energy-Efficient Energy) places the adapter in a power-saving mode automatically, if little or no data traffic takes place.
Flow control
Prevents packet loss and data failure at 2.5 Gbps transmission rates, WAS is critical to maintaining reliability in server operations and monitoring systems.
Wake on LAN
Allows the user to remotely control their PC or server via the network using Wake on LAN.
Standard-/flat profile holder
Suitable for standard tower PCs, low profile servers and rack server installations.
This text is machine translated.
Features
- 10/100/1000/2500 Mbit/s Ethernet port
- Wake on LAN, flow control
- Standard-/flat profile holder
- Windows, Linux, etc.
