Highlights & Details

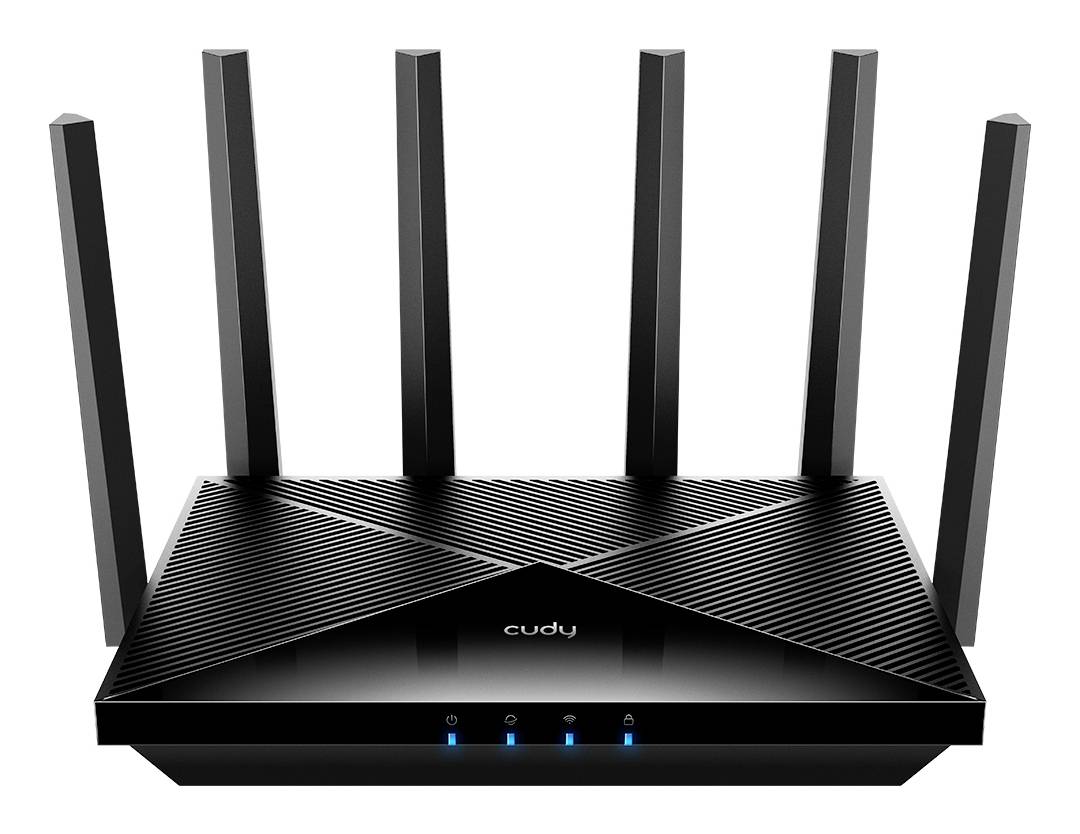

Cudy WR6500H WLAN router 2.5 Gigabit Ethernet Dual band (2.4 GHz/5 GHz), black
- Tablet-router black
- Dual band (2.4 GHz/5 GHz) Wi-Fi 7 (802.11be) 5765 Mbit/s.
- 2.5 Gigabit Ethernet
- Ethernet WAN
- Number of Ethernet LAN connections (RJ-45): 4
- Web-based management Quality of Service (QoS) support
- MIMO MU-MIMO TECHNOLOGY
Technical specifications
- Wi-Fi band Dual (2.4 GHz/5 GHz)
- WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
- Product type: Tabletop router
- Product type
Router
- Type
CUDY
- WPS compatible
Yes
- No. of antennas
6 x
- 10/100/1000 Mbps ports
4 x
- Width
253 mm
- Height
48.2 mm
- Depth
152.5 mm
- Weight
580.4 g
- Factory colour
Black
- Processor cores (No.)
4 x
- Memory techology
DDR4
- Max. output current
1.5 A
- Output voltage
12 V
- Gain
5.5 dBi
- Power supply (details)
100 - 240 V
- CPU speed
2000 MHz
512 MB
- Safety
WPA
WPA2
WPA2
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Ethernet LAN
yes
- Antenna included
yes
- Storage relative humidity (H-H)
5 - 95 %
- Firewall
yes
- URL filtering
yes
- Universal Plug and Play (UPnP)
yes
- Wall mountable
yes
- Dynamic DNS (DDNS)
yes
- DC-in jack
yes
- Wake-on-LAN ready
yes
- USB port
no
- Filtering
yes
- DSL WAN
no
- Ethernet WAN
yes
- SIM card slot
no
- 3G/4G USB modem compatibility
no
- WLAN data transfer rate (max)
5765 Mbit/s
- WLAN data transfer rate (first band)
688 Mbit/s
- WLAN data transfer rate (second band)
5765 Mbit/s
- MIMO
yes
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Web-based management
yes
- DHCP client
yes
- DHCP server
yes
- Reset button
yes
- Port triggering
yes
- Number of guest networks (5 GHz)
1
- Number of guest networks (2.4 GHz)
1
- MU-MIMO technology
yes
- Quick installation guide
yes
- Flash memory
128 MB
- IGMP snooping
yes
- DMZ support
yes
- IP address filtering
yes
- Port forwarding
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
1.18 kg
- Built-in processor
yes
- Detachable antenna(s)
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798936 cudy CUDY Router
Conformity certificate
Conformity certificate 3798936 cudy CUDY Router
Description
Powerful processor Extremely responsive.
Experience lightning-fast response times and smooth game play while surfing, streaming and playing on hundreds of devices. The powerful quad-core processor and the generous 512 MB RAM ensure optimum performance.
Extended OFDMA
Lightning-fast response for several devices
With the more intelligent Multi-RU and Puncturing spectrum re-use technology the WR6500 significantly increases interference immunity, optimizes spectrum use and ensures lower latency for games, calls and web browsing on multiple devices.
Optimum WLAN range for additional rooms
The high performance antennas with beamforming technology offer stronger, more focused Wi-Fi signals to the client devices, thereby providing higher speeds and greater stability throughout your home or office.
Seamless WLAN in the whole house
A network, no need to switch. Easy setup via WLAN or automatic cable connection. Seamless switching for optimum WLAN coverage in the whole house.
Childproof
Set Wi-Fi schedules and block inappropriate content to protect your family online. Easily manage multiple devices with custom profiles.
This text is machine translated.
Experience lightning-fast response times and smooth game play while surfing, streaming and playing on hundreds of devices. The powerful quad-core processor and the generous 512 MB RAM ensure optimum performance.
Extended OFDMA
Lightning-fast response for several devices
With the more intelligent Multi-RU and Puncturing spectrum re-use technology the WR6500 significantly increases interference immunity, optimizes spectrum use and ensures lower latency for games, calls and web browsing on multiple devices.
Optimum WLAN range for additional rooms
The high performance antennas with beamforming technology offer stronger, more focused Wi-Fi signals to the client devices, thereby providing higher speeds and greater stability throughout your home or office.
Seamless WLAN in the whole house
A network, no need to switch. Easy setup via WLAN or automatic cable connection. Seamless switching for optimum WLAN coverage in the whole house.
Childproof
Set Wi-Fi schedules and block inappropriate content to protect your family online. Easily manage multiple devices with custom profiles.
This text is machine translated.
Features
- Broadcom 2 GHz quad-core CPU
- 6-Stream Dual band WLAN 7
- 5765 Mbit/s + 688 Mbit/s WLAN
- 1× 2.5GBE and 4× GbE
- 200 connected devices
- VPN server and client
- Covers 140 m² (1,500 ft²)
- Cudy-APP, Cloud-control
