Highlights & Details

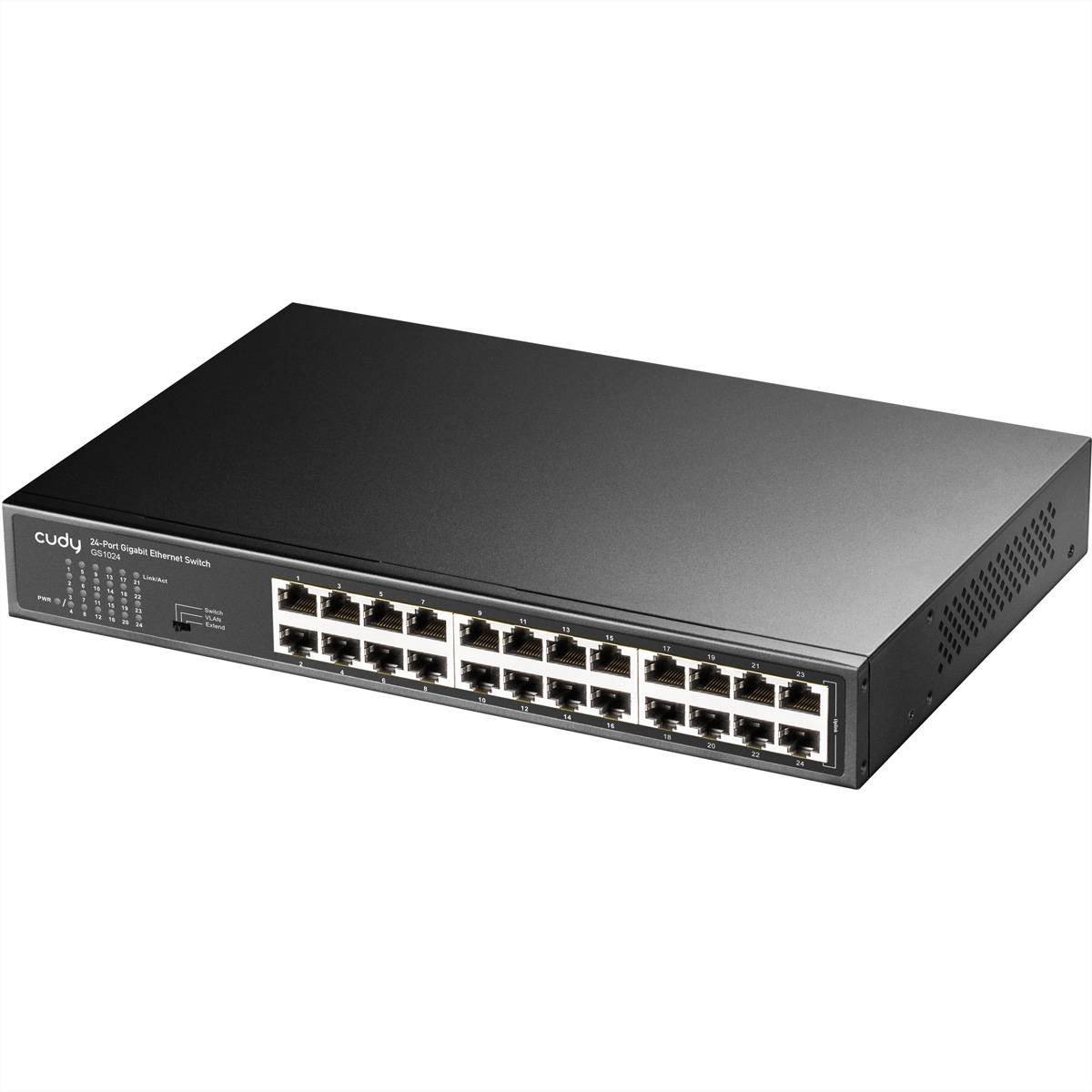

Cudy GS1024 Network Switch Unmanaged Gigabit Ethernet (10/100/1000), black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 24
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T.
MAC address table: 8192 entries Routing/switching capacity: 48 Gb/s.
Rack installation
AC power supply included

Technical specifications

Energy source: AC

Product type: Network switch

Ethernet ports: 24

10/100/1000 Mbps ports: 24 x

Weight: 1.06 kg

Width: 182 mm

Height: 44 mm

Depth: 270 mm

Type: Cudy GS1024 switch di rete Gigabit Ethernet (10/100/1000) Nero

Factory colour: Black

Cable length: 0 cm

Keyboard layout: German, QWERTZ

Power supply (details): 90 - 260 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 0.5 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 48 Gbit/s

Jumbo frames: 15000

Flow control support: yes

Jumbo frames support: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 24

Manual: yes

Rack mounting: yes

MAC address table: 8192 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 35.712 Mpps

Power consumption (max): 11 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798925 CUDY GS1024 24-port gigabit metal switch

User & Safety Instructions

User & Safety Instructions 3798925 CUDY GS1024 24-port gigabit metal switch

Description

Standard/VLAN/Extended Multi mode

VLAN mode

Protect your clients from client-side hacking attacks. In VLAN mode, downlink ports 1–22 can only communicate with the uplink ports.

Advanced mode

The transfer distance of ports 1-22 is extended to a maximum of 250 meters and the installation is simplified. (The speed of these ports is limited to 10 Mbps.)

DSCP/802.1p QoS

The packages are provided with DSCP headers and those with higher priority are forwarded first.

IGMP monitoring

Identifies the multicast groups associated with the switch and sends data to the exact ports instead of distributing it.

Avoid loops

Blocks the ports automatically when a loop is detected in the network, preventing downtime due to misuse.

Cooling without fans

Low heat development and fan-less design are especially suitable for noise-sensitive environments.

Installation and dimensions

Mounting brackets included in the delivery

Standard 1HE rack mounting

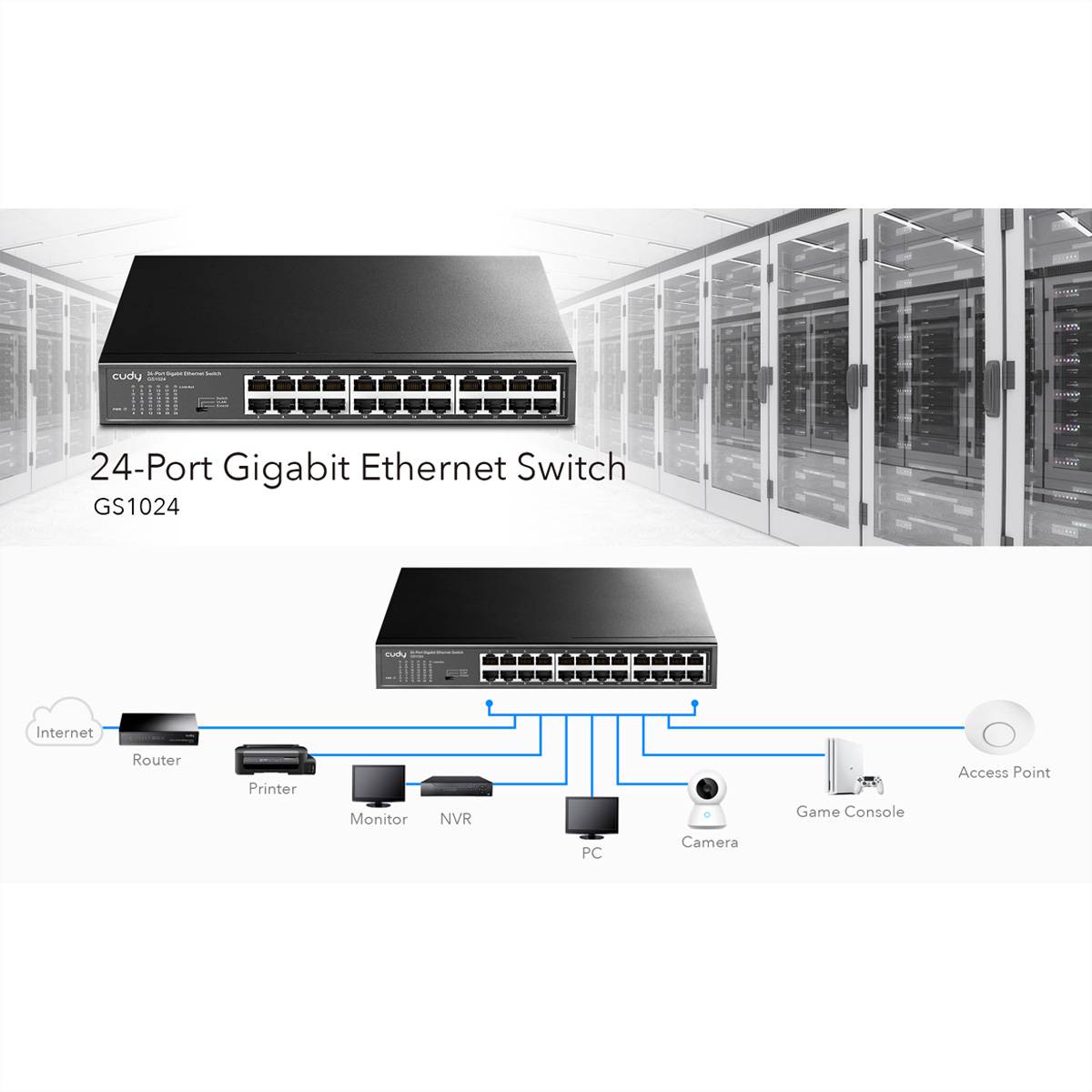

Versatile scenarios

Office network

Wi-Fi in the shopping center

Monitoring

ISP FTTB
